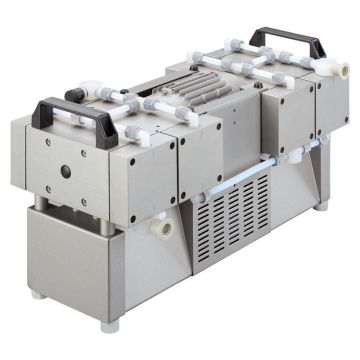

Welch High Capacity 7.8 CFM 56 Torr Diaphragm Pump 2067

$5,010.48

Welch Chemical Duty vacuum pumps use dry, oil-free membrane (diaphragm) technology to deliver faster pumping dynamics that support filtration, evaporation, drying, degassing, impregnation, and other rough vacuum applications. Note: Government regulations require Welch to obtain an end-user certificate this product if either used or exported outside of the United States. The Diaphragm pumps are intended for: Pumping and compressing neutral and aggressive gases and vapours.

Product total
Options total
Grand total
SKU: 2067B Category: Brand:

Description

Welch Chemical Duty vacuum pumps use dry, oil-free membrane (diaphragm) technology to deliver faster pumping dynamics that support filtration, evaporation, drying, degassing, impregnation, and other rough vacuum applications.

Note: Government regulations require Welch to obtain an end-user certificate this product if either used or exported outside of the United States.



The Diaphragm pumps are intended for:

  • Pumping and compressing neutral and aggressive gases and vapours.
  • Generating a vacuum down to an ultimate pressure 2 mbar.
  • Use in physical and chemical laboratories in trade and industry.
  • Use for vacuum filtration, vacuum distillation and vacuum drying, and other vacuum technology applications.







Specifications

Specification



ItemWelch High Capacity Diaphragm Pump 2067
Free Air Displacement @ 60 Hz, cfm (L/min)7.8 (221)
Ultimate Pressure, torr
56
Motor Power, HP (kW) at 60 Hz0.5/0.6 (0.37/0.44)
Inlet (Exhaust) Connection Thread NPTNW16 - 1/4" NPT
Tubing Needed, I.D. in. (mm)Hose Connector Available
Weight,s (kg)72.3 (32.8)
Dimensions, LxWxH, in (mm)21x11x12 (530x280x310)
