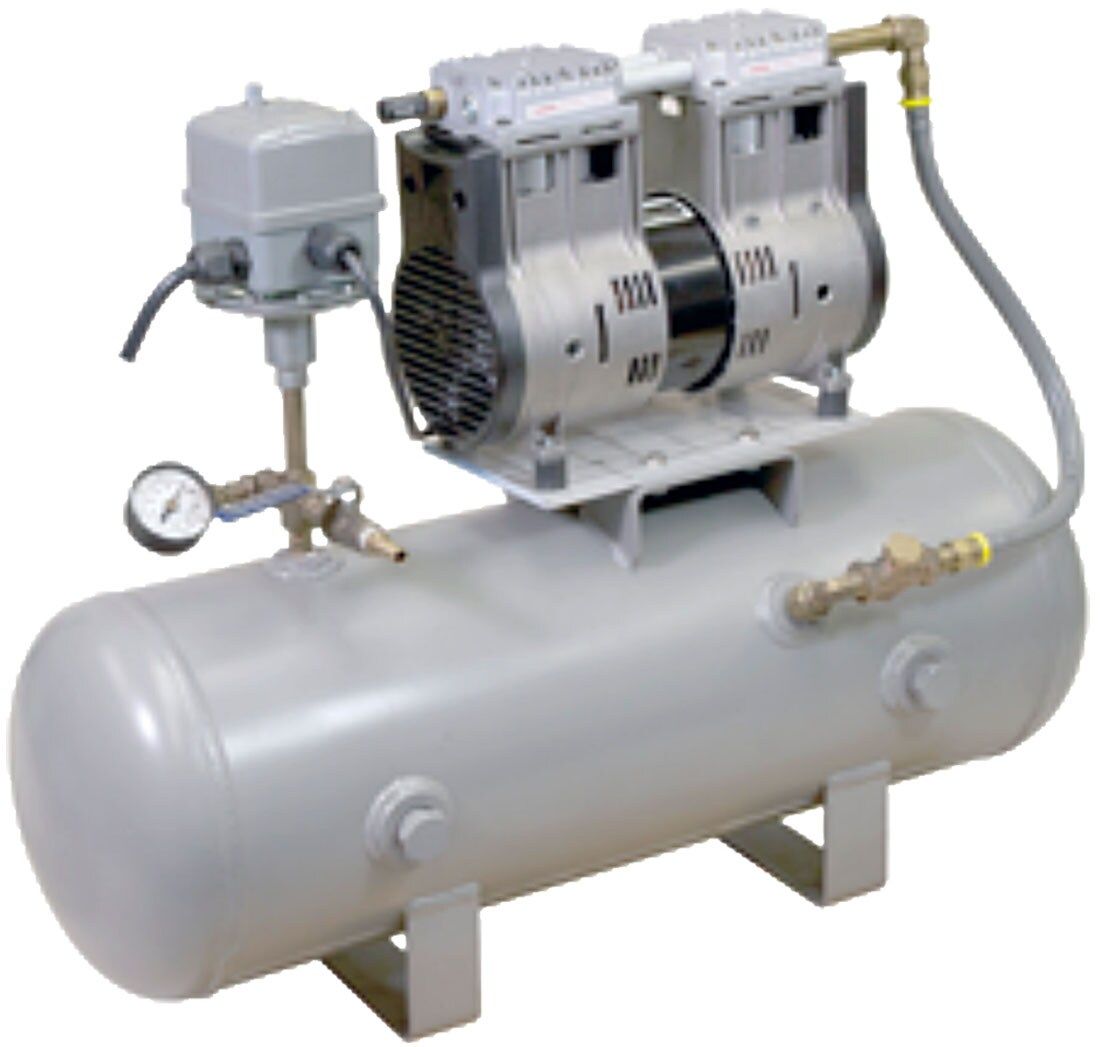

Welch 10 Gal Tank mounted 7.1 cfm 201 L/min WOB-L 8150B-30

Welch 10 Gal Tank mounted 7.1 cfm 201 L/min WOB-L 8150B-30

$4,888.00

*Note: Standard-duty dry pumps are not recommended for pumping organic, acidic, or basic vapors. Use Welch ProBoost in conjunction with a backing pump like the CRVpro to get deeper vacuum and higher flow. High Vacuum to 10⁻⁵ torr Use with high vacuum and Schlenk lines Employs air cooled diffusion pump Easy Attachment to backing pump Welch ProBoost is Features: Vacuum reservoir for instant vacuum availability. Includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shutoff valve.

Product total
Options total
Grand total
SKU: 8150B Category: Brand:

Description

*Note: Standard-duty dry pumps are not recommended for pumping organic, acidic, or basic vapors.



Use Welch ProBoost in conjunction with a backing pump like the CRVpro to get deeper vacuum and higher flow. High Vacuum to 10⁻⁵ torr Use with high vacuum and Schlenk lines Employs air cooled diffusion pump Easy Attachment to backing pump Welch ProBoost is



Features:

  • Vacuum reservoir for instant vacuum availability.
  • Includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shutoff valve.
  • Wob-L pump is tolerant of line moisture.
  • Three position switch allows for on/off continuous duty.
  • Available in 115V/60HZ.
  • Free air displacement @60Hz: 7.1 cfm (201 L/min)
  • Ultimate Pressure: 60 torr (80 mbar)





Specifications

Specification



Weight

64

Dimensions, LxWxH, in (mm)

813x432x681
