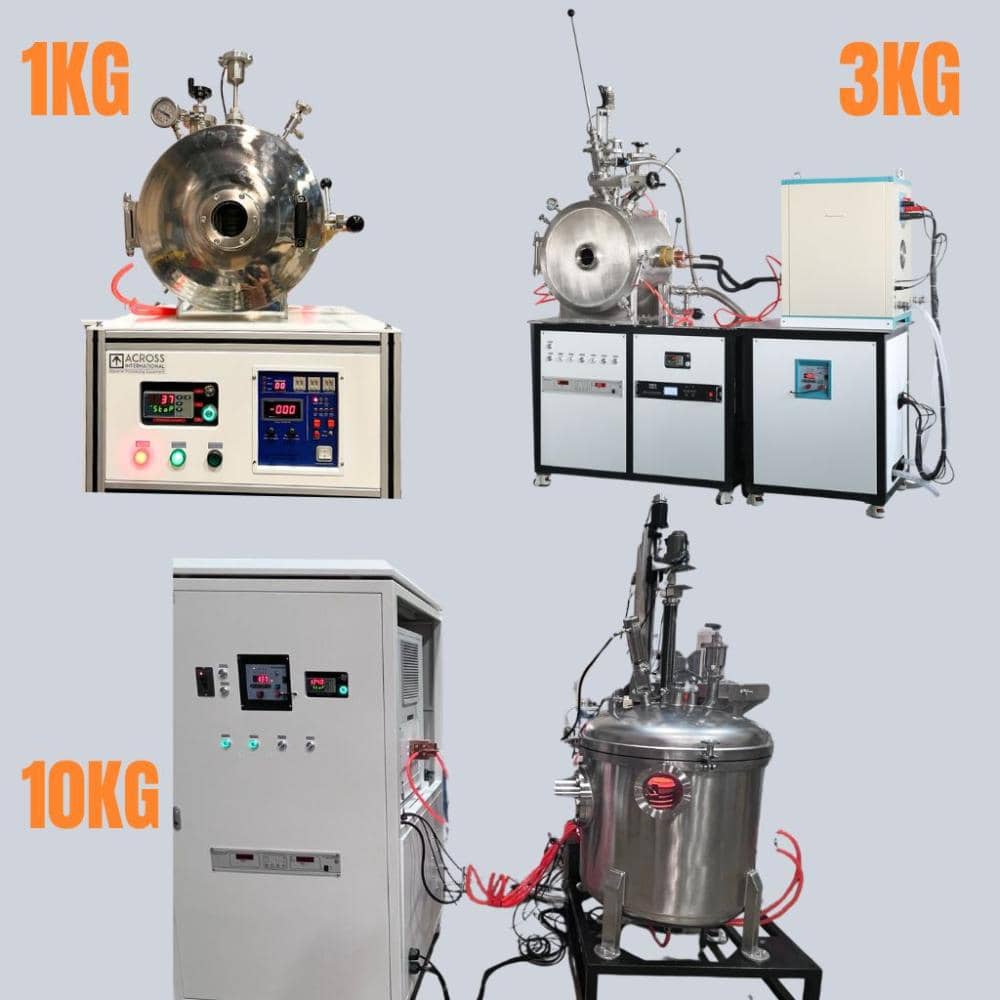

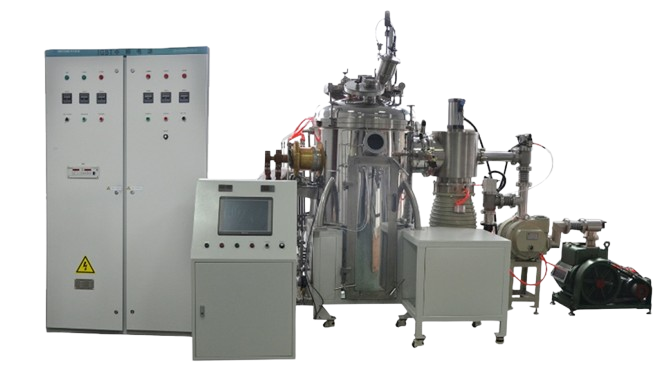

Vacuum Induction Melting Furnaces (VIM) 1-100kg

$36,172.88

Call us for detailed prices for any custom sizes Please give us a call for detailed price for 5kg, 7kg, 25kg, 50kg, and 100kg The new Across International VIM2000 stainless steel vacuum induction furnace allows you to melt material in a high vacuum environment.

Product total
Options total
Grand total
SKU: VIM2000 Category:

Description

Call us for detailed prices for any custom sizes

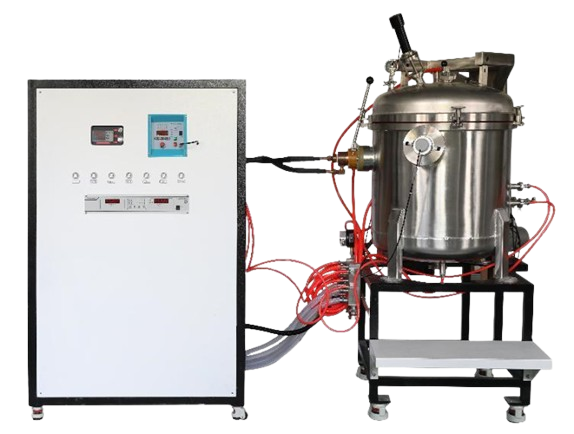

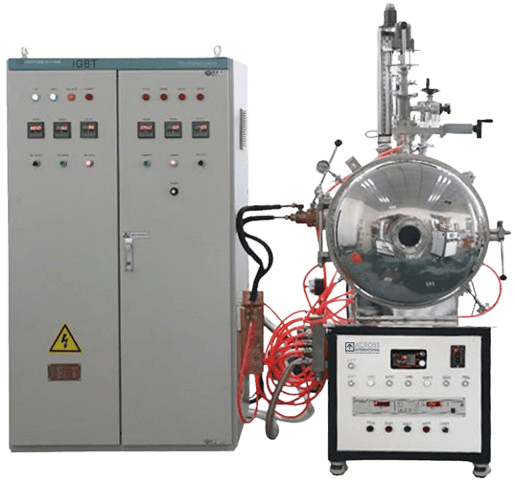

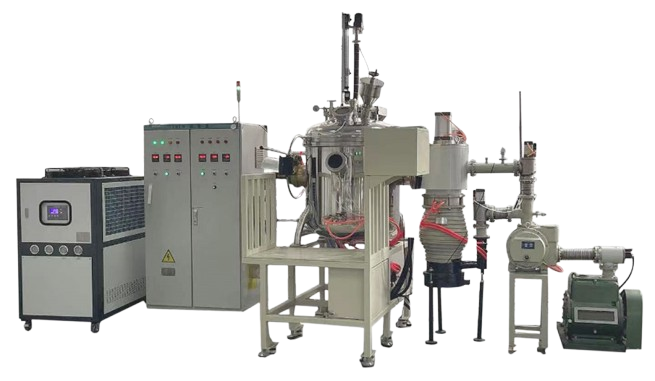

Please give us a call for detailed price for 5kg, 7kg, 25kg, 50kg, and 100kg

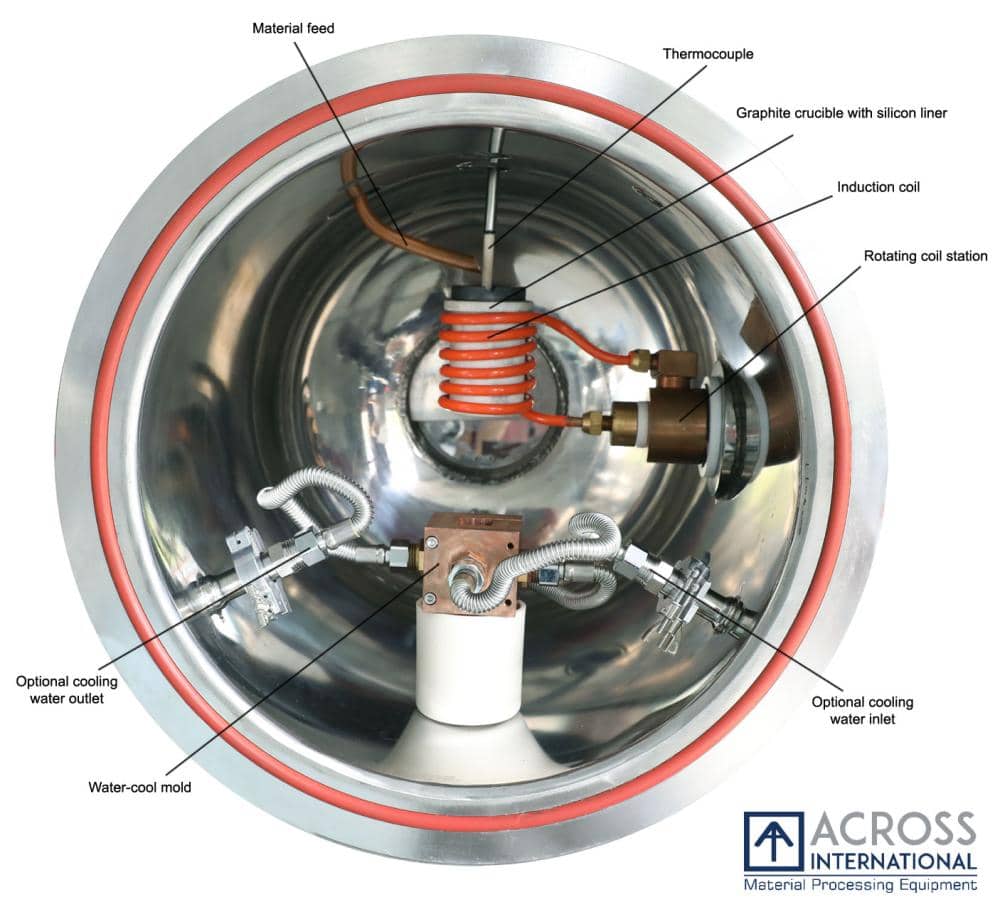

The new Across International VIM2000 stainless steel vacuum induction furnace allows you to melt material in a high vacuum environment.

Induction Heater NOT INCLUDED, to be used in conjunction with an induction heater and chiller. Please contact us for a complete system recommendation based on your needs.



 Features

  • Compact tabletop design
  • Side swing-open door for easy operation

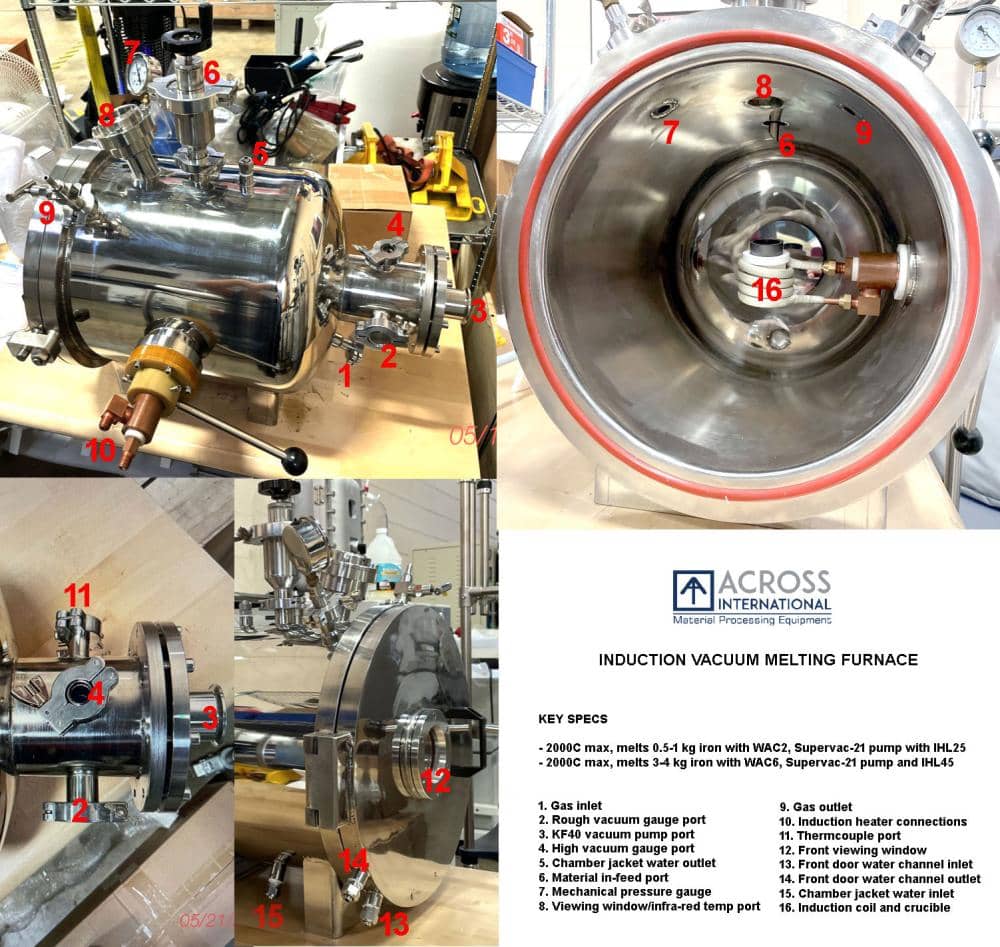

  • Multiple KF ports for high vacuum operation
  • Jacketed water-cooled chamber keeps surface temperature down
  • Swing handle allows pouring of melted material into a casting mold
  • Built-in water-cooled door channel protects door sealing gasket

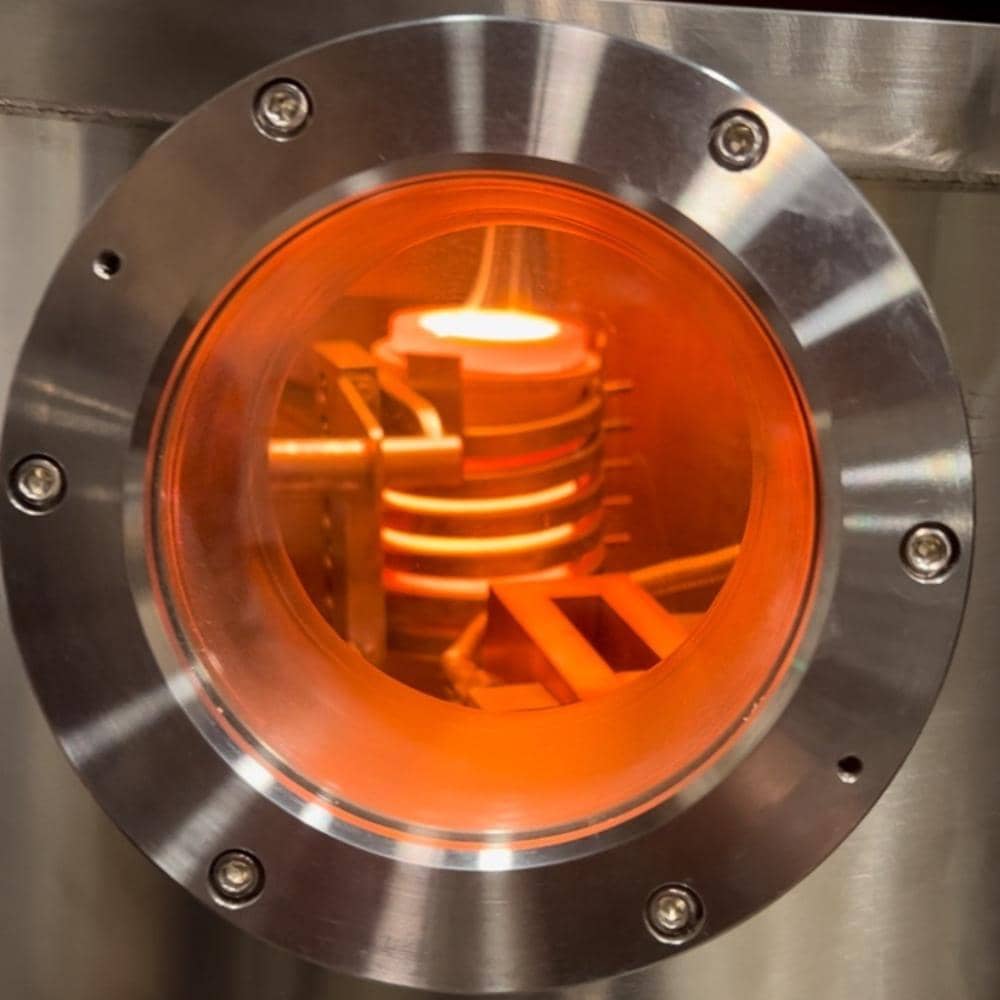

  • Built-in material feed port and viewing window
  • Gas in-feed capability. Pressure release valve required (not included)



Caution!

  • Vacuum pump should be always running during melting operation, pressure should be monitored at all time.
  • To eliminate arcing, protective gas and pressure release valve is required if system is pairing with a high frequency induction heater.

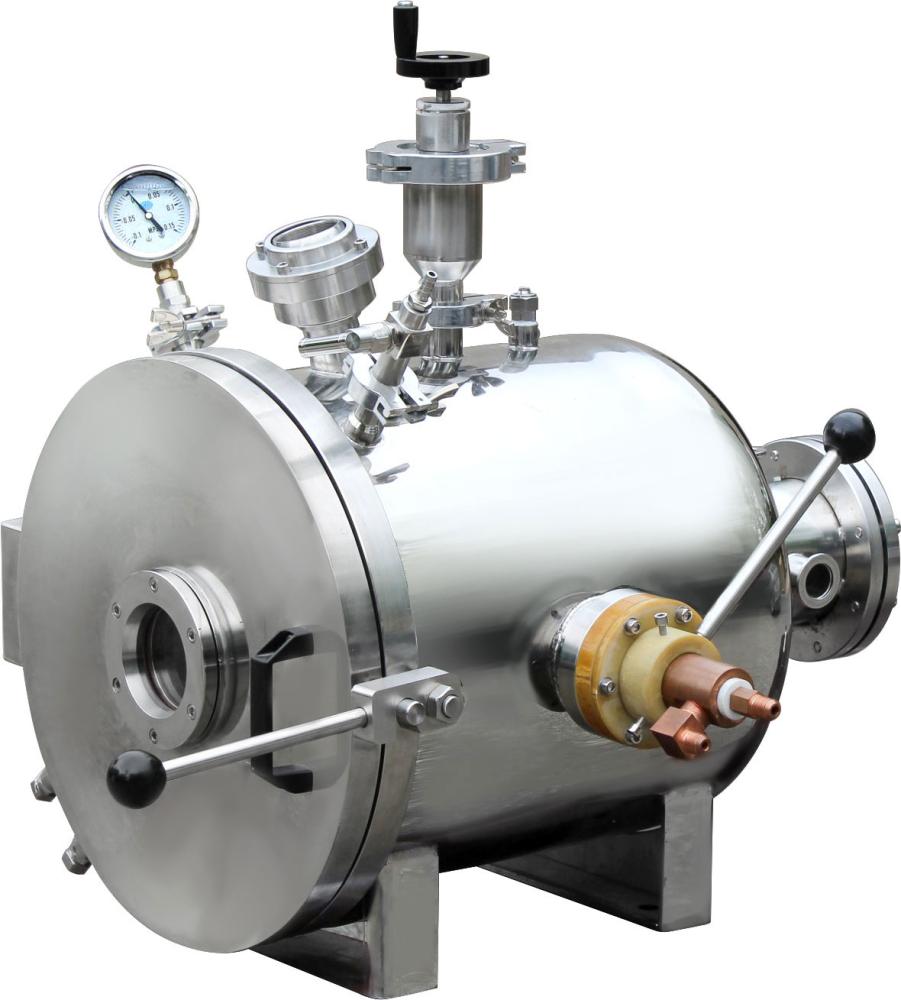

Vacuum Induction Melting Furnace







































More videoes:

https://youtu.be/tU-L6WbfhME

https://youtu.be/0CWosZUCjwo

https://youtu.be/eR7LM1zQ7sg







Specifications
 Model

 VIM2000

 Melting capacity

 1 to 100 Kgs (2.2 to 220s)

 Maximum temperature

 > 2000C (3632F)

 Chamber diameter

 300mm (11.8 inches)

 Maximum vacuum

< 0.75 micron / 0.001 Pascal

 Build material

 Stainless steel

 Vacuum port KF16, KF25, KF40
 Warranty One year

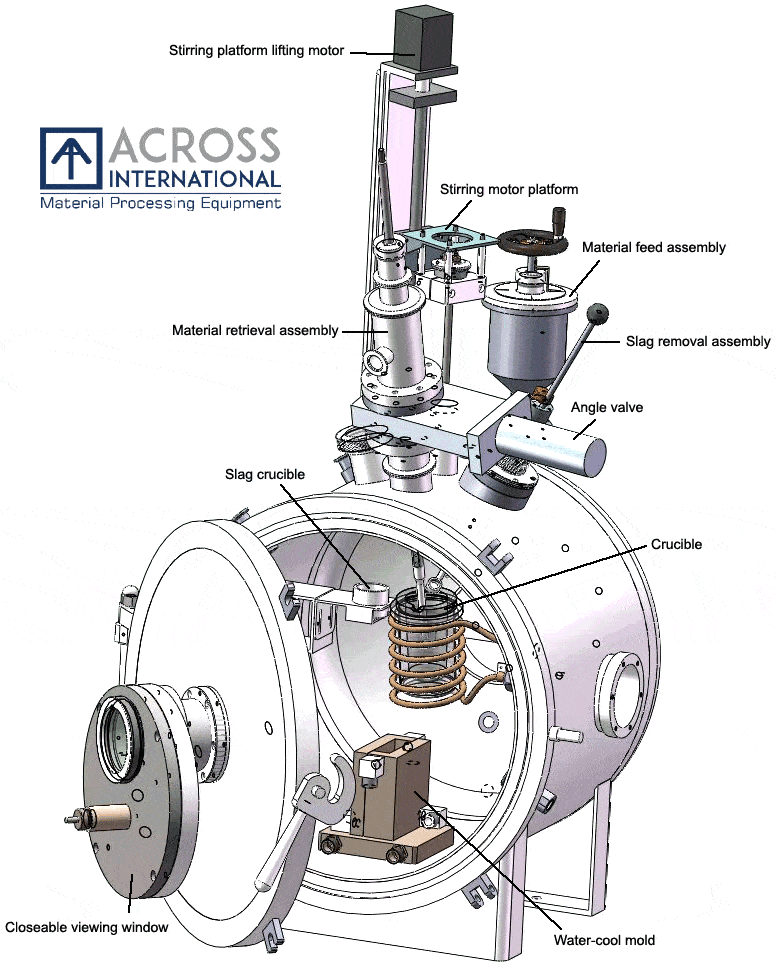

 Optional accessories

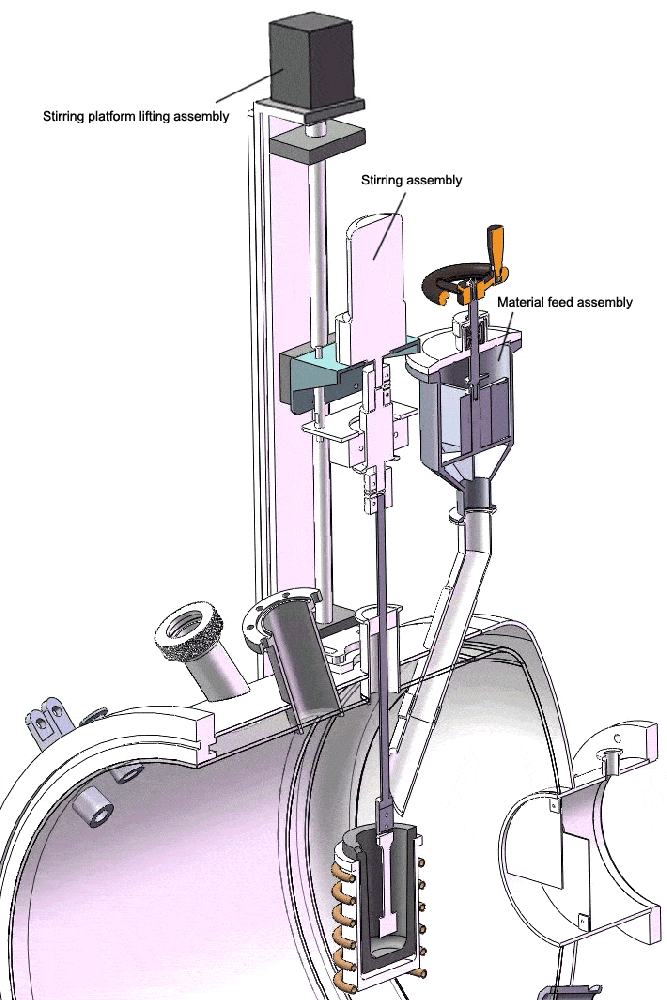

 - Stirring assembly
 - Material retrieval assembly

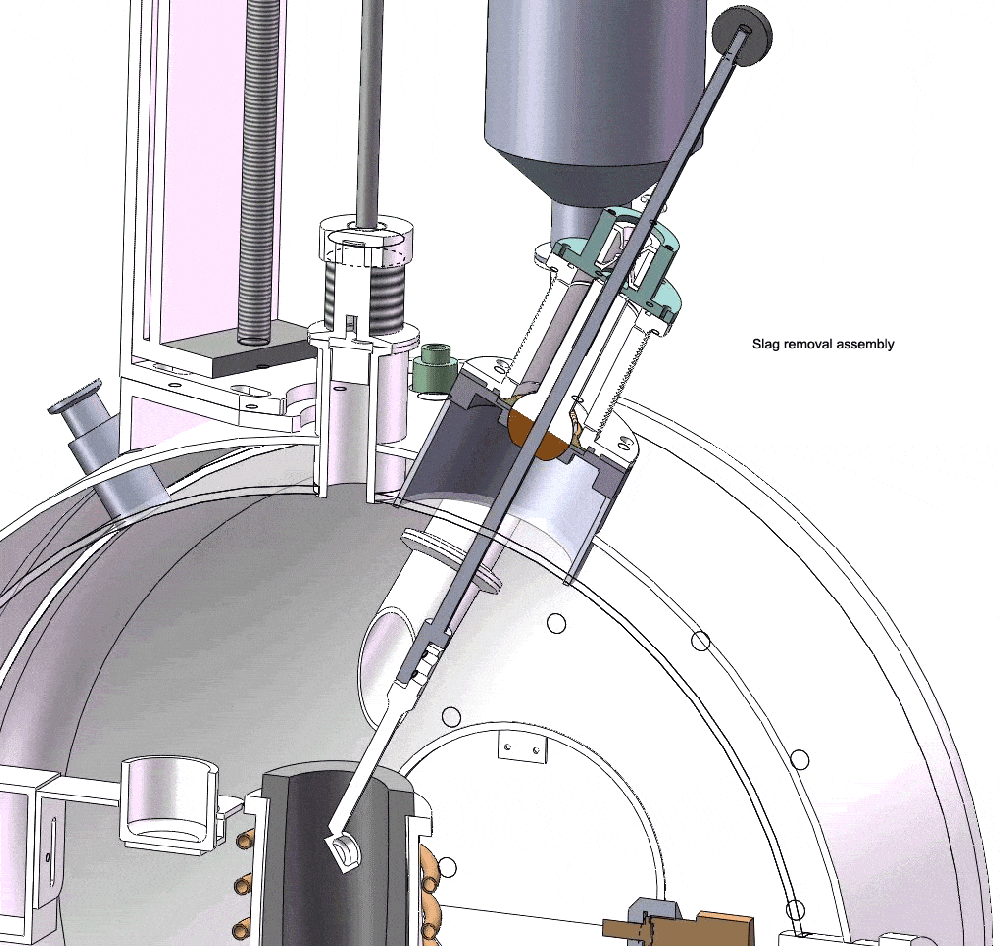

 - Slag removal assembly (for smlting)

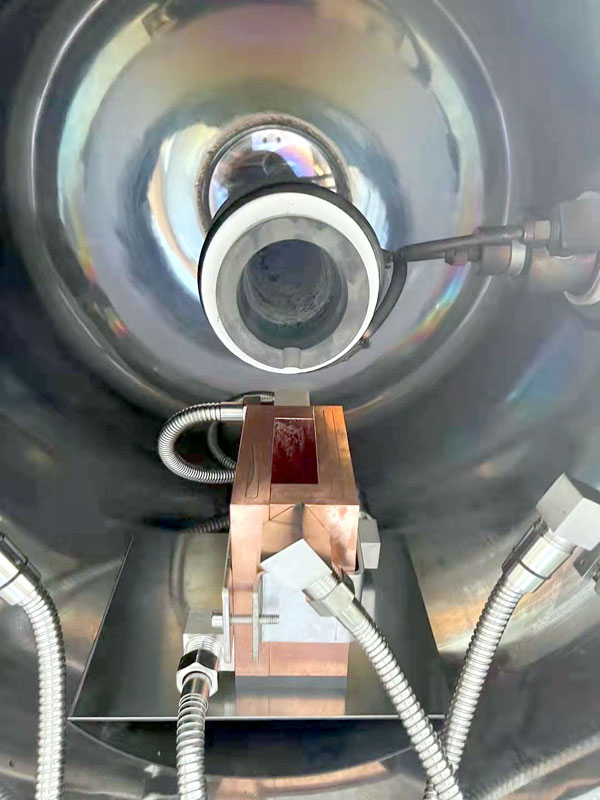

 - Plumbing for water-cool mold
 - Closeable viewing window
 - Induction heater
 - Recirculating chiller
 - Rough vacuum pump, turbo pump
 - High precision vacuum gauge
 - KF bellows, clamps, tubing, vacuum pump oil, mist filter

Recommended settings

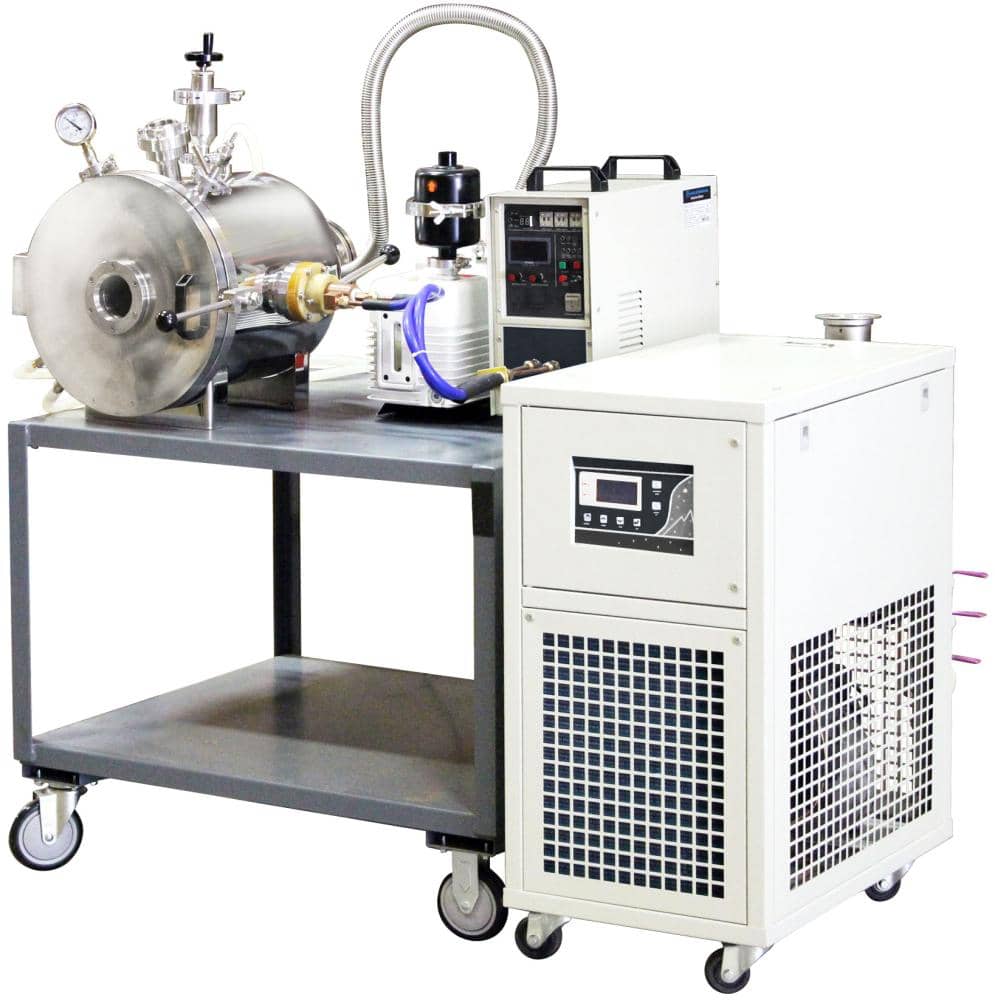

 Melting 0.5 to 1 kg of iron: WAC1 chiller, SuperVac-21 pump, IHL25 low frequency induction heater
 Melting 3 to 4 kgs of iron: WAC4 chiller, SuperVac-21 pump, IHL45 low frequency induction heater
