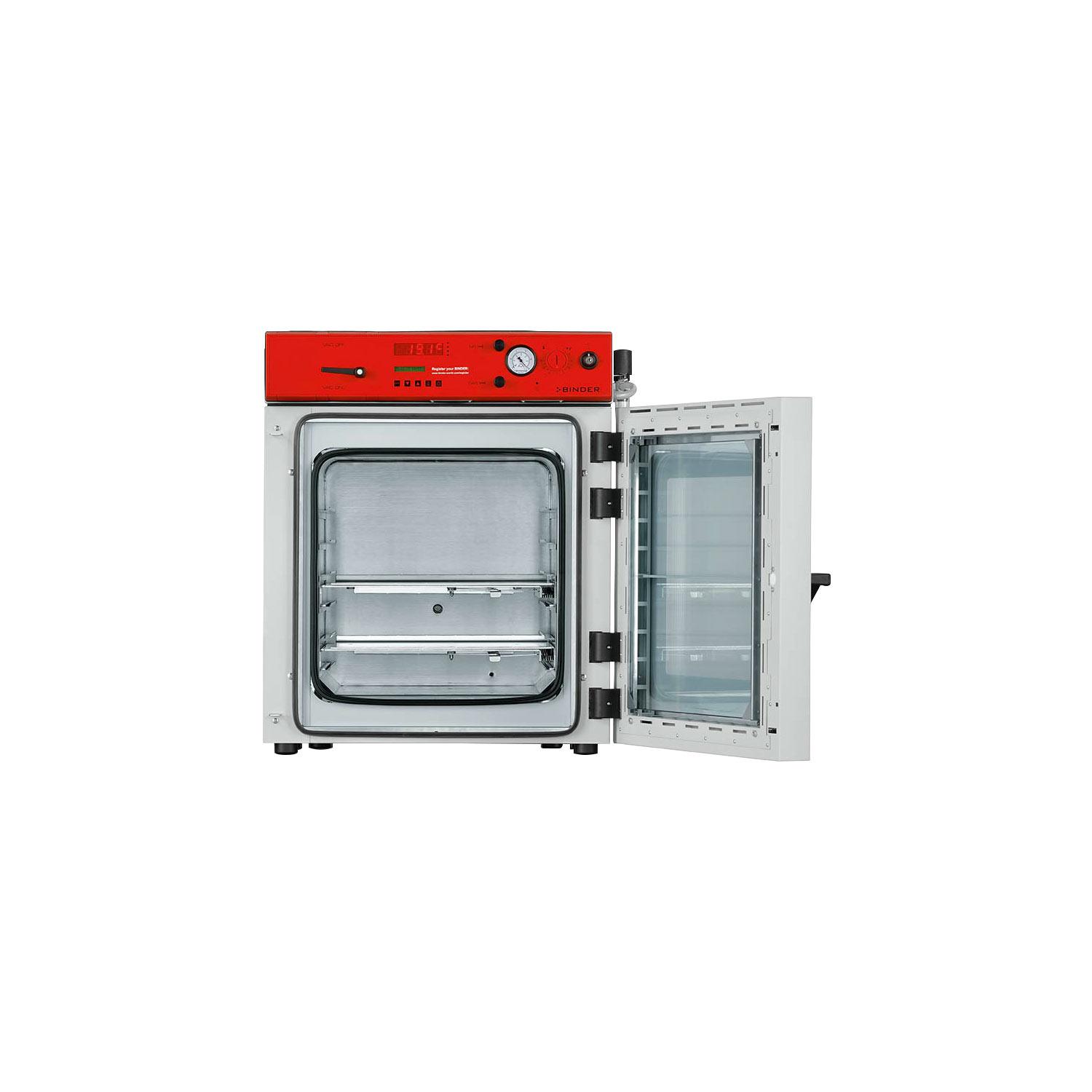

Vacuum Drying Chamber – 115L

Vacuum Drying Chamber – 115L

$38,931.43

Binder VDL vacuum drying chambers (sometimes referred to as vacuum ovens or “vac purge ovens”) ensure maximum safety when drying organic solvents.
The inner chamber of the VDL series is designed according to ATEX guidelines meaning it is extremely safe and enables effective drying without damaging the material being dried.

Category:

Description

ModelVDL115-230V
Heat-up time to 100°C95 minutes
Temperature Fluctuation [± K]0.1
Temperature range 15 °C above ambient temperature to [°C]200
Temperature variation at 100 °C [± K]3.5
Leak rate [bar/h]0.01
Permitted end vacuum [mbar]0.01
Nominal power [kW]1.9
Phase (Nominal voltage)1~
Power frequency [Hz]50/60
Rated Voltage [V]230
Unit fuse [A]10
Compressed air connection for pressure-encapsulation8 mm
Inert gas connection with flow limiter (RP”)3/8
Measuring access port with small flange [DN mm]16
Vacuum connection with small flange [DN mm]16
Interior volume [cu.ft.]4.1
Load per rack [lbs]44
Net weight of the unit (empty) [lbs]337
Permitted load [lbs]143
Viewing window height [in]16.27
Viewing window width [in]17.97
Wall clearance back [in]3.94
Wall clearance sidewise [in]5.32
Number of shelves (std./max.)2/6
  • Temperature Range: room temperature plus 15°C to 200°C
  • ATEX compliance for chamber interior: Ex II 3/-G Ex h IIB T1-T3 Gc X
  • APT.line™ preheating chamber technology
  • Controller with time-segment and real-time programming
  • 2 aluminum expansion racks
  • Inert gas connection
  • Shatterproof, spring-mounted safety glass panel
  • Pressurized instrument panel with compressed air connection
  • Pressure control device for heating is activated < 125 mbar
  • Flame protection gasket
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • RS 422 computer interface
