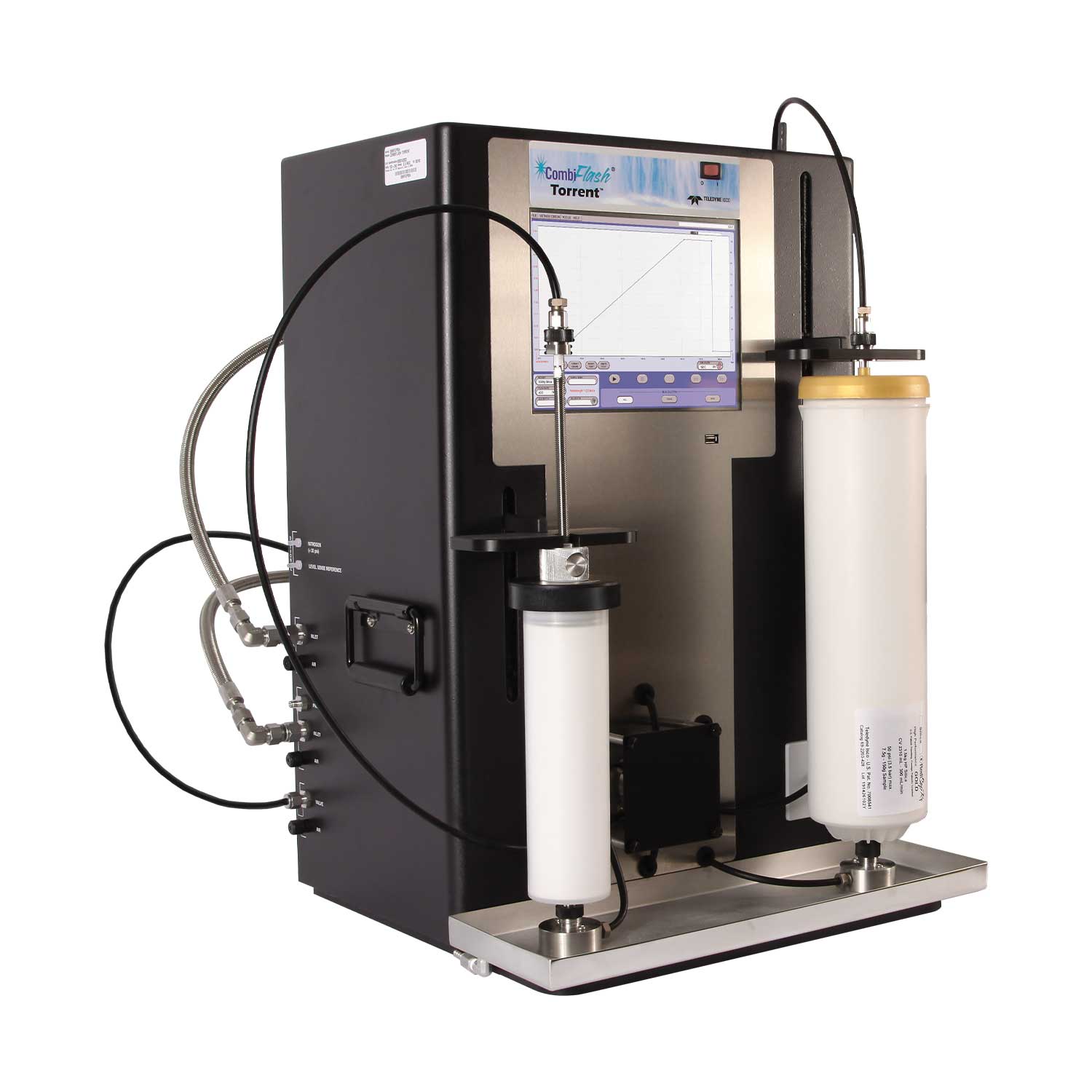

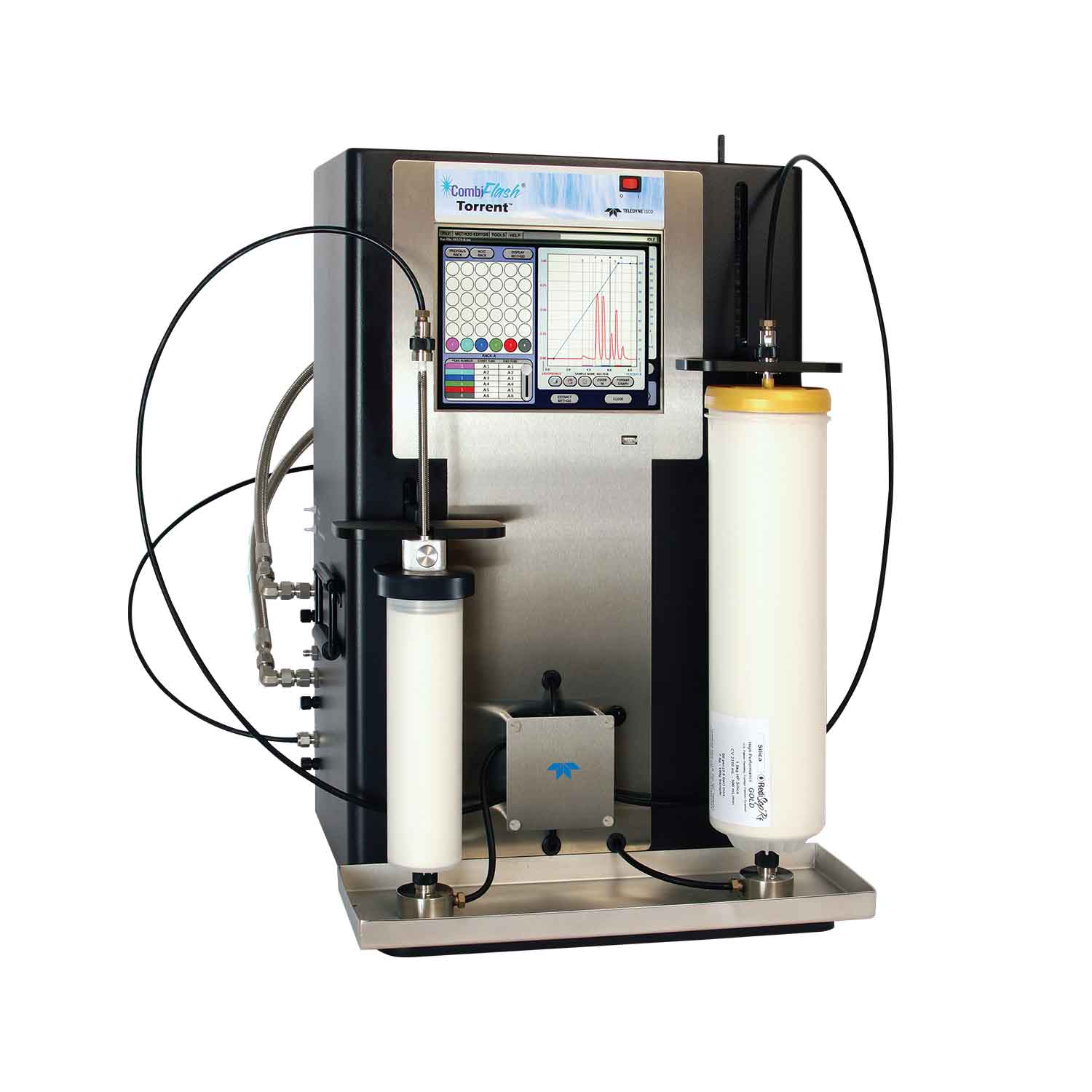

Teledyne CombiFlash Torrent Module
The Teledyne CombiFlash Torrent system is the most reliable, development-scale flash chromatography system on the market.
Teledyne ISCO designed this system to meet or exceed a variety of large-scale purification needs.
The CombiFlash Torrent includes a one liter-per-minute gradient system, which allows for purifications of up to 600 grams in a single run.
Description
| Sample Size | 0.5 to 600 grams |
| RediSep Rf Column Sizes | 80 grams to 3 kilograms |
| Flow rate | 50 – 1000 mL/min |
| Maximum Pressure | 100 psi (6.89 bar) |
| Detection | 200 – 400 nm (200 – 800 nm optional) with single, dual, or All wavelength collection. Accepts external detector input |
| Gradient | Binary, high pressure solvent mixing with linear, step, or isocratic capability. Two solvent inlets |
| Gradient Accuracy | <2% full scale from 0.2 to 1.0 L/min |
| Sample injection | Automated injection with options of solid load cartridges, liquid load, or direct injection |
| Controller | 10.4 in (26.7 cm) touchscreen |
| Software | On-screen method development and control with PeakTrak software |
| Fraction Collection | Up to fThe fraction collectors, fractionation valve, or manual collection |
| Solvent Management | Patented, active level sensing for inlet and waste containers |
| Module Dimensions (W x D x H) | 18.5” x 17.9” x 28.1” (47 x 43.5 x 71.4 cm) |
| Module Weight | 65 lbs (29.5 kg) |
| Operating Voltage | 100 VAC 50 Hz, 117 VAC 60 Hz, 234 VAC 50 Hz |
| Safety & Sample Security | Static-dissipative tubing throughout, vapor sensor for internal leak detection, overpressure sensor, active solvent and waste level sensing, audible alarm when user intervention is required |
| Certifications | CE |
| Sample Size | 0.5 to 600 grams |
| RediSep Rf Column Sizes | 80 grams to 3 kilograms |
| Flow rate | 50 – 1000 mL/min |
| Maximum Pressure | 100 psi (6.89 bar) |
| Detection | 200 – 400 nm (200 – 800 nm optional) with single, dual, or All wavelength collection. Accepts external detector input |
| Gradient | Binary, high pressure solvent mixing with linear, step, or isocratic capability. Two solvent inlets |
| Gradient Accuracy | <2% full scale from 0.2 to 1.0 L/min |
| Sample injection | Automated injection with options of solid load cartridges, liquid load, or direct injection |
| Controller | 10.4 in (26.7 cm) touchscreen |
| Software | On-screen method development and control with PeakTrak software |
| Fraction Collection | Up to fThe fraction collectors, fractionation valve, or manual collection |
| Solvent Management | Patented, active level sensing for inlet and waste containers |
| Module Dimensions (W x D x H) | 18.5” x 17.9” x 28.1” (47 x 43.5 x 71.4 cm) |
| Module Weight | 65 lbs (29.5 kg) |
| Operating Voltage | 100 VAC 50 Hz, 117 VAC 60 Hz, 234 VAC 50 Hz |
| Safety & Sample Security | Static-dissipative tubing throughout, vapor sensor for internal leak detection, overpressure sensor, active solvent and waste level sensing, audible alarm when user intervention is required |
| Certifications | CE |
- Reliable pumps that can produce an accurate binary gradient up to 1 L/min
- Peak cutting options via slope, threshold or time as well as multiple or single wavelength detection

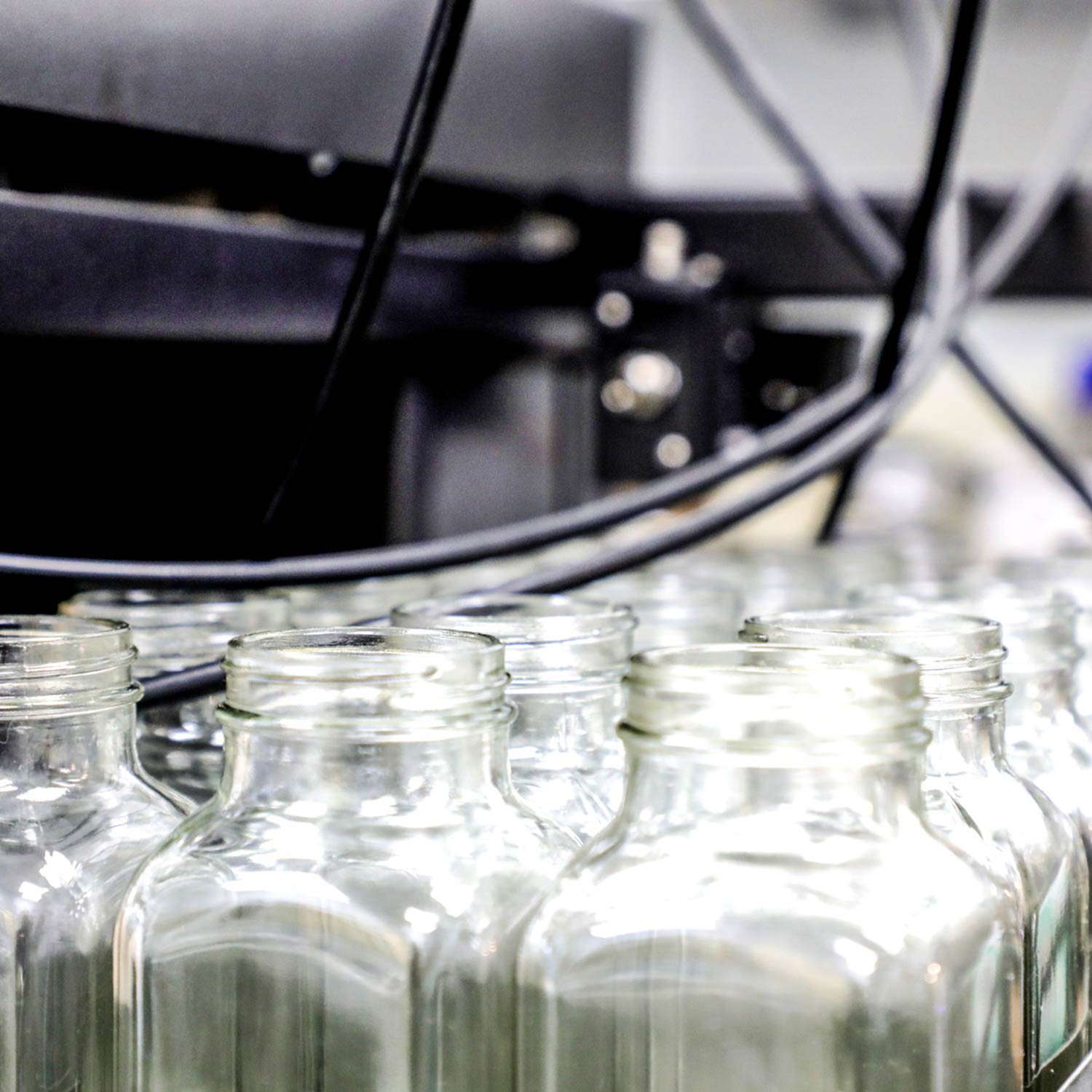

- The Foxy R2 fraction collector has multiple rack configurations and can be daisy-chained to collect hundreds of fractions

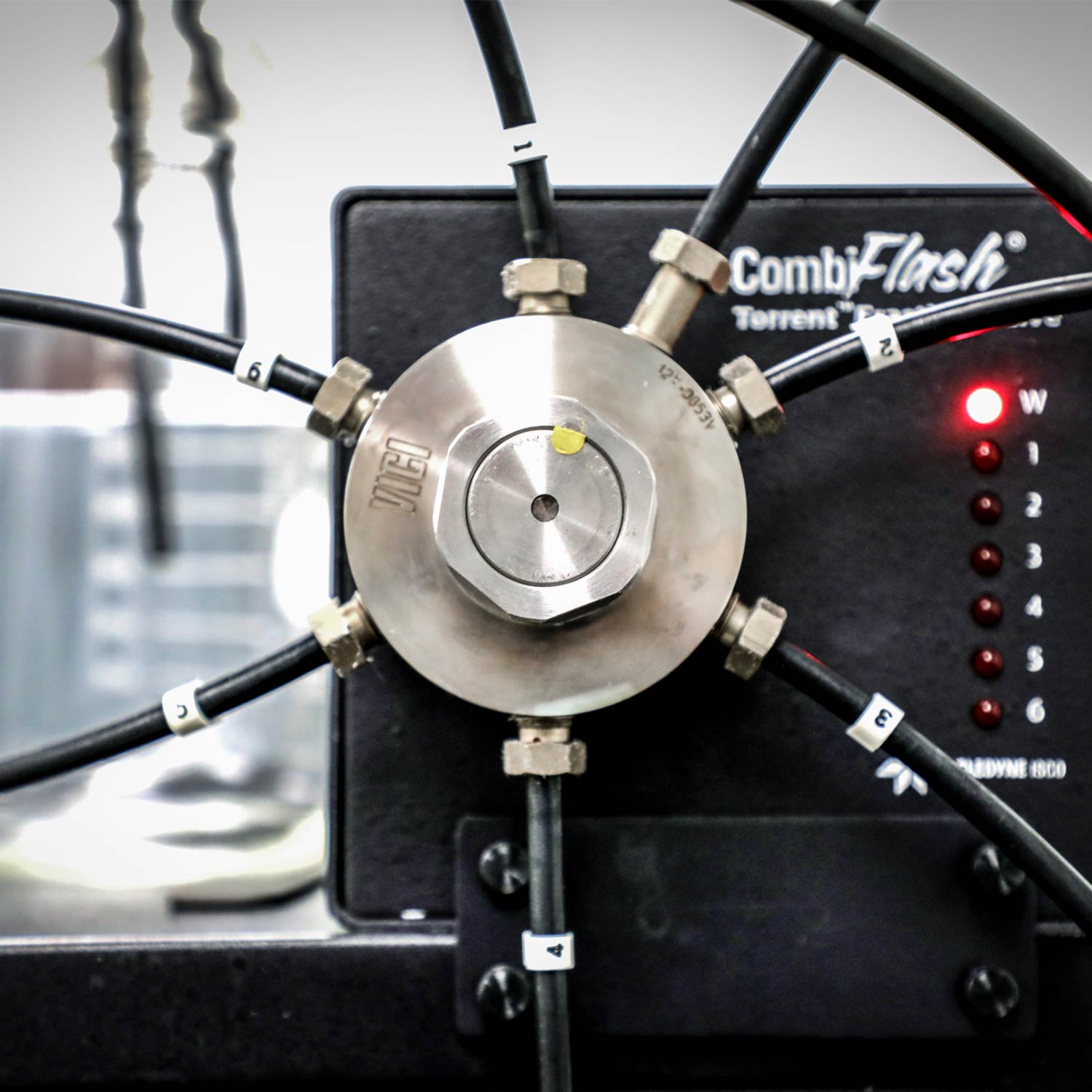

- Fractionation valve allows for targeted compound collection in conjunction with PeakTrak software
- Automated six-port injection valve which enables true walk-away automation of column equilibration, sample loading, purification, column and cartridge air purge, and post-run cleaning
- Patented level-sensing ensures adequate solvent for purification and prevents waste
- Error-free RFID detection recognizes RediSep columns and automatically selects an optimized purification method
