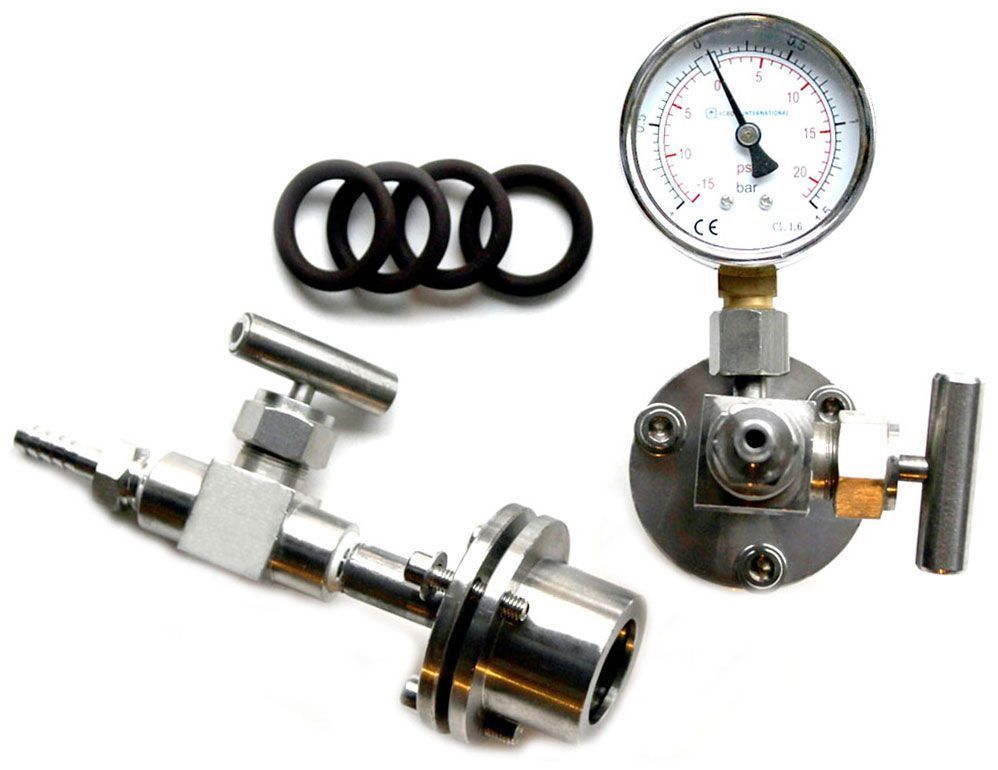

Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes

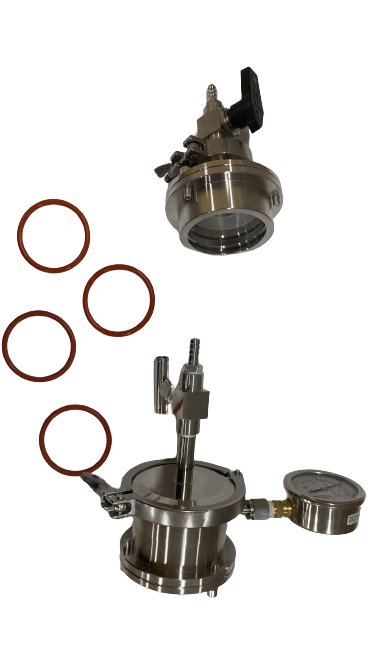

Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes - Image 2
Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes - Image 3

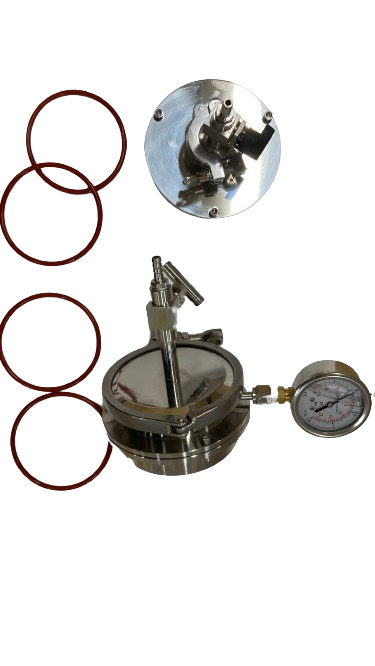

Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes - Image 4

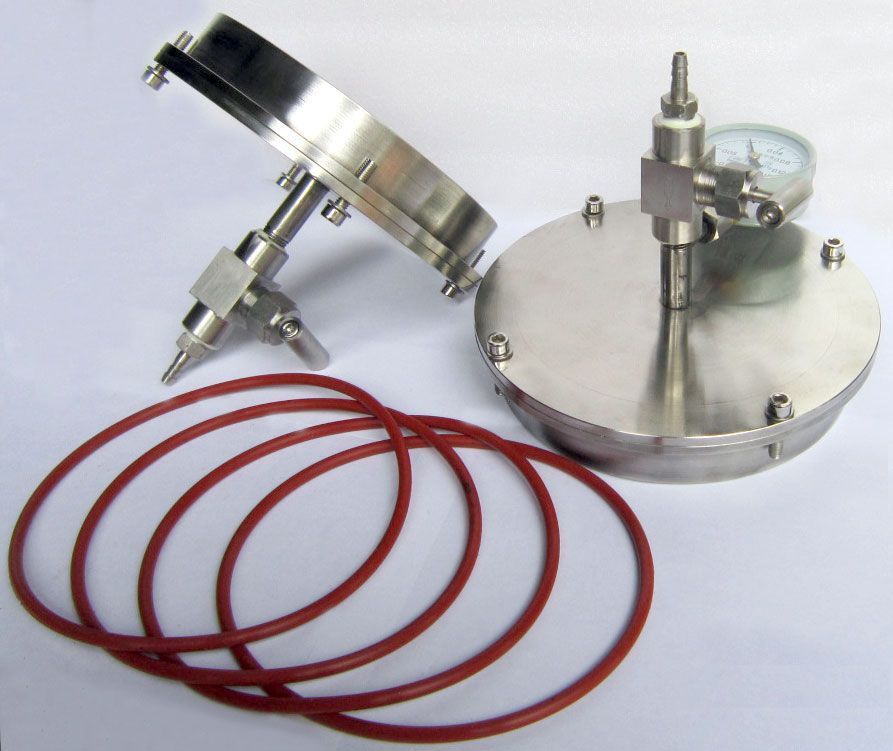

Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes - Image 5

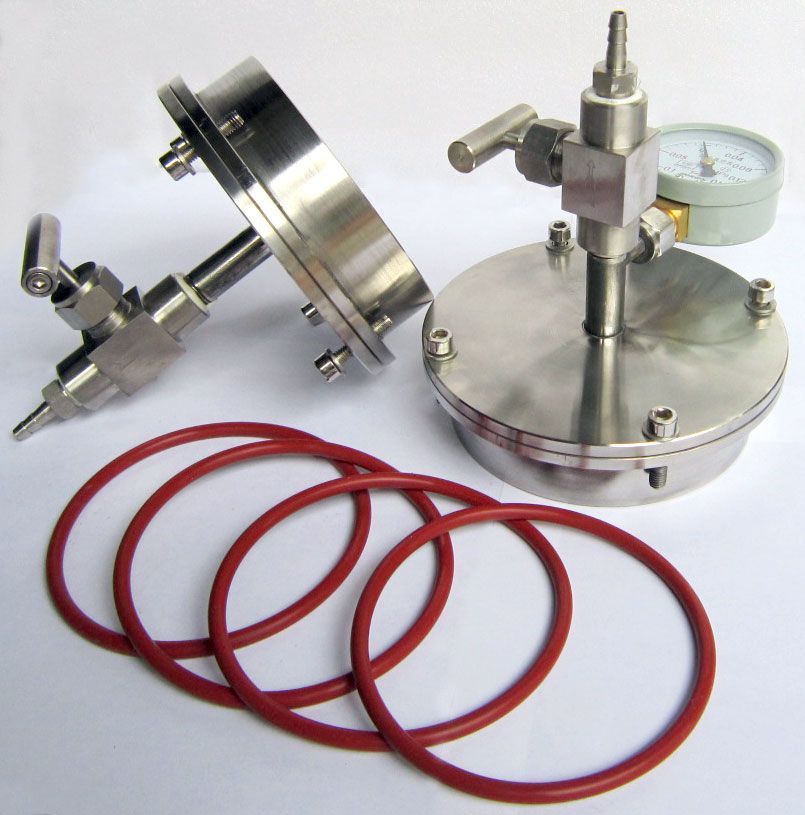

Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes

$624.92

Warning: Refractory tube blocks must be placed in front of flanges to avoid heat damage to the silicon o-rings. Call for custom flange pricing Pair of smart sealing assembly for vacuum tube furnaces to tighten both sides of their tubes without any welding or gluing. Silicon vacuum sealing gasket included. Excellent for any types of tubes including ceramic, glass, quartz, steel, etc. Package includes One flange with vacuum gauge and valve One flange with valve Four high temperature silicon o-rings Securing screws

Product total
Options total
Grand total
SKU: FS Category:

Description

Warning: Refractory tube blocks must be placed in front of flanges to avoid heat damage to the silicon o-rings.

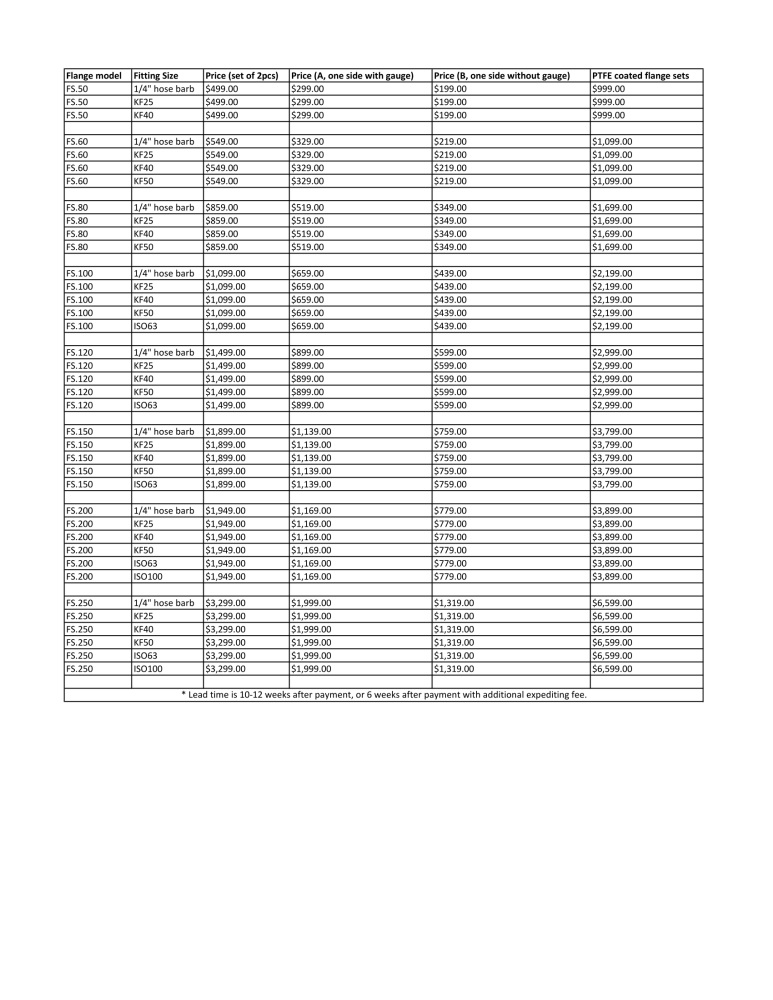

Call for custom flange pricing

Pair of smart sealing assembly for vacuum tube furnaces to tighten both sides of their tubes without any welding or gluing. Silicon vacuum sealing gasket included. Excellent for any types of tubes including ceramic, glass, quartz, steel, etc.

Package includes

  • One flange with vacuum gauge and valve
  • One flange with valve
  • Four high temperature silicon o-rings
  • Securing screws





Specifications
Specifications
  • Polished stainless steel construction
  • Seal tube by tighten screws on the flanges without any welding or gluing
  • Tube fitting: 1/4" hose barb (KF25 upon request)
  • Vacuum barb adapter: M14 tapered
  • Vacuum gauge port: M14 non tapered
