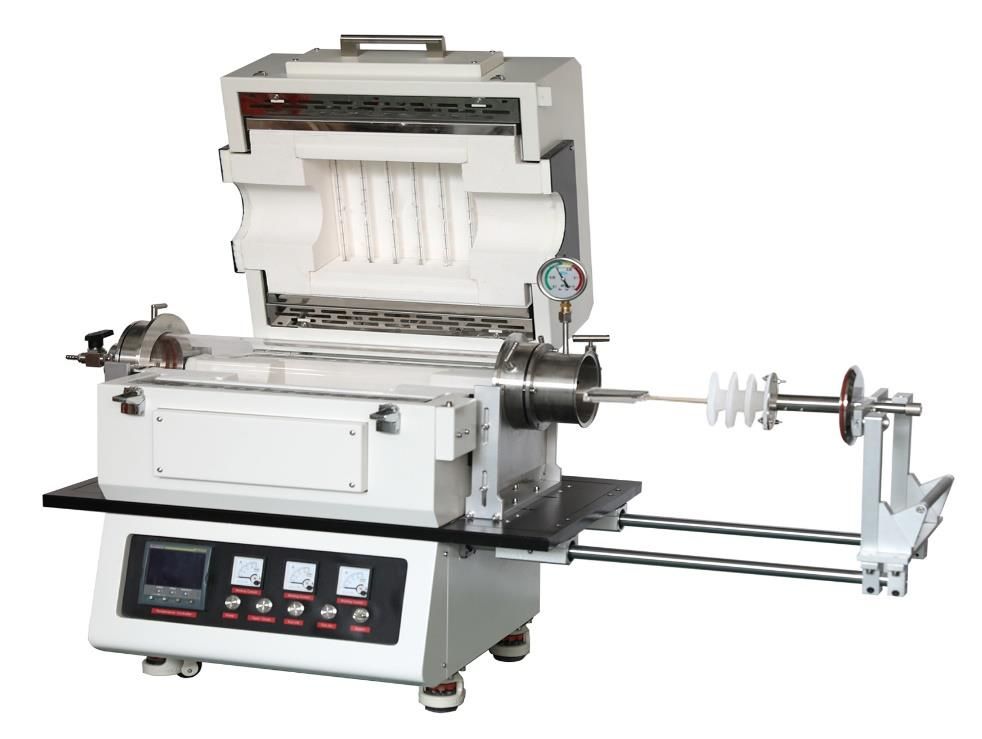

RTP1200 Fast Sintering Furnace With Halogen Light (Call for Quote)

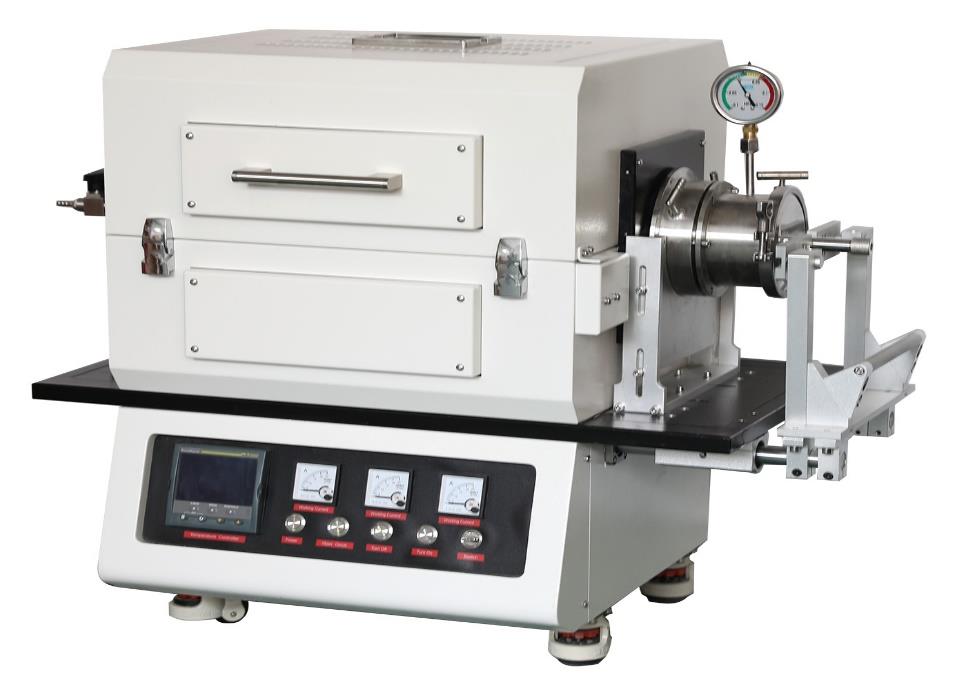

RTP1200 Fast Sintering Furnace With Halogen Light (Call for Quote) - Image 2

RTP1200 Fast Sintering Furnace With Halogen Light (Call for Quote)

Please call us for the price (Quote), thank you. RTP1200 furnaces (Rapid Thermal Processing) with Halogen light heating elements feature a chamber with Mitsubishi (Japan) high-quality grade 1900 alumina fiber insulation and 12 pcs Halogen light tubes. A dual-wall steel housing helps minimize heat loss to exterior surface.

Contact for Pricing
SKU: RTP1200 Category:

Description

Please call us for the price (Quote), thank you.





RTP1200 furnaces (Rapid Thermal Processing) with Halogen light heating elements feature a chamber with Mitsubishi (Japan) high-quality grade 1900 alumina fiber insulation and 12 pcs Halogen light tubes. A dual-wall steel housing helps minimize heat loss to exterior surface.



Furnace operation is controlled by 50-segment Eurotherm (UK) digital controller with a built-in communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.





Safety

  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
  • Limit switch turns off furnace once top is open.



Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.



Specifications

Power Input208-240 AC, 50/60 Hz single phase, 12 KW Max.
Heating Elements12 pcs Halogen light tube
Heating Zone10" length with 4" constant temperature zone within +/-5ºC uniformity
Working Temperature600ºC – 700 ºC Max for Continuous
1100ºC Max. for < 10 minutes
1000ºC Max. for < 20 minutes
800ºC Max. for < 120 minutes
Max. Heating Rate50ºC/sec
Cooling RateMax. Cooling: 60ºC/min (Under vacuum: 200 m-torr), 117ºC/min (under atmospheric pressure)

Lowest Cooling: 10 ºC / minute
FlangesWater Cooled (submersible water pump included, chiller optional)
ThermocoupleK type
Temperature Controller Eurotherm 3504• 50 segments programmer (ramp and dwelling)
• +/- 1 ºC temperature control accuracy
• PC communication port
Quartz TubeDia 4 inch × 23-inch length
Dimensions40 × 20 × 30（L× W × H）
Standard Packages

Part description

Quantity

RTP 1200 fast sintering furnace unit1 pc
Quartz process tube, 580 mm length, 100 mm OD2 pc
Water-cooled stainless steel vacuum sealing flange set with pressure gauge1 set
Clamp, O-ring, and valve assembly (pre-installed)1 set
Spare flange O-rings5 pc
Circular quartz heating spiral with mounting hardware1 pc
Stainless steel hanging hook1 pc
Alumina thermal insulation block for 90 mm OD tube2 pc
High-temperature protective gloves1 pair
Crucible holder assembly1 pc
USB / RS485 computer communication kit1 set
Allen key tool1 pc
80A UL-listed Bussmann fuse2 pc
Type-K thermocouple sensor1 pc
Thermal support plate1 pc
Extra mounting bolts12 pc
Push-to-connect adapter (10 mm to 16 mm tubing)1 pc
Submersible cooling pump with hose barb fitting1 pc
16 mm tubing1 pc
10 mm tubing1 pc
Furnace and temperature controller manual1 pc
Eurotherm USB OR Shimaden CD for software1 pc
