High-Vacuum Rapid-Heating Flash Sintering Furnace

Introduction

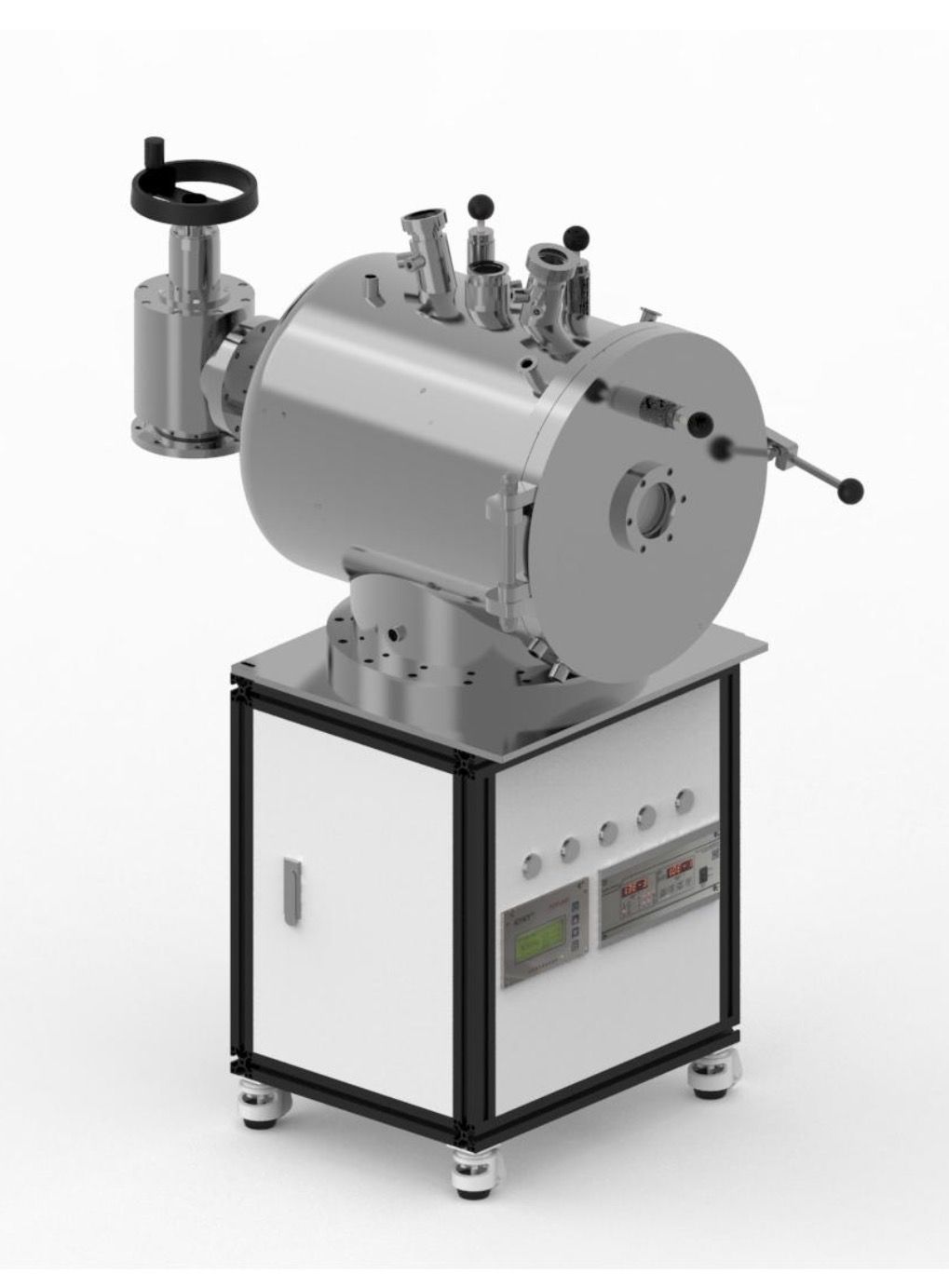

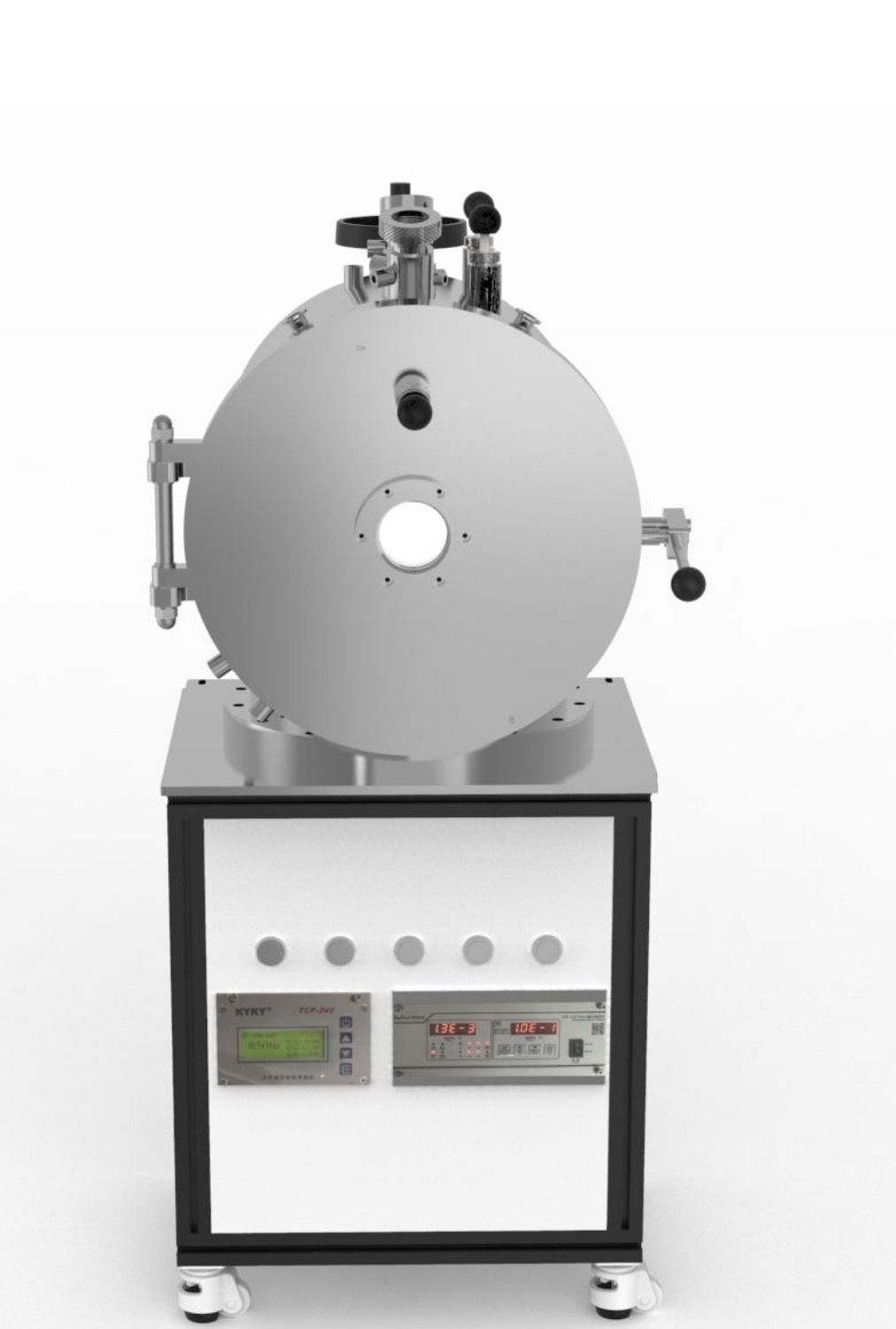

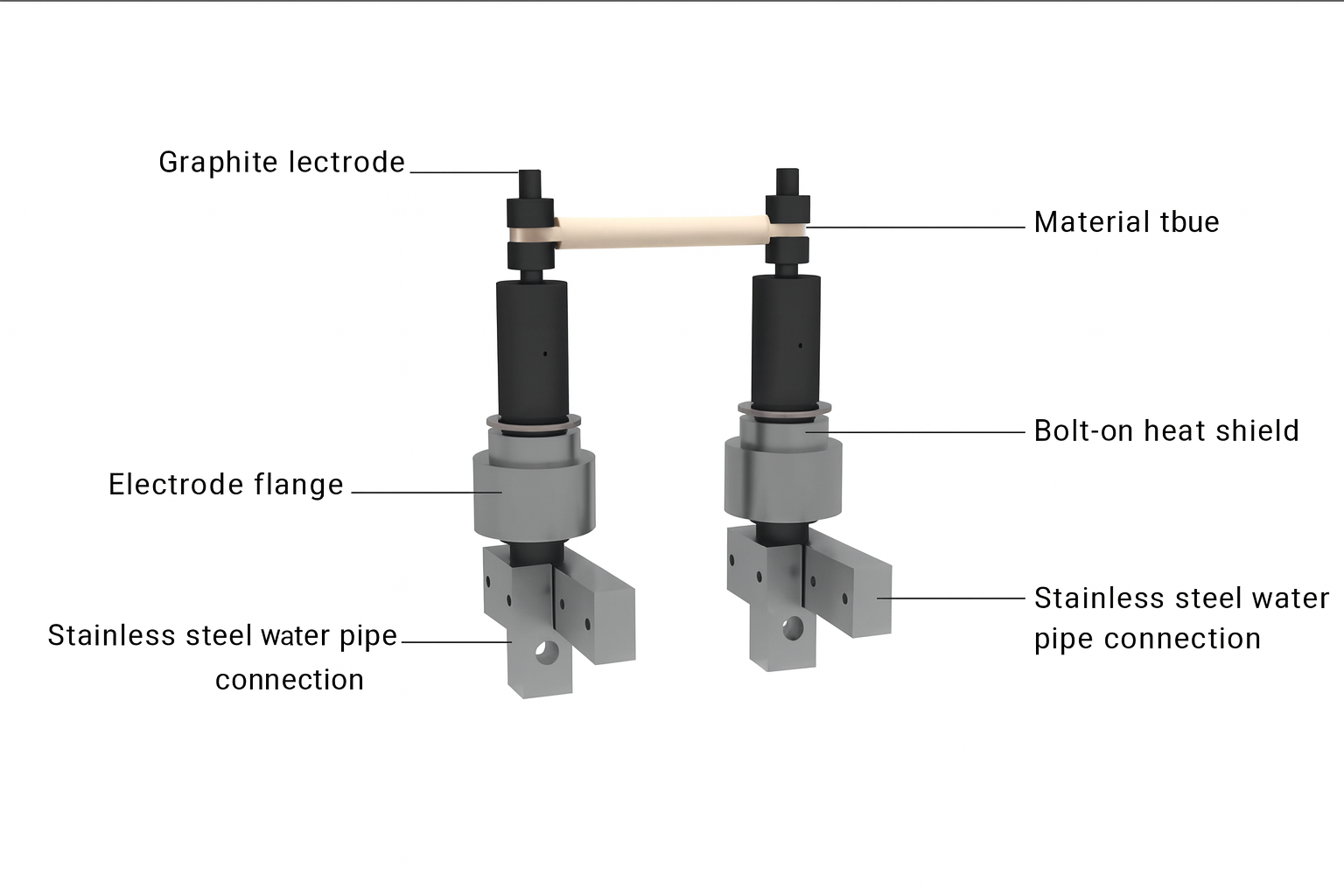

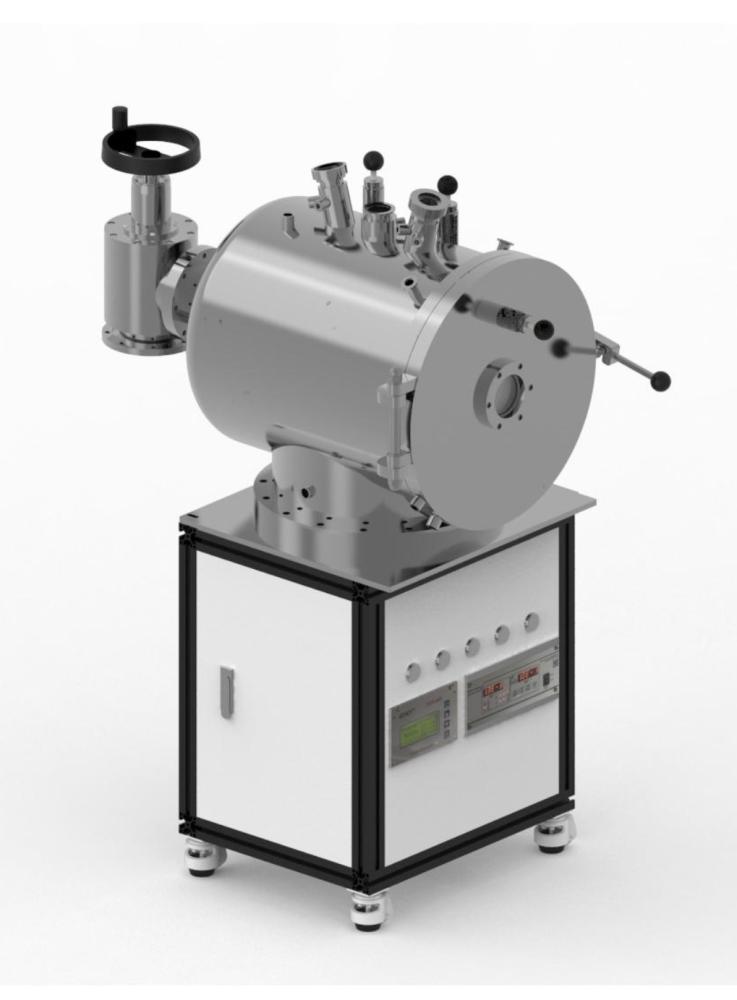

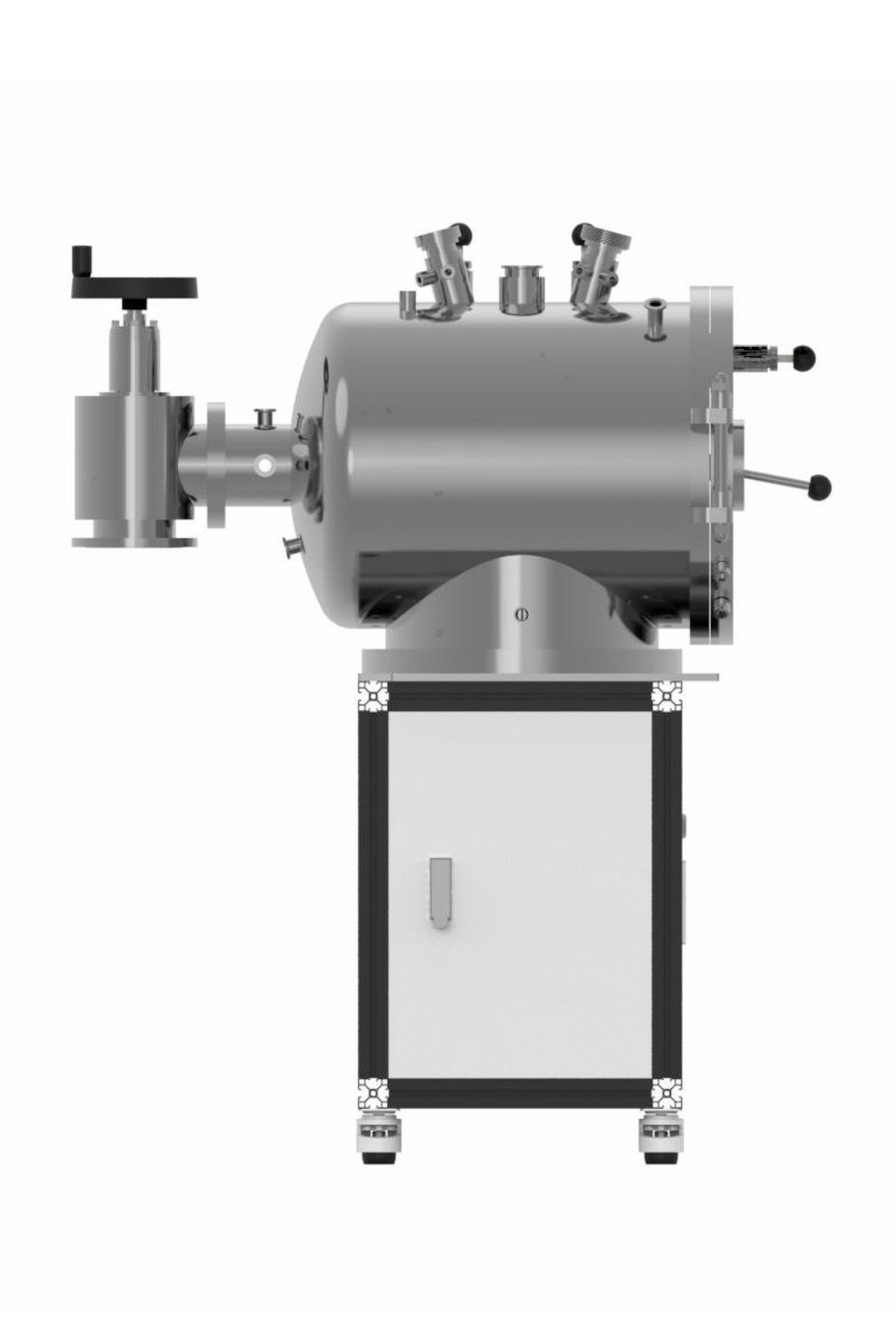

This is a high-vacuum rapid-heating flash sintering furnace equipped with a flash sintering power supply. Current is introduced through electrode flanges to apply an electric field to the sample, enabling field-assisted flash sintering. Compared with traditional ceramic sintering, this process is extremely fast, energy‑saving, and beneficial for producing fine‑grained ceramics. It can be widely used for flash sintering of various ceramics. The system includes a high‑vacuum setup capable of reaching 5×10⁻⁴ Pa.

Product Features

Vacuum degree: 5×10⁻⁴ Pa (molecular pump)
Heating elements: Molybdenum, platinum, tungsten, or graphite. When using graphite, the maximum temperature is 3000℃.

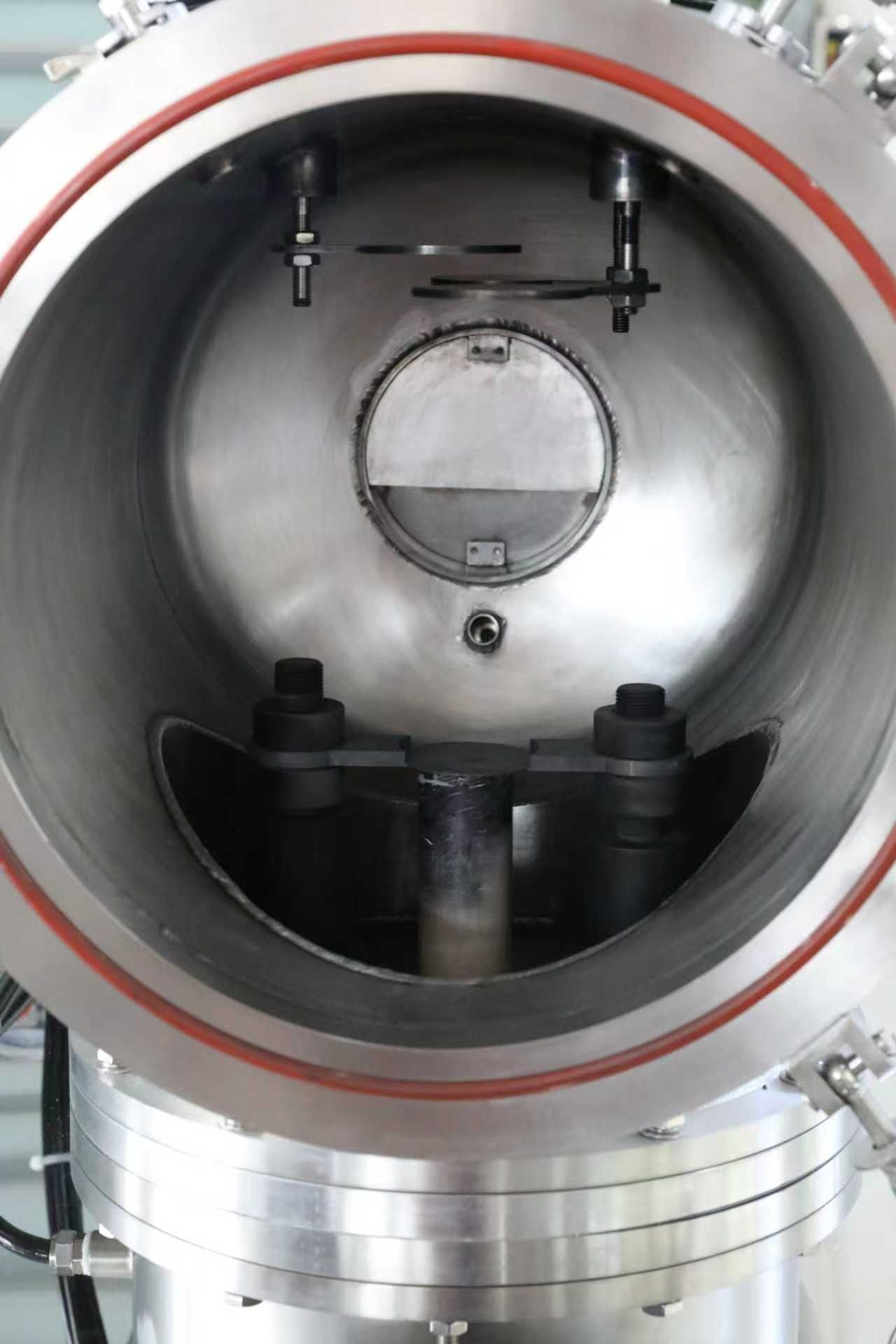

The gap between heating elements is adjustable according to sample thickness.
Equipped with a high‑precision infrared thermometer.

Flash Sintering Furnace Parameters

Power supply parameters are programmable and can be controlled via computer.
Input voltage: 220V ±10%
Output voltage: 0–1000V; Output current: 0–20A; Power: 6 kW
Output voltage stability: ≤1%
Optional power ratings available.
Maximum temperature (with graphite element): 3000℃
Heating rate: ≤200℃/s

Infrared Imaging (Optional)

The furnace body includes a 10 mm side observation window for infrared monitoring.
Equipped with an advanced Raytek high‑temperature infrared thermometer featuring video aiming capability for intuitive process monitoring.
Automatic emissivity adjustment prevents incorrect emissivity settings.
Endurance software allows temperature recording for data analysis and sensor configuration.
Temperature range: 1000℃–3200℃
Single‑color or dual‑color operating mode.

Dimensions

520 × 1030 × 1230 mm

Infrared Thermometer

Imported Japanese Chino dual‑color infrared thermometer.
Temperature range: 600–3500℃.
Voltage: 220V
KF25X1000
KF25
Dimensions: 53*60*120cm

Molecular Pump Unit

Model: FF100/300
Input voltage: 220V
Molecular pump inlet flange: DN100
Pumping speed (air): 300 L/s
Ultimate pressure: 5×10⁻⁷ Pa
Cooling method: Air cooling
Operating temperature: 0–40℃
Recommended start pressure: <10 Pa
Power: 0.75 kW
Voltage: 220V
Speed: 1450 rpm
Backing pump speed: 4 L/s
Ultimate pressure: 5×10⁻¹ Pa
