Radwag X7.M Series Touchscreen 6100g Capacity 0.01g Readability 8×8″ Precision Balance

$2,704.27

PS X7.M is a series of advanced-class precision balances of high resolution based on RADWAYG MONO BLOCK technology. The innovative construction of PS X7.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination. RADWAYG MONO BLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg .

Product total
Options total
Grand total
SKU: PS 6100.X7.M (WL-226-0007) Category: Brand:

Description

PS 6100.X7.M Precision Balance



PS X7.M is a series of advanced-class precision balances of high resolution based on RADWAYG MONO BLOCK technology. The innovative construction of PS X7.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination.



RADWAYG MONO BLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures stability of the weighing system and great resistance to shocks.

Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.

Features:

  • d=0.01g readability at 10 kg max capacity
  • great resistance to ambient conditions
  • stability and repeatability over time
  • MONOBLOCK technology
  • internal adjustment within the whole measuring range
  • complex databases and ALIBI memory
  • ergonomic 5” colour touchscreen
  • touch-free operation







Databases

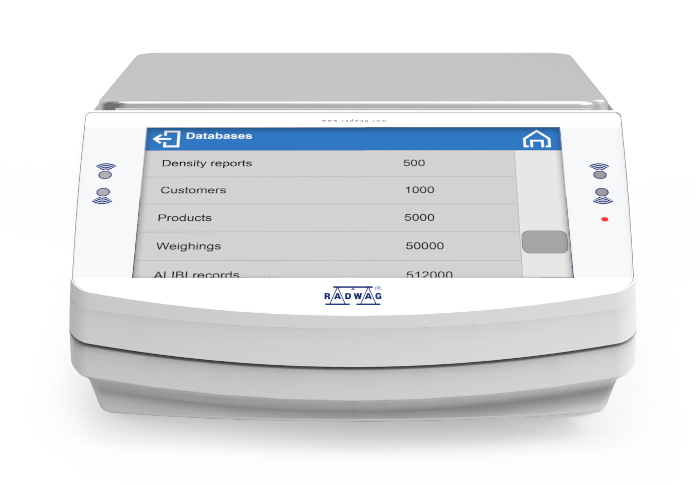

In PS X7.M Precision Balances the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 9 databases:
  • Products (5 000 products)
  • Users (100 users)
  • Packaging (100 packaging types)
  • Customers (1 000 customers)
  • Formulations (100 formulations)
  • Formulations reports (500 reports)
  • Ambient Conditions (10 000 records)
  • Weighings (50 000 records)
  • ALIBI memory (512 000 records)



PS X7.M Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.

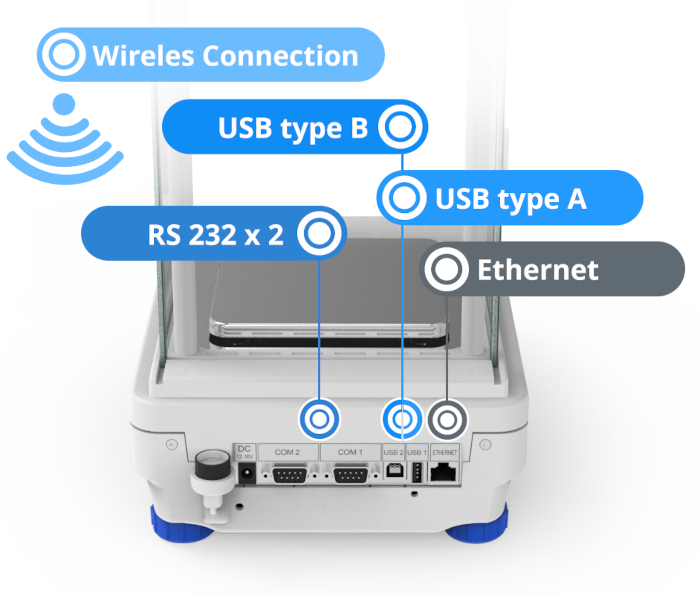

PS X7.M Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7.M balance display gives access to information and operating results directly from the main display panel. PS X7.M Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.

USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.



THBR 2.0 System
The balances work with THBR 2.0 System for ambient conditions monitoring.



Specifications

SPECIFICATIONS

Maximum capacity [Max]

6100g

Minimum load

500mg

Readability [d]

10mg

Verification unit [e]

100mg

Tare range

-6100g

Standard repeatability [5% Max]

5mg

Standard repeatability [Max]

8mg

Standard minimum weight (USP)

10g

Standard minimum weight (U=1%, k=2)

1g

Linearity

±20mg

Stabilization time

1.5s

Adjustment

internal (automatic)

OIML Class

II

Physical parameters
Leveling system

manual

Display

7″ graphic colour touchscreen

Delivery components

Balance, weighing pan, weighing pan shield, power supply

Weighing pan dimensions

195×195mm

Device dimensions W x D x H

333x206x107mm

Packaging dimensions W x D x H

476×381×346mm

Net weight

5.7kg

Gross weight

6.5kg

Protection class

IP 43

Database capacity

Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory

Touch-free operation

2 IR Sensors

Communication interface

2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance: 12 – 15V DC 0.8A max

Power consumption

4 W

Operating temperature

+10 – +40°C

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Storage temperature

-20 – +50°C

Relative humidity

40% – 80%
