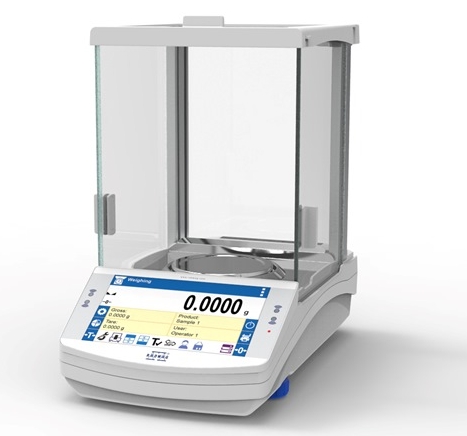

Radwag 220g Capacity 0.1mg Readability ø4″ Analytical Balance AS X7

$3,736.98

AS X7 Analytical Balances are characterized by very good repeatability, high readability and high resolution. These devices, used for weighing small masses, function as laboratory balances and are widely used in laboratories in fields such as pharmacy, physics, chemistry, biology, medicine and others . Ergonomic Mechanical Design The latest AS X7 analytical balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan.

Product total
Options total
Grand total
SKU: AS 220.X7 (WL-113-0004) Category: Brand:

Description

AS X7 Analytical Balances are characterized by very good repeatability, high readability and high resolution. These devices, used for weighing small masses, function as laboratory balances and are widely used in laboratories in fields such as pharmacy, physics, chemistry, biology, medicine and others.





Ergonomic Mechanical Design

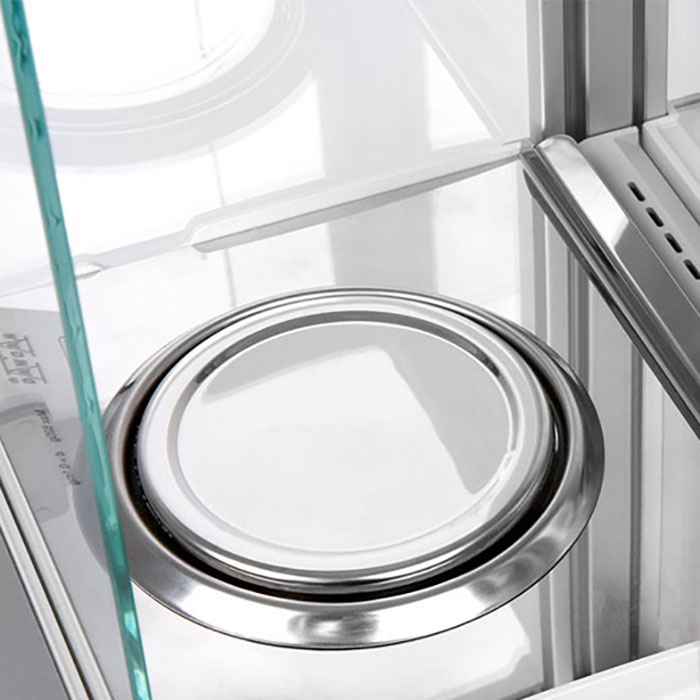

The latest AS X7 analytical balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. With this it is possible to use laboratory glassware of various sizes. New aluminium base is a guarantee for weighing system stability.

Dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, and a special design of guides for weighing chamber panes (no rims) makes keeping the device clean convenient.

Innovative construction solutions increase balance durability and reliability in long-term operation.





Colour Touch Screen

The latest generation 7’’ compact display allows comfortable operation even with lab gloves. The AS X7 Analytical Balances guarantee intuitive communication thanks to a wide selection of widgets that can be freely configured according to user needs.

Personalization provides access to necessary information and work results directly from the main display panel. The user can fully configure sets of buttons and link them to a specific operation mode, and define information and text fields.

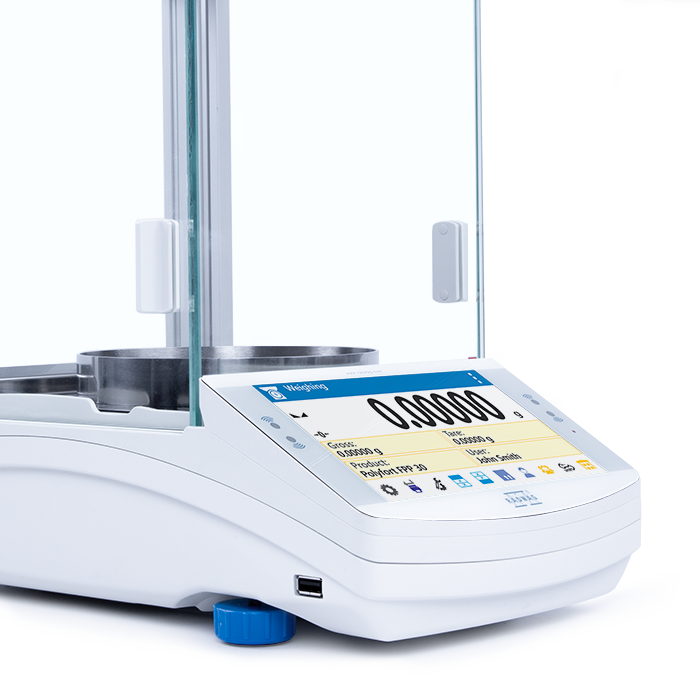

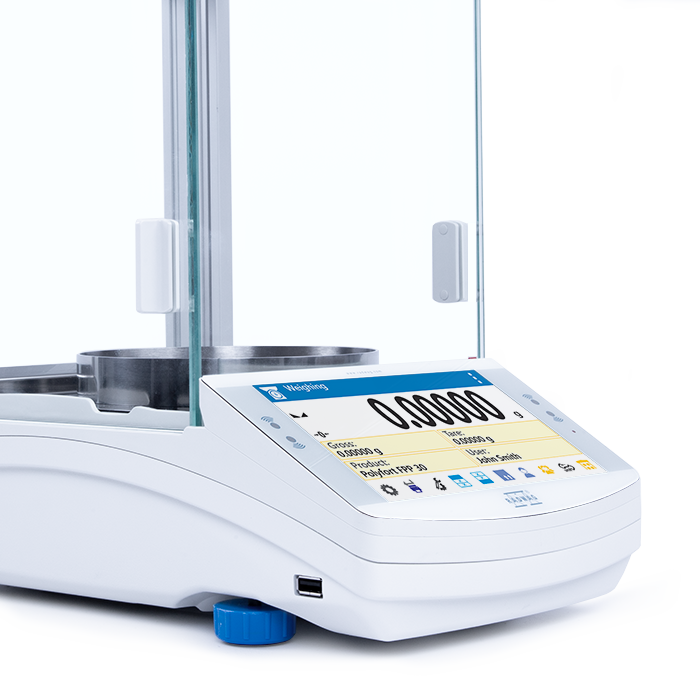

LevelSENSING System

The in-built sensors measure tilt, and display graphic message on the weighing device screen. In accordance with GLP and GMP, the LevelSENSING system simplifies the adjustment, ensures an ongoing control of the level and informs about deviations.

Internal Adjustment
Modernized internal adjustment system guarantees accurate indications in extremely unfavourable conditions.





SMARTLab

AS X7 analytical balances are equipped with a SMARTLab system of an extensive functionality. It ensures support and supervision over the mass measurement process and reduces hazard of error caused by so called “human factor”.

Automatic adjustment

Regardless of external ambient conditions, the automatic internal adjustment system guarantees 100% efficiency in eliminating balance sensitivity deviations.

Data control
Accessing information in the balance depends on the user’s permission level. The administrator can manage three different permission levels.

Sensors
Touch-free operation and programmable sensors facilitate daily work and reduce the range of actions performed during the weighing procedure.

Automatic Weighing Records
Reports on processes and partial weighings can be generated and sent for archiving via the USB to external devices.

Alibi memory
Data safety is assured with the ALIBI memory, which is integrated into AS X7 balances. The memory enables record of up to 500 000 weighings and guarantees continuity of data collection over a long period of time.

Wi-Fi®
Remote control of the balance via devices, operation of which is based on Android, IPhone, Windows10 systems.

Ambient Conditions Monitoring
Communication with RADWAG thermo-hygro-barometer allows monitoring of ambient conditions such as temperature and atmospheric humidity.



Databases

Information system of the AS X7 balances is based on 9 databases that enable operation of many users with numerous products, all the stored data can be subjected to analysis.
Weighing data is recorded in 9 databases:

• Products (5 000 products)
• Users (100 users)
• Packaging (100 packaging types)
• Customers (1 000 customers)
• Formulations (100 formulations)
• Formulations reports (500 reports)
• Ambient Conditions (10 000 records)
• Weighings (50 000 records)
• ALIBI memory (512 000 records).

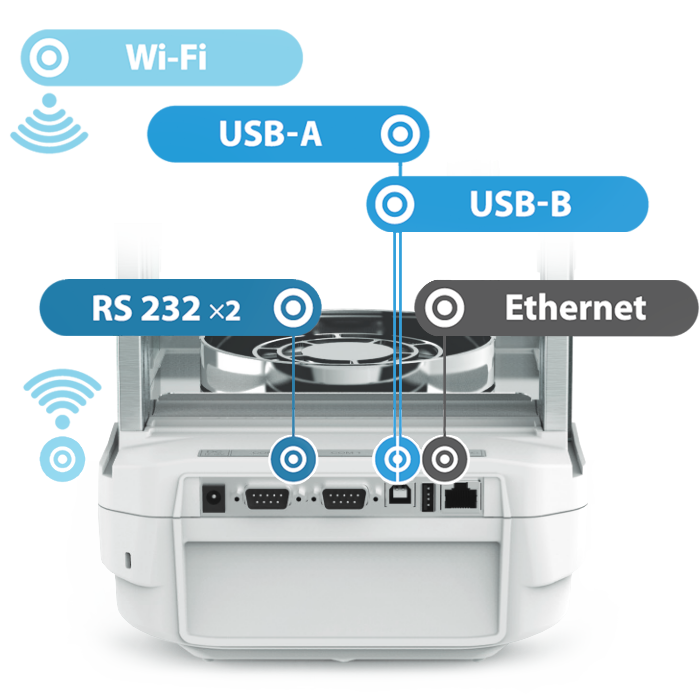

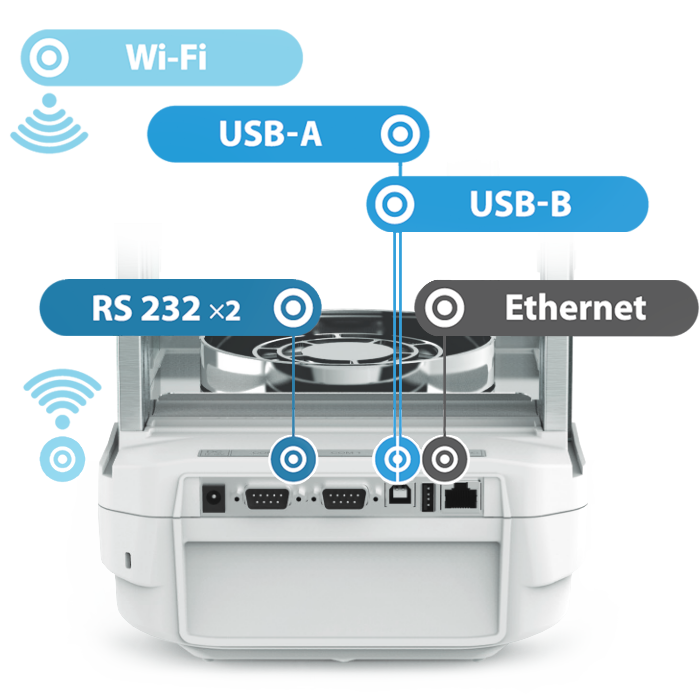

Communication Interfaces

The functionality of AS X7 balances can be expanded using the following communication interfaces: 2×RS232, 2×USB-A, USB-B, Ethernet, Wi-Fi®. The additional USB port located on the front of the balance enables easy and fast communication with the USB flash drive, it is possible to  connect additional devices via this port too. AS X7 balances are equipped with Kensington Lock, which allows to secure the device against theft.





Additional option:
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.


Specifications

SPECIFICATIONS



 Model AS 220.X7 (WL-113-0004)
 NTEP certified Yes
 Power requirements 100 to 240 VAC, 50/60 Hz
 Power consumption max. 250 mA
 Performance
 Maximum capacity: 220 g
 Minimum load: 10 mg
 Readability: 0.1 mg
 Verification unit [e]: 1mg
 Tare range: -220 g
 Standard repeatability (5% Max): 0.06 mg
 Standard repeatability (Max): 0.07 mg
 Standard minimum weight (USP): 120 mg
 Standard minimum weight (U=1%, k=2): 12 mg
 Permissible repeatability (5% Max): 0.09 mg
 Permissible repeatability (Max): 0.1 mg
 Linearity: ±0.2 mg

 Stabilization time

 2 s

 Display

 5" capacitive color touch screen

 Communication interface

 RS232, USB-A, USB-B, WiFi, Ethernet

 Database capacity

 7

 Touch-free operation

 2 IR sensors

 Operating temperature

 10°C to 40°C
 Weighting pan dimensions
 ø4 inches diameter
 Package dimensions
 19.5 x 15.5 x 20.5 inches
 Unit/shipping weight
 16 lbs / 21 lbs
 Warranty Two years
 Downloads Users manual, product brochure, USB driver
 Online books AS X2 PLUS Analytical Balance, Defined Weighing Profiles, USB Free Link
Standard Packages

Standard package



 Part description

 Quantity

Part image

 Radwag 220g Capacity 0.1mg Readability ø100mm Analytical Balance
1 pc

 Universal Power Adapter
 1 pc

 Draft Shield For Pan1 pc

 Pan Assembly1 pc

 Balance Pad1 pc

Start-up Guide1 pc
