Description
Model

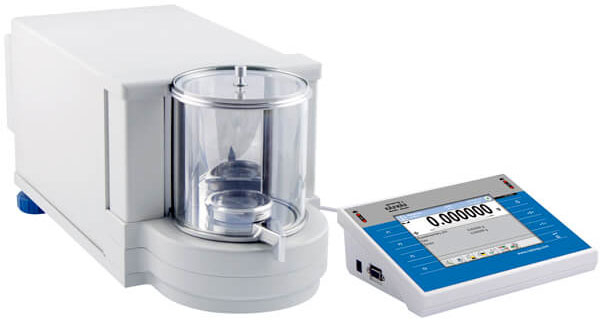

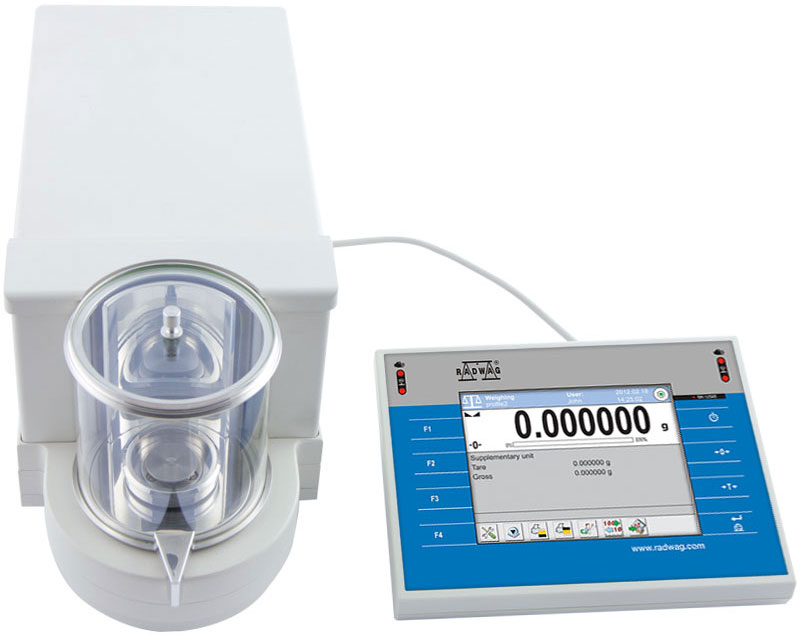

MYA 2.4Y (P/N: WL-101-0071)
Power requirements
100 to 240 VAC, 50/60 Hz Power consumption max.: 700 mA (wireless terminal – 1A)
Capacity
Maximum: 2.1 g Minimum: 100 µg
Performance
Readability: 1 µg Tara range: -2.1 g Standard repeatability (5% Max): 0.5 µg Standard repeatability (Max): 1 µg Standard minimum weight (USP): 1 mg Standard minimum weight (U=1%, k=2): 0.1 mg Permissible repeatability (5% Max): 0.8 µg Permissible repeatability (Max): 1.5 µg Linearity: ±3 µg Stabilization time: max. 8 s
Adjustment
Internal (automatic)
OIML class
I
Display
5.7″ resistive color touch screen
Communication interface
2 x RS232, 2 x USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
Operating environment
Operating temperature: 10°C to 40°C Operating temperature change rate: ±0.3°C/1 hour (±1°C/8 hours) Relative humidity: 40% to 80% Relative humidity change rate: ±1%/hour (±4%/8 hours)
Weighting pan/chamber dimensions

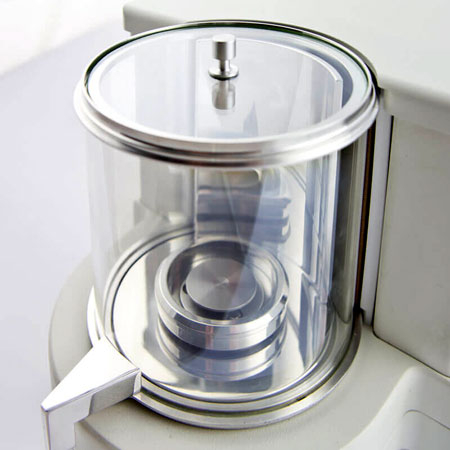

Pan: ø0.6 inch diameter Chamber: ø3.5 inches diameter
Package dimensions
26 x 26 x 18 inches
Unit/shipping weight
20 lbs / 36 lbs
Warranty
Two years
Downloads
User’s manual, product brochure, Detection of vibrations at Balance workstation Micro Sacle Measurement, SQC in Laboratory, Microbalances working conditions
Online books
Ultra-Microbalances & Microbalances, Weighing Profiles, 4Y Series Balances THBR System 2.0
