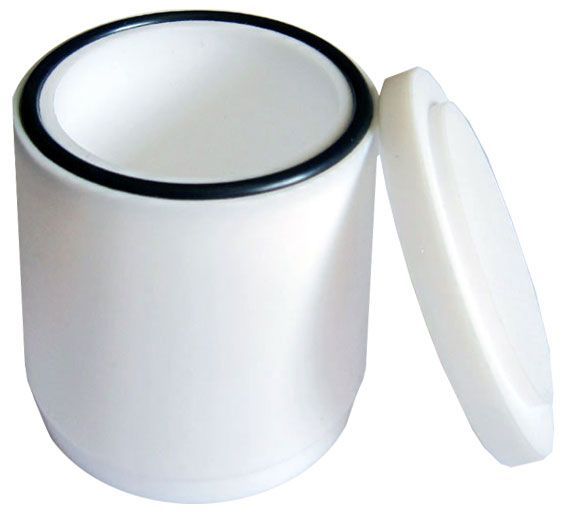

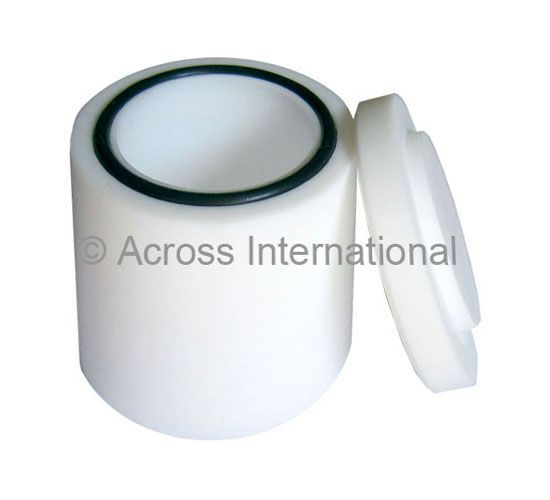

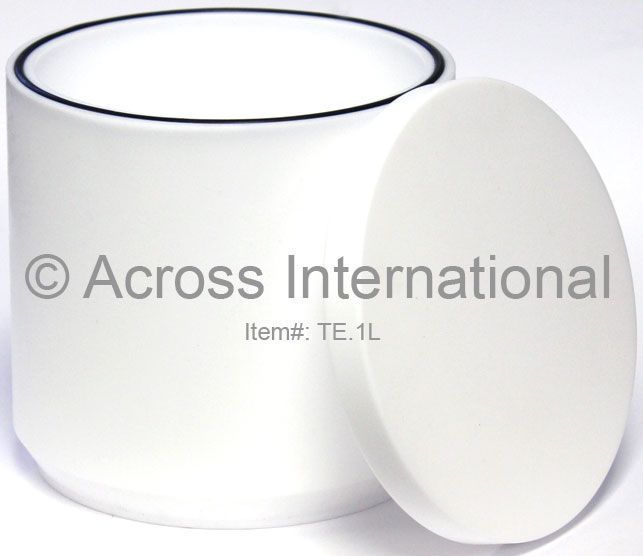

PTFE Grinding Jar with Lid
$276.97
Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples need to be grinded/milled without contamination . Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed size agate grinding balls (see detail table below). Ball configurations Jar configuration Specifications Tolerance: +/- 2-3 mm
Description
Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples need to be grinded/milled without contamination. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed size agate grinding balls (see detail table below).
Ball configurations
| 50ml | 100ml | 250ml | 500ml | 1000ml | |
Ball size/qty | 6mm | 50 | 100 | 250 | 500 | 1000 |
10mm | 8 | 16 | 40 | 100 | 200 | |
20mm |
|
|
| 2 | 3 | |
Jar configuration
| Planetary Ball Mill | Capacity | Compatible Non-Vacuum Jars | Compatible Vacuum Jars | Quantity |
| PQ-N04 | 0.4L | 50ml – 100ml | 50ml | 4 |
| PQ-N2 | 2L | 250ml – 500ml | 100ml – 250ml | 4 |
| PQ-N4 | 4L | 500ml – 1000ml | 250ml – 500ml | 4 |
Specifications
| 50ml | 100ml | 250 ml | 500 ml | 1L | |
| Outer diameter (OD) | 65 mm | 68 mm | 95 mm | 115 mm | 132 mm |
| Inner diameter (ID) | 45 mm | 52 mm | 73 mm | 90 mm | 115 mm |
| Total height | 68 mm | 68 mm | 93 mm | 110 mm | 138 mm |
| Depth | 38 mm | 44 mm | 68 mm | 80 mm | 110 mm |
Tolerance: +/- 2-3 mm
| 50ml | 100ml | 250 ml | 500 ml | 1L | |
| Outer diameter (OD) | 65 mm | 68 mm | 95 mm | 115 mm | 132 mm |
| Inner diameter (ID) | 45 mm | 52 mm | 73 mm | 90 mm | 115 mm |
| Total height | 68 mm | 68 mm | 93 mm | 110 mm | 138 mm |
| Depth | 38 mm | 44 mm | 68 mm | 80 mm | 110 mm |
