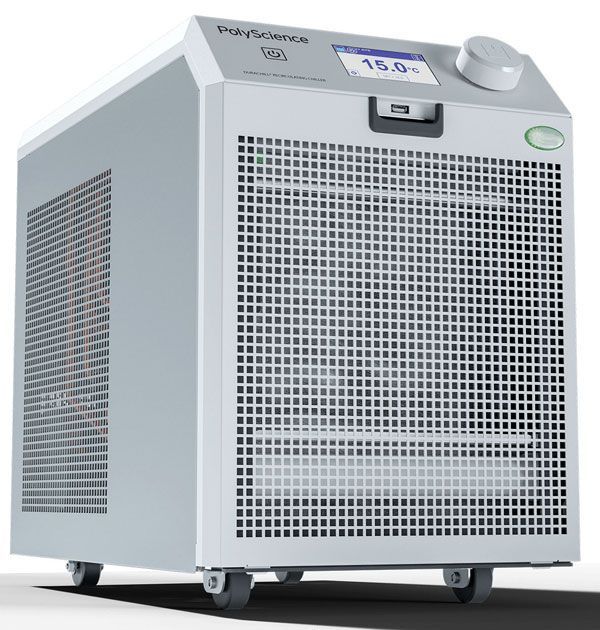

PolyScience DuraChill CA10 -10C to +70C Chiller

PolyScience DuraChill CA10 -10C to +70C Chiller

$13,489.33

Note: pricing is with turbine pump & pre-installed pressure by-pass for setting output pressure below normal 20psi minimum setting.

Product total
Options total
Grand total
SKU: CA10 Category: Brand:

Description

Note: pricing is with turbine pump & pre-installed pressure by-pass for setting output pressure below normal 20psi minimum setting.



Key Features:

  • Large, full-color touchscreen display with intuitive interface and operation in five languages (English, Spanish, French, German, Mandarin)
  • Cooling at ambient temperatures as high as 40°C
  • Choice of ultra-reliable Turbine or Positive Displacement pumps
  • Fluid temperature control range from -10° to 70°C
  • DynamicFilter™ self-cleaning filter system
  • Ultraviolet anti-biological light system
  • User-adjustable temperature, pressure, and flow rate alarms
  • Heating to 70°C, without additional heater for more energy-efficient operation
  • RS232, Status relay, dry contact; optional USB-B and remote probe ports
  • Cool Command™, WhisperCool®






Detail specs on PolyScience’s website

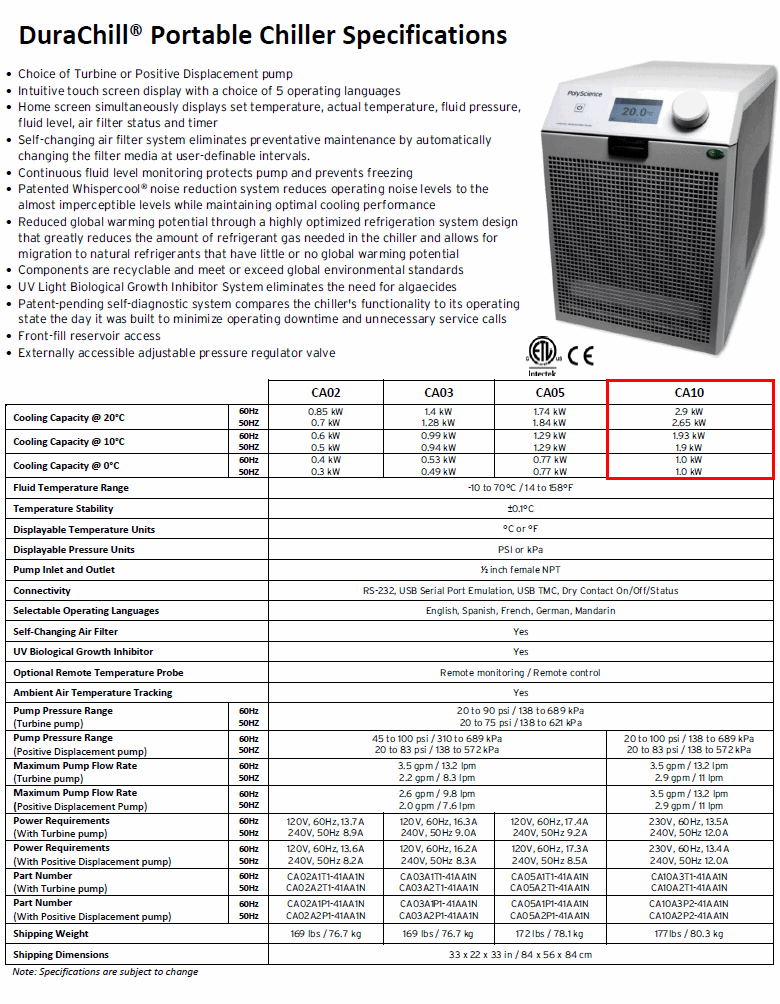

Specifications
DisplayTFT LCD
Fluid Optimization/Specific Heat TuningYes
Flow Rate Maximum (60Hz)3.5 gpm/13.2 l/min
Languages SupportedChinese, English, French, German, Spanish
Pump TypeTurbine
Temperature Stability F±0.2°
Temperature Stability °C±0.1°
Working Temperature Range °C-10° to 70°
Working Temperature Range °F14° to 158°
Nominal Cooling Capacity @ +20C (W)2.9 kW
Reservoir Capacity (gallons)1.1
Reservoir Capacity (liters)4.2
Reservoir DrainYes
Reservoir Liquid Level IndicatorYes
Reservoir/Tank MaterialXLPE
Cleanable Air FiltersYes
External Temperature Control CapabilityOptional
Low Liquid Level ProtectionYes
Maximum Ambient Temperature °C40°
Maximum Ambient Temperature °F104°
Over-Temperature Protection / Failsafe Heater ControlYes
Overall Dimensions (L x W x D) (cm)66 x 38.1 x 55.4
Overall Dimensions (L x W x D) (inches)26.0 x 15.0 x 21.8
RefrigerantR513a
WhisperCool Environmental Control TechnologyYes
Environmental ComplianceYes
Standard Packages

Standard package



 Part description

 Quantity

Part image

 PolyScience DuraChill CA10 -10C to +70C Chiller1 pc
 Power Cord1 pc
 Packing Kit (Includes Manual and other documents)
1 pc
 Fitting Kit (See Below for Contents)
1 pc
 ½” MNPT x 5/8” Barb2 pc
 ½” MNPT x ½” Barb2 pc
