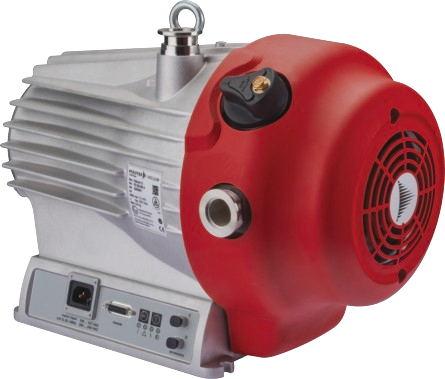

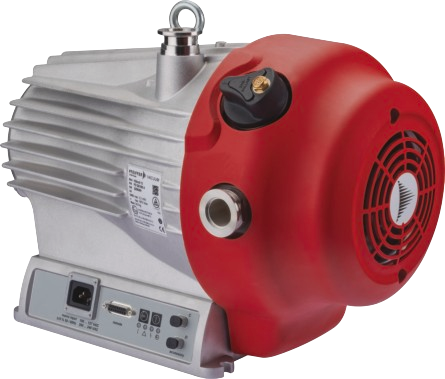

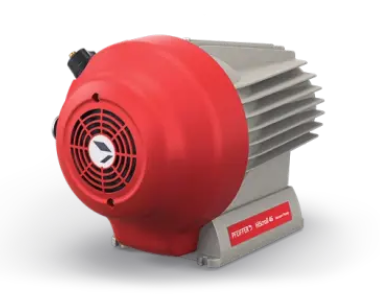

Pfeiffer HiScroll 46 Pump
$16,423.24
Pfeiffer HiScroll 46 Pump Scroll vacuum pumps use two non-contact scrolls to generate vacuum. Pfeiffer enhances this technology with a precisely engineered design that reduces friction and mechanical noise, resulting in ultra-quiet operation and very low vibration levels . Their dry compression ensures clean vacuum generation, making scroll vacuum pumps particularly reliable for sensitive applications or in laboratories.
Description
Pfeiffer HiScroll 46 Pump
Scroll vacuum pumps use two non-contact scrolls to generate vacuum. Pfeiffer enhances this technology with a precisely engineered design that reduces friction and mechanical noise, resulting in ultra-quiet operation and very low vibration levels.
Their dry compression ensures clean vacuum generation, making scroll vacuum pumps particularly reliable for sensitive applications or in laboratories.
High performance
Fastest pump-down time in its class, highly energy-efficient and powerful interior permanent magnet (IPM) synchronous motor generating less heat compared to conventional drives
Quiet
Sound pressure level less than 47 dB(A) in single-phase version
Compact
Smallest and lightest vacuum pump in its performance class, perfectly suited for applications in laboratories
Clean and ultra-quiet vacuum generation with scroll technology
Dry scroll vacuum pump bundles – ready for immediate use
Pfeifer offers attractive product bundles with everything you need to operate your scroll vacuum pump right away.
The comfort bundle features a HiScroll vacuum pump, a main cable for power supply, and a silencer that also functions as a dust filter. This silencer can be connected to the exhaust of the vacuum pump with the included centering and clamping rings.
The expert bundle provides the same accessories as the comfort bundle as well as a control unit and a HiScroll model with a built-in pressure sensor. With this sensor, you can use intelligent operating modes, such as automatically adjusting the speed of the pump to the required vacuum level. Additionally, the control unit OmniControl allows you to regulate the settings of your pump as needed to tailor it to your application.
Expert Bundle
| Item | Part Number |
|---|---|
| HiScroll including integrated gauge | PD SX0 010 B |
| ES 25 M dust separator DN 25 ISO-KF | PD Z10 000 |
| Outer centering ring DN 25 ISO-KF | 12ZZAR025 |
| Clamping ring DN 20 / 25 ISO-KF | 110BSR025 |
| OmniControl 001 with 1 Gauge I/O | PE D40 100 0 |
| Adapter RS 485 M12 | PE 100 150 -X |
| Interface cable M12m / M12m length: 3m | PM 061 283 -T |
| Außenzentrierring | 11ZZAR025 |
| Interface cable M12m / M12m length: 3m | PM 061 284 -T |
Comfort Bundle
| Item | Part Number |
|---|---|
| HiScroll 46 | PD SX0 000 B |
| ES 25 M dust separator DN 25 ISO-KF | PD Z10 000 |
| Outer centering ring DN 25 ISO-KF | 12ZZAR025 |
| Clamping ring DN 20 / 25 ISO-KF | 110BSR025 |
Pfeiffer also provides standard vacuum systems that combine turbomolecular with scroll vacuum pumps as backing pumps.
These vacuum pump units are ideal for applications requiring high to ultra-high vacuum, such as gas analysis. They are easy to use with a touch display and allow for process monitoring as well as measurement data recording.
Markets & applications
Analytics and R&D
- Freeze Drying, Lyophilization
- Central Vacuum
- Leak Detection
- Laboratory Vacuum
- Cryogenics
- High Energy Physics
- Mass Spectrometry
- Photonics Research
- Ultra-High Vacuum
Automotive and transport
- Fluid evacuation & charging
- Leak Detection and EoL Testing
- E-Beam Welding
- 3D Printing
Chemical industry
- Freeze Drying, Lyophilization
- Leak Detection
Electric power generation
- Green Energy Generation
Hospitals and healthcare facilities
- Mass spectromer
- Medical Accelerator
- Diagnostic Imaging
- H2O2 Sterilization
Hydrogen
- Leak Detection and EoL Testing (Master)
- Hydrogen Storage and Distribution
Lithium-ion battery production
- Mixing
- Electrolyte filling
- Leak Detection and EoL Testing (Master)
- Vacuum drying
Metallurgy
- E-beam welding
- 3D Printing
Pharmaceutical industry
- Freeze Drying, Lyophilization
- Leak Detection
- Laboratory Vacuum
Plastics processing
- Injection Moulding
Refridgeration
- Leak Detection and EoL Testing
- Vacuum Drying
- Vacuum Evacuation and Filling
Scientific instruments
- Mass Spectrometry
- Surface Analysis
- Electron Microscopy
Technical gases
- Liquefaction
- Insulation Vacuum
- Gas Transport
- Bottle Filling
Thin film coating
- Optical Coating
- Lab coating
|
