Natural Brazilian Agate Grinding Jar with Lid
$193.46
H igh purity natural Brazilian agate (99.91% SiO 2 ) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls (see detail table below). Ball configurations Jar configuration Tolerance: +/- 2-3 mm Specifications Tolerance: +/- 2-3 mm
Description

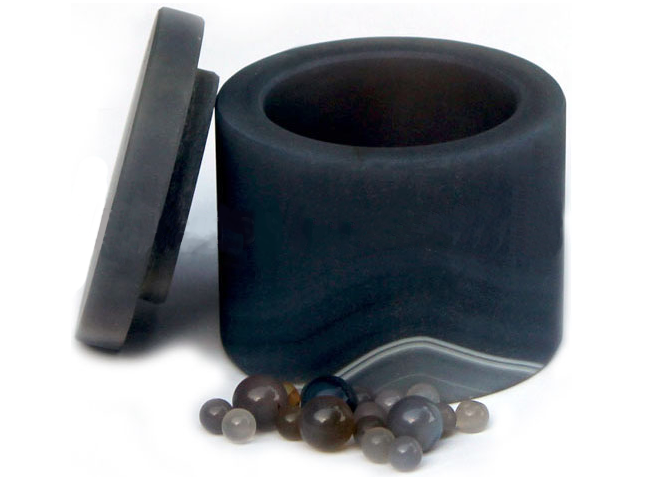

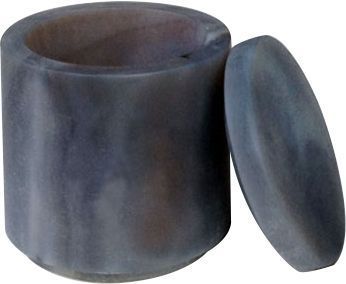

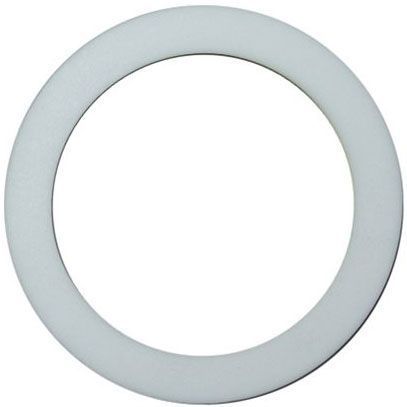

High purity natural Brazilian agate (99.91% SiO2) ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls (see detail table below).
Ball configurations
| 50ml | 100ml | 500ml | 1000ml | |
Ball size/qty | 6mm | 50 | 100 | 500 | 1000 |
10mm | 8 | 16 | 100 | 200 | |
20mm |
|
| 2 | 3 | |

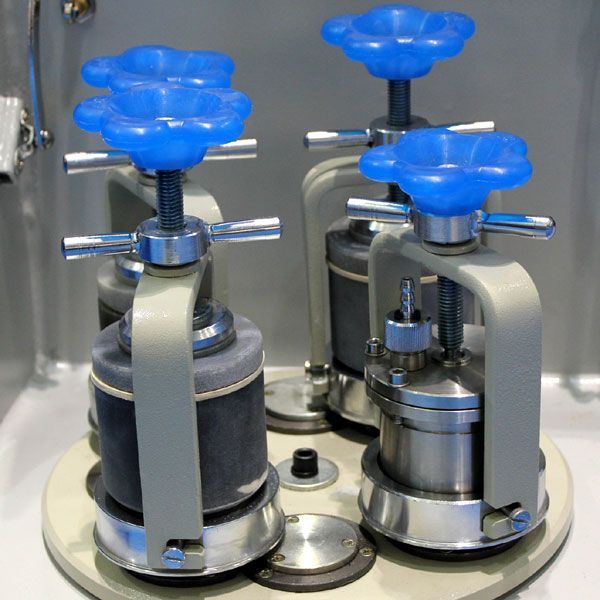

Jar configuration
| Planetary Ball Mill | Capacity | Compatible Non-Vacuum Jars | Compatible Vacuum Jars | Quantity |
| PQ-N04 | 0.4L | 50ml – 100ml | 50ml | 4 |
| PQ-N2 | 2L | 250ml – 500ml | 100ml – 250ml | 4 |
| PQ-N4 | 4L | 500ml – 1000ml | 250ml – 500ml | 4 |
Tolerance: +/- 2-3 mm
Specifications
| Jar size | 50 mL | 100 mL | 500 mL | 1L |
| Compatible ball mill | PQ-N04 | PQ-N04 | PQ-N2, PQ-N4 | PQ-N4 |
| Outer diameter (OD) | 65.52 mm | 75 mm | 115 mm | 135 mm |
| Inner diameter (ID) | 45.40 mm | 54 mm | 90 mm | 105 mm |
| Total height | 60 mm | 71 mm | 110 mm | 140 mm |
| Depth | 39 mm | 45 mm | 82 mm | 110 mm |
| Total weight | 0.8 lbs. | 1.4 lbs. | 3.5 lbs. | 6 lbs. |
Tolerance: +/- 2-3 mm
| Jar size | 50 mL | 100 mL | 500 mL | 1L |
| Compatible ball mill | PQ-N04 | PQ-N04 | PQ-N2, PQ-N4 | PQ-N4 |
| Outer diameter (OD) | 65.52 mm | 75 mm | 115 mm | 135 mm |
| Inner diameter (ID) | 45.40 mm | 54 mm | 90 mm | 105 mm |
| Total height | 60 mm | 71 mm | 110 mm | 140 mm |
| Depth | 39 mm | 45 mm | 82 mm | 110 mm |
| Total weight | 0.8s. | 1.4s. | 3.5s. | 6s. |
