MF30 Exhaust Oil Mist Filter for Edwards E2M28 Vacuum Pumps
$2,931.13
Overview Mist filters capture oil mist from the outlet of pumps, which would otherwise be ejected into the atmosphere. This may happen when you use gas ballast or when you pump high gas throughputs. You can also return oil trapped in the mist filter back to the pump, although you must ensure that the process gases will not contaminate the pump or pump oil. The MF30 is suitable for E2M28 pumps.
Description
Overview
Mist filters capture oil mist from the outlet of pumps, which would otherwise be ejected into the atmosphere. This may happen when you use gas ballast or when you pump high gas throughputs. You can also return oil trapped in the mist filter back to the pump, although you must ensure that the process gases will not contaminate the pump or pump oil.
The MF30 is suitable for E2M28 pumps. It is very efficient at 99.85% DOP test. You can monitor the oil level through the sight-glass provided.

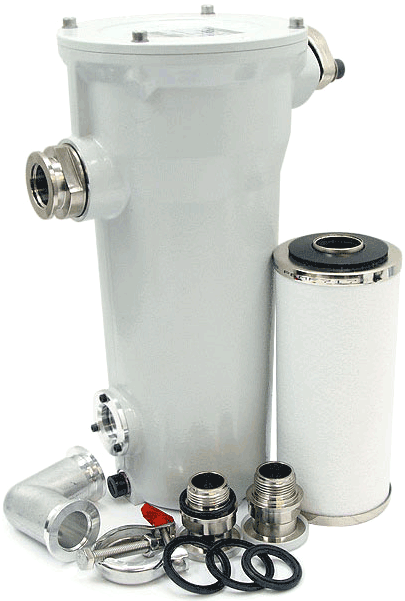

Supplied with NW25 elbow, NW25 clamp, NW25 to 3/4 inch BSP adapter and NW25 Co-Seal.
Features and Benefits
- Protection from oil mist emissions as required by COSHH and health and safety regulations
- Use of optional oil return kits results in reduced oil level maintenance and savings in pump oil
- If the oil element becomes blocked, an integral pressure relief valve opens
