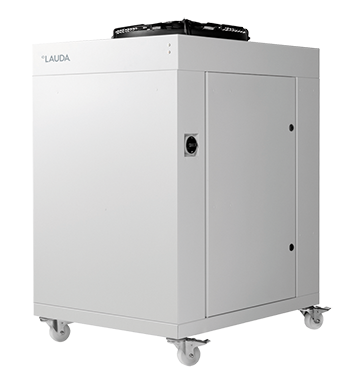

LAUDA Ultracool UC 14 Process Circulation Chiller

LAUDA Ultracool UC 14 Process Circulation Chiller

$24,801.88

Product total
Options total
Grand total
SKU: LAUDA-UC14 Category: Brand:

Description

400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Features:

  • Increased temperature stability of ± 0.5 K
  • Operational in ambient temperatures down to −15 °C
  • Reduced tank volume results in reduction in installation and operating costs
  • Reduced footprint compared to comparable previous models
  • Extended working temperature range from −10 to 35 °C
  • Bi-frequency power supply allows the same model types to be used worldwide
  • Ethernet interface included as standard
  • °C or °F selectable via menu
  • Menu language selection: German, English, Spanish and French
  • Premium quality centrifugal pumps with an internal bypass
  • Water circuit consisting of flexible industrial hoses
  • Numerous options and accessories for customer-specific adaptations, e.g. speed-controlled pumps, flow meters
  • Suitable for outdoor installation (IP 54)



Specifications

Technical data (according to DIN 12876)



ProductLAUDA Ultracool UC 14
Working temperature max. °C35
Working temperature min. °C-10
Temperature stability ±K0.5
Ambient temperature min. °C-15
Ambient temperature max. °C50
Cooling output at 25 °C kW22.4
Cooling output at 20 °C kW20.3
Cooling output at 10 °C kW15.8
Cooling output at 0 °C kW11.1
Pump pressure max. bar4.2
Pump flow max. L/min130
Pump connection thread mmRp 1
Volume water tank L35
Noise level dB (A)61.3
Weight kg175
