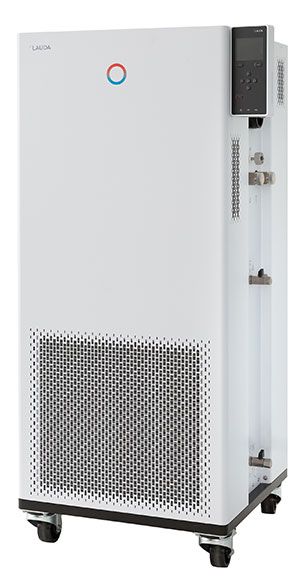

LAUDA Integral IN 750 XT -45 to 220 C Process thermostat

From -90 to 320 °C: The powerful Integral XT process thermostats use the flow principle with cold oil superimposition. It allows users to use a wide temperature range with one temperature control medium. The electronically controlled, magnetically coupled eight-stage LAUDA Variopump allows the optimum thermal connection of the flow rate both for pressure-sensitive consumers and for applications with high hydraulic resistance. The modular interface concept ensures maximum networking of the user processes.

Features:

• NRTL certified to UL/CSA standards
• Flow system
• Side mounted pump connections
• Digital interfaces
• Service friendly housing
• Permanently mounted operation unit with colored display
• Optimized hydraulic system (filling volume, pressure drop, expansion volume)
• Significantly improved flow rates
• Flow control as accessory
• Intuitive product set up by automated tools
• More service friendly due to new design concept
• Integrated webserver via Ethernet to computer or local LAN
• PT100 socket and alarm contact for process control
• USB ports for updating and datalogging
• Remote control panel Command Touch (accessory)
• Interface modules RS232, Profibus, Ethercat, etc. for digital communication (accessory)
• LAUDA IOT Cloud connectivity for online monitoring (accessory, in preparation)

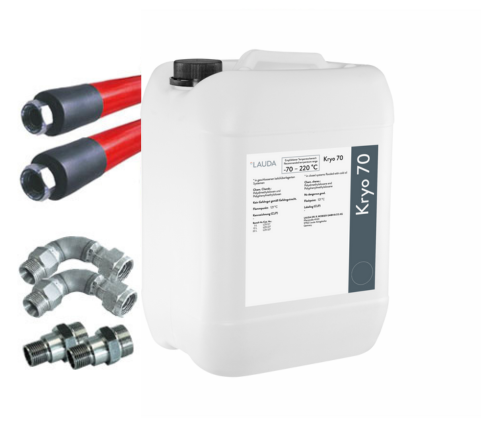

LAUDA IN750 XT adapters, tubing, and fluid for Ai 100L glass reactors

• P/N LZM 088 x 2; 2m insulated tubing
• P/N EOV 207 x 2; M30 male to 3/4″ NPT male
• P/N LZB 231 x 5; KRYO 70A  (-70C to 220C)- 10L

LAUDA IN750 XT adapters, tubing, and fluid for Ai 100L stainless steel reactors (no fluid)

• P/N LZM 088 x 2; 2m insulated tubing
• P/N UD 663 x 2; M38 female to M30 male adapter
• P/N EOV 224x 2; M38 male to 1” NPT male
• P/N LZB 231 x 4; KRYO 70A  (-70C to 220C)- 10L
