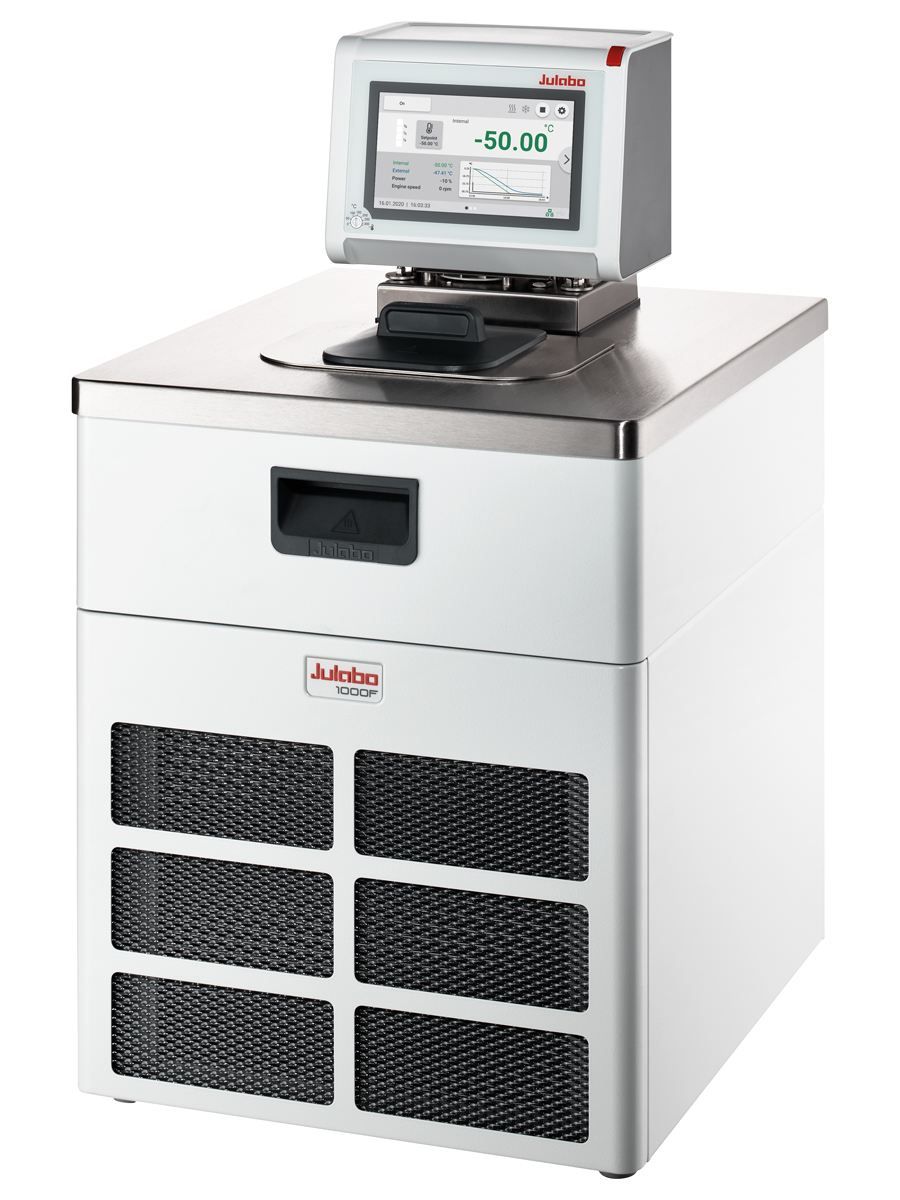

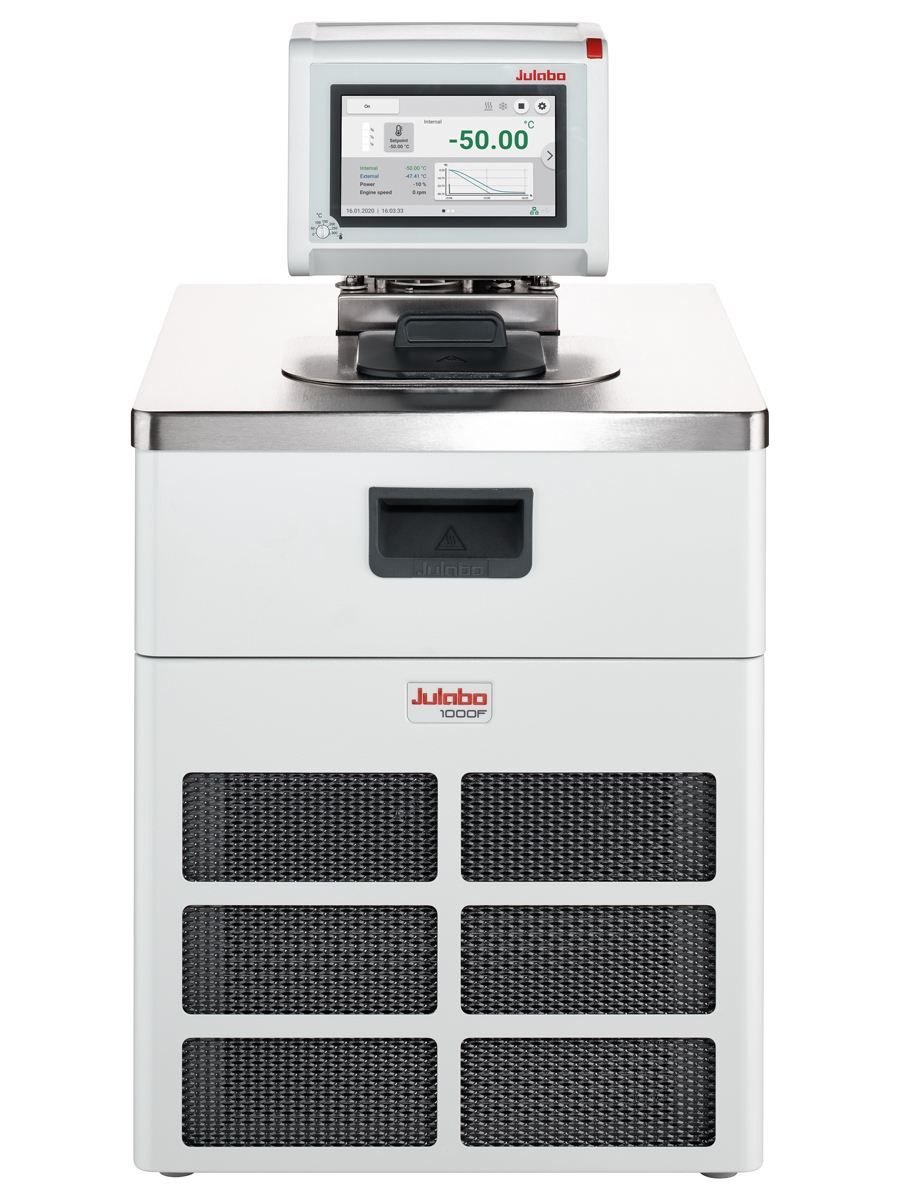

Julabo MS-1000F Magio Chiller Heater
$29,213.88
MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
Description
MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
(Canadian and US NRTL Certified for both 110v & 220v)
Features:
- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
Julabo MS-1000F Ai glass reactor package with adapters and tubing
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4″ male x 1
Julabo MS-1000F Ai glass reactor package with adapters, tubing, and fluid
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4″ male x 1
- QTY1. P/N 8891402 Julabo Thermal C5 – 10 Liter x 1
- QTY1. P/N 8891403 Julabo Thermal C5 – 5 Liter x 1
|
Standard package
|
