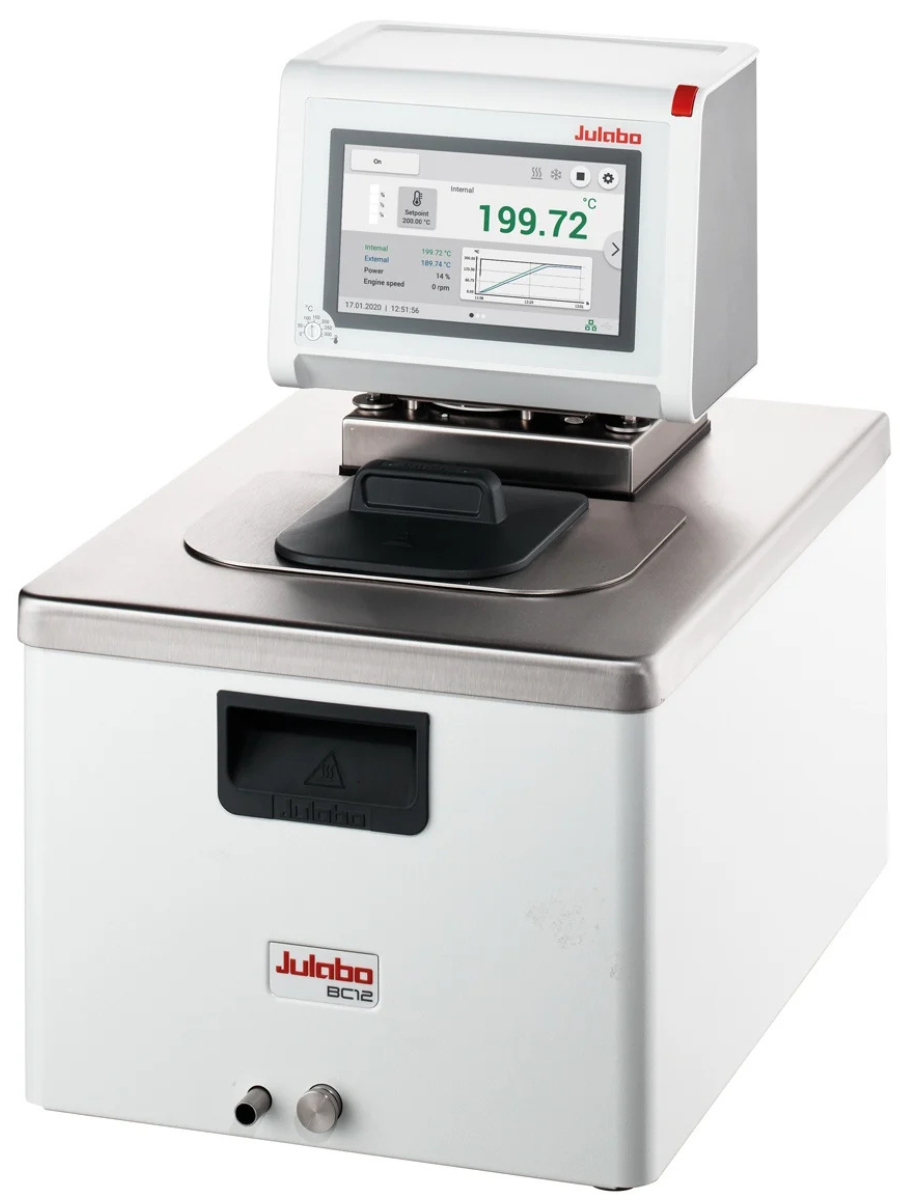

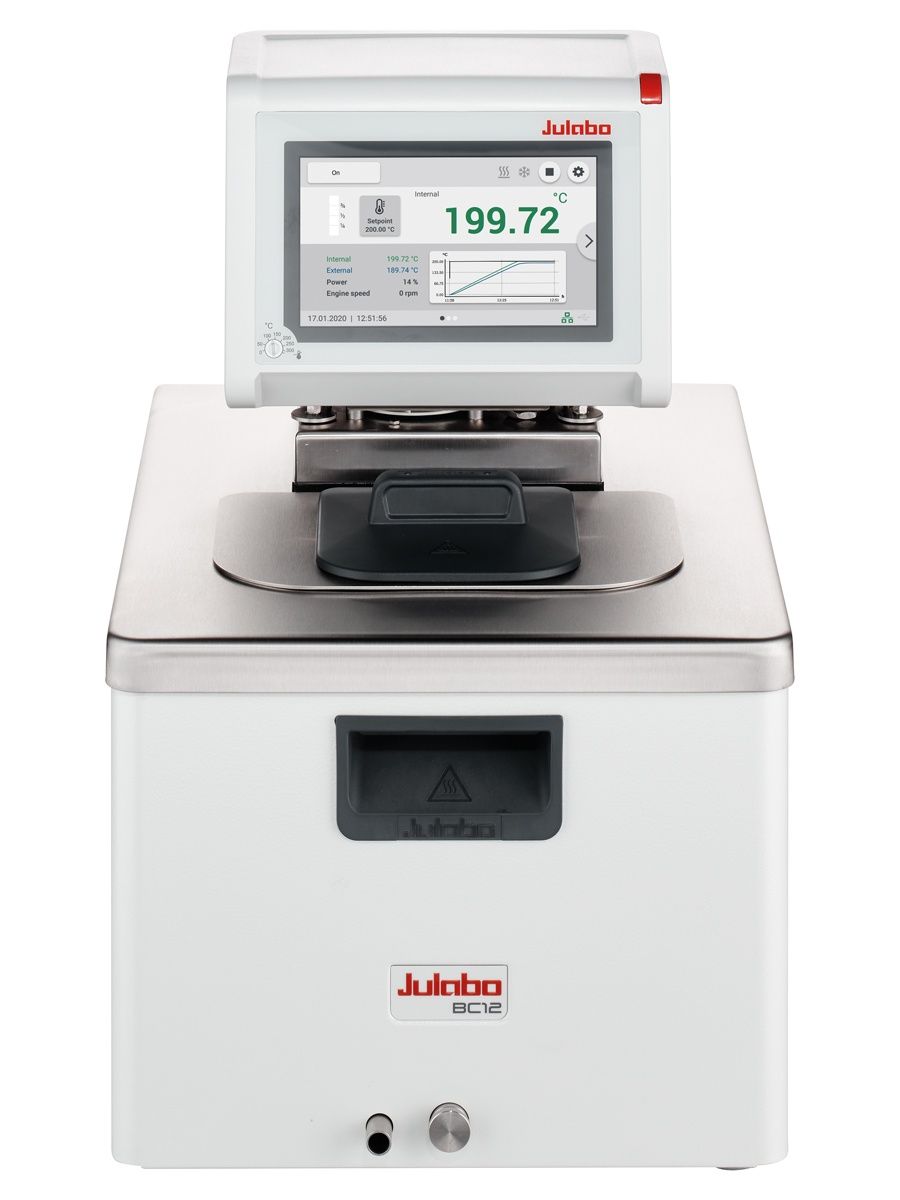

Julabo MAGIO MX-BC12 Heating Circulator With 12L Bath Tank And Lid 200-230V 50-60Hz (Canadian and US NRTL Certified)

MAGIO MX-BC12 Heating Circulator

Like all circulators in the MAGIO range, the heating circulators are characterised by premium quality and high performance combined with intuitive usability. The devices offer extra powerful pressure and suction pumps to meet the most challenging demands for temperature control of external applications. Samples can also be temperature controlled in the internal bath of the high-quality, insulated and closed bath tank.

High resolution TFT touch display The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.

Key Benefits:

• TFT Color Touchscreen
• Multilingual
• Input for setpoints, warning/safety values and menu functions
• ICC (Intelligent Cascade Control), self-optimizing temperature control
• ATC3 3-Point-Calibration
• Pt100 External sensor connection for measurement and control
• Continuously variable pressure/suction pump
• Early warning system for low liquid level (DBGM 203 06 059.8)
• Adjustable high temperature cut-out, visible via display
• RS232/RS485, USB and Ethernet interface for online communication
• Integrated programmer
• Built-in cooling coil and drain tap

Product features:

• Models for internal and external applications from 3 to 26 liters
• Ideal for demanding external applications
• Simple control of complex applications
• Continuously adjustable, extremely powerful pressure / suction pump
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Flow rate 16 … 31 l / min, pressure 0.24 … 0.92 bar, suction 0.03 … 0.4 bar
• Integrated programmer
• Integrated external Pt100 connection
• USB connection
• RS232 interface for online communication
• Ethernet analog interfaces (accessory)
• High-quality thermal insulation of the bath tanks Profibus DP (Accessory)
• Modbus
• RS232/RS485 interface for online communication
• Connections for solenoid valve
• Strong heating capacity of 3 kW (MX-Z) and 2 kW (MS-Z)
