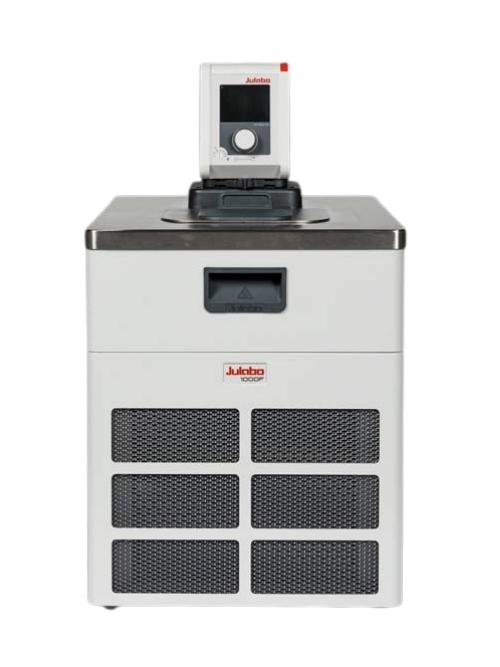

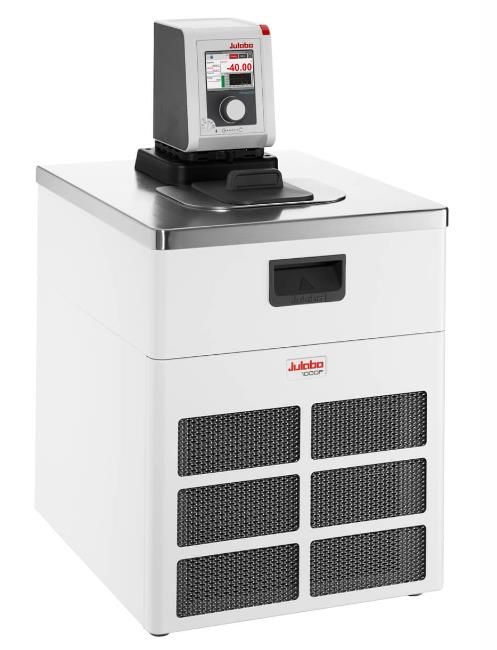

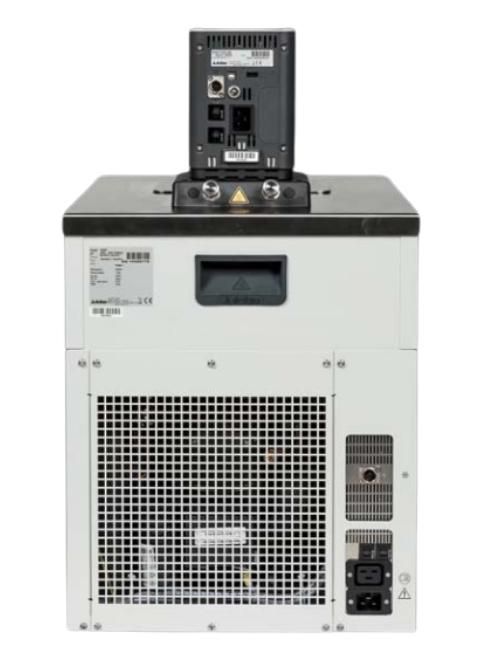

Julabo DYNEO DD-1000F -50C +200C Refrigerated/Heating Circulator
$23,224.97
DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low-temperature capabilities from -20 °C to -50 °C with an upper-temperature limit of 200 °C. The D YNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
Description
DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low-temperature capabilities from -20 °C to -50 °C with an upper-temperature limit of 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with a central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control, and data-logging with digital options including RS232 port or an analog module interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tanks with integrated drain port.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
(Canadian and US NRTL Certified for both 110v & 220v)
Features:
- Powerful cooling machines
- Suitable for internal and external applications
- Optimized cooling coil design saves space in the bath tank
- Powerful and infinitely adjustable pressure pump
- Flow rate 27 l/min, pressure 8.7 psi
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- The central rotary knob (controller) simplifies the operation
- Integrated programmer for 8 x 60 program steps
- Integrated external Pt100 connection
- USB port
- RS232 interface or analog interfaces (optional)
- Bath cover included with delivery
- An integrated drain makes emptying liquid easy and safe.
Julabo DD-1000F Ai glass reactor package with adapters and tubing
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4″ male x 1
Julabo DD-1000F Ai glass reactor package with adapters, tubing, and fluid
- QTY2. P/N8930222 1.5m single insulated tubing, M16x1 f x 2
- QTY2. P/N 8891243 M16x1 m/m adapter x 2
- QTY1. P/N 8890071 Pair, M16x1 f to M24x1.5 m x 1
- QTY1. P/N 8891661 Pair, M24x1.5 f to NPT 3/4″ male x 1
- QTY1. P/N 8891402 Julabo Thermal C5 – 10 Liter x 1
- QTY1. P/N 8891403 Julabo Thermal C5 – 5 Liter x 1
|
