Description
General information & temperature controller
Temperature range
-90…250 °C
Temperature stability
±0,01 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0,01 °C
Alarm message
optical, acoustical
Controller

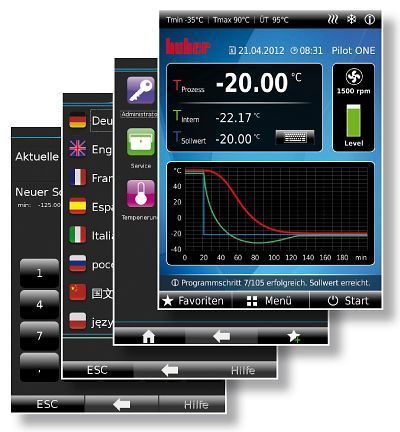

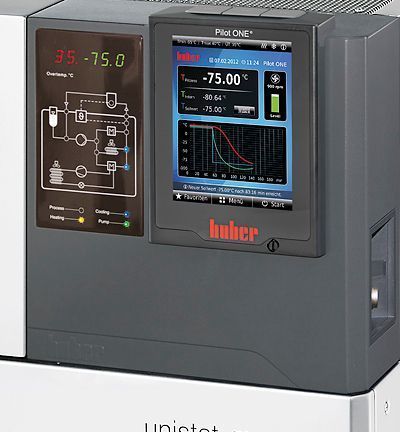

Pilot ONE (E-grade “Professional”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
540 x 654 x 1500 mm
Weight
— kg
Heating / cooling capacity
Heating capacity
6 kW
Cooling capacity
250
200
100
0
-20
-40
-60
-80
°C
4
4
3,8
3,6
3,5
3,5
2,2
0,7
kW
Cooling machine
air-cooled
Refrigerant 1. stage
R452A
Refrigerant 2. stage
R23 (0,8 kg)
Circulation pump
Pressure pump max.
40 l/min ; 0,9 bar
Pump connection
M30x1,5 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100
Analogue input
via optional Com.G@te
Analogue output
via optional Com.G@te
Digital interface

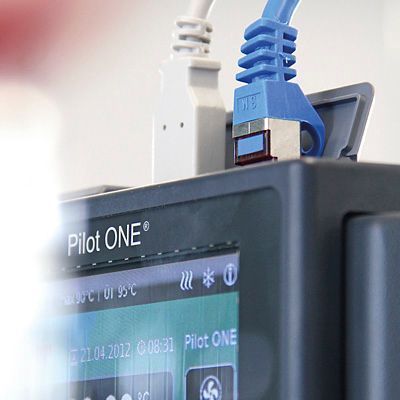

RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C
Filling volume min.
3,5 Litres

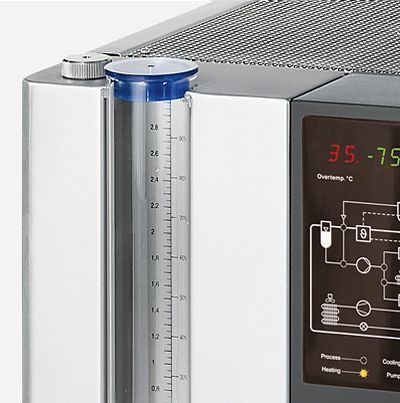

Volume of expansion
5,3 Litres
