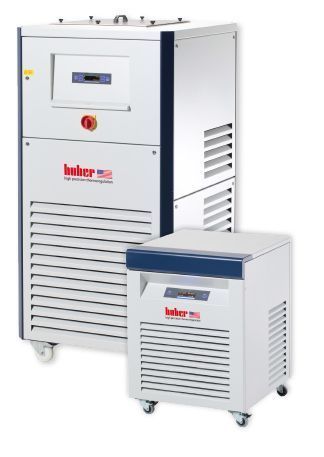

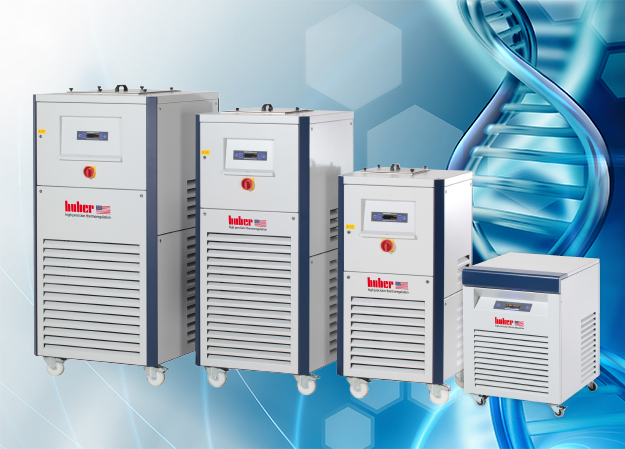

Huber CS -20°C Chiller
Huber CS -20°C Chiller - Image 2
Huber CS -20°C Chiller - Image 3

Huber CS -20°C Chiller

$25,539.53

The new Huber CS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. The new chillers further reduce water consumption and lower the operating costs for many applications. The investment pays itself off after a short time because of the water savings and the low purchase price.

Product total
Options total
Grand total
SKU: Huber-CS Category: Brand:

Description

The new Huber CS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. The new chillers further reduce water consumption and lower the operating costs for many applications. The investment pays itself off after a short time because of the water savings and the low purchase price.

With a cooling power up to 30 kW, the devices are particularly suited for constant temperature control for laboratory applications, e.g. for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS-devices, ICP-devices, extraction, distillation and many more.



Huber CoolSmart features

  • Working temperature from -20 °C to +15 °C
  • Quiet operation less than 78 db
  • Cooling power up to 30 kW
  • Economic and ecological solution to eliminate costly water waste

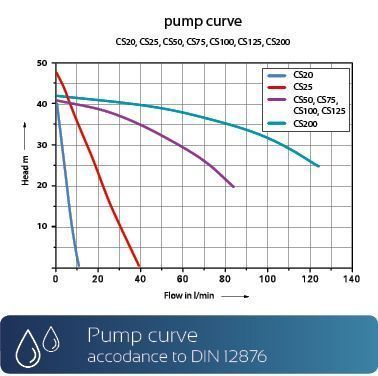

  • Pump performance up to 125 l/min
  • Easy to use and maintenance free
  • Power supply option: CS50, CS75 and CS100 can be configured for voltage 208V 3~ 60Hz
  • All models are air-cooled
  • ETL certified



* Power supply option: CS50, CS75 and CS100 can be configured for voltage 208V 3~ 60Hz. All models are air-cooled.


Specifications

Indoor

ModelTemp.
range		Pump capacity max. /
pump connection		Cooling power
(kW) at (°C)		Noise
level		DimensionsVoltage
 (°C)(l/min)(bar) 15100-10-20(dB)W x D x H (inch)
CS 25-20...15504.51/2"3.52.51.60.980.76022.8 x 26.0 x 32.3208V 2
~ 60Hz
CS 35-20...15304.01/2"4.03.52.12.00.86222.8 x 26.0 x 32.5208V 2
~ 60Hz
CS 50-20...15834.03/4"854.23.526326.8 x 28.7 x 59.8460V 3
~ 60Hz *
CS 50-H-20...85833.73/4"854.23.526326.8 x 28.7 x 59.8460V 3
~ 60Hz *
CS 100-20...15834.03/4"18109.57.54.57031.5 x 33.5 x 65.6460V 3
~ 60Hz *
CS 100-H-20...85833.73/4"18109.57.54.57031.5 x 33.5 x 65.6460V 3
~ 60Hz *
CS 200-20...151254.21"282018159.57855.1 x 39.4 x 70.9460V 3
~ 60Hz
CS 200-H-20...851254.21"282018159.57855.1 x 39.4 x 70.9460V 3
~ 60Hz
  • Power supply option: CS50 and CS100 can be configured for voltage 208V 3~ 60Hz.
    All models are air-cooled.





Indoor/Outdoor

 (°C)(l/min)(bar) 15-15-20-30-40(dB)W x D x H (inch)
LCS 80-45...15534.71"202018128.57779.3 x 43.3 x 78.7460V 3~ 60Hz





Outdoor (OD)

CS 250-HT OD+10...22506.53/4"3128---7855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 330 OD-20...151254.71"42352517117855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 330-H OD-20...851254.71"42352517117855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 550 OD-20...151254.71"70603320127955.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 550-H OD-20...851254.71"70603320127955.1 x 39.4 x 70.9460V 3
 ~ 60Hz





Special for Outdoor:

  • 100% of rated cooling power up to +35°C ambient temperature
  • Reduction of cooling power above +35°C ambient temperature
  • Suitable for outside mounting and winter operation (min. ambient temperature -20°C)
  • Delivered with remote control incl. 20m connection cable
  • Protection classification of the electrical components IP54
  • Max ambient temperature +50°C
<td class="auto-style23"
ModelTemp.
range		Pump capacity max. /
pump connection		Cooling power
(kW) at (°C)		Noise
level		DimensionsVoltage
 (°C)(l/min)(bar) 15100-10-20(dB)W x D x H (inch)
CS 250-HT OD+10...22506.53/4"3128---7855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 330 OD-20...151254.71"42352517117855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 330-H OD-20...851254.71"42352517117855.1 x 39.4 x 70.9460V 3
 ~ 60Hz
CS 550 OD-20...151254.71"70603320127955.1 x 39.4 x 70.9
Standard Packages

Standard package



 Part description

 Quantity

Part image

HUBER CS-Model1 pc

Hose Nozzles2 pc

User's manual in a CD or USB1 pc
