Highly Polished Tungsten Carbide Grinding Jar with Lid
$1,251.23
Highly polished tungsten carbide grinding jar set. Each jar set includes grinding jar, lid and rubber sealing gasket. Specifications Dimensions Jar configurations Specifications Tolerance: +/- 2-3 mm
Description

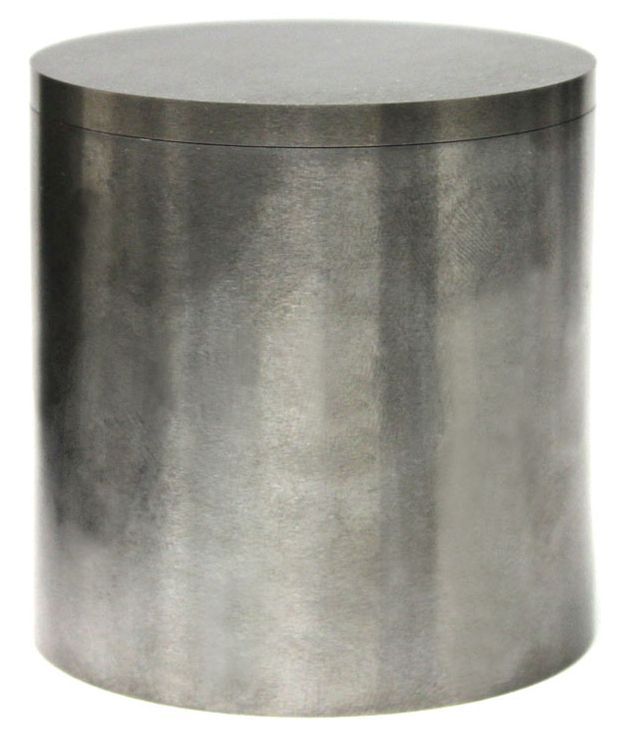

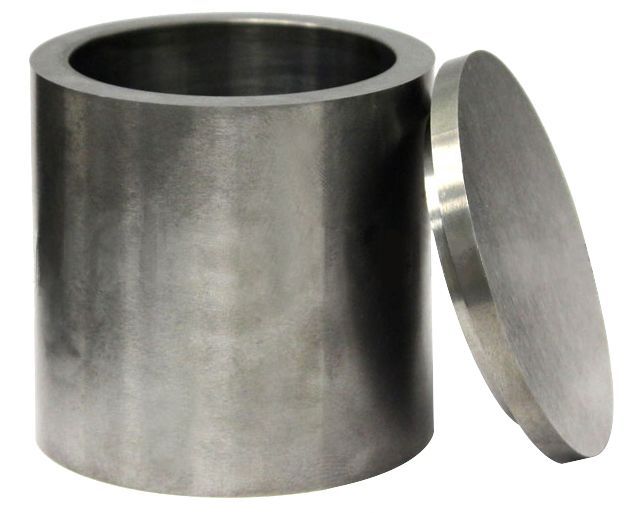

Highly polished tungsten carbide grinding jar set. Each jar set includes grinding jar, lid and rubber sealing gasket.
Specifications
Dimensions
| Jar size | 100 ml | 500 ml | 1 L |
| Outer diameter (OD) | 63 mm | 105 mm | 130 mm |
| Inner diameter (ID) | 50 mm | 90 mm | 115 mm |
| Total height | 63 mm | 106 mm | 135 mm |
| Depth | 50 mm | 89 mm | 115 mm |
| Weight (jar and lid) | 3.5 lbs. | 12.5 lbs | 20.5 lbs. |
Jar configurations
| Planetary Ball Mill | Capacity | Compatible Non-Vacuum Jars | Compatible Vacuum Jars | Quantity |
| PQ-N04 | 0.4L | 50ml – 100ml | 50ml | 4 |
| PQ-N2 | 2L | 250ml – 500ml | 100ml – 250ml | 4 |
| PQ-N4 | 4L | 500ml – 1000ml | 250ml – 500ml | 4 |
Specifications
| Grade | YG8 |
| WC (wt%) | 92% |
| CO (wt%) | 8% |
| Hardness | 88.5 HRA |
| Density | > 14.4 g/cm3 |
| Bending strength | 2400 TRS N/mm2 |
| Particle | 2 um |
Tolerance: +/- 2-3 mm
| Jar size | 100 ml | 500 ml | 1 L |
| Outer diameter (OD) | 63 mm | 105 mm | 130 mm |
| Inner diameter (ID) | 50 mm | 90 mm | 115 mm |
| Total height | 63 mm | 106 mm | 135 mm |
| Depth | 50 mm | 89 mm | 115 mm |
| Weight (jar and lid) | 3.5s. | 12.5s | 20.5s. |
