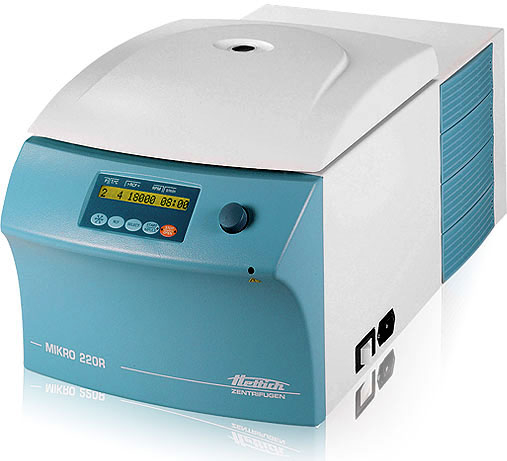

Hettich MIKRO 220R -20C to 40C 15000 RPM Refrigerated Centrifuge

$10,552.63

The Hettich MIKRO 220 R is a -20C to +40C refrigerated centrifuge features a high capacity 48-place angle rotor and 60-place drum rotor for maximum productivity. Higher RCF values reduce production time and offers cost saving capability. Additional rotors include a 24-place swing-out rotor for microliter tubes, 6-place PCR strip rotor and rotors for conical tubes, blood tubes, pediatric tubes, urine tubes and hematocrit capillaries. Features Compact refrigerated centrifuge for blood tubes.

Product total
Options total
Grand total
SKU: MIKRO-220R Category: Brand:

Description

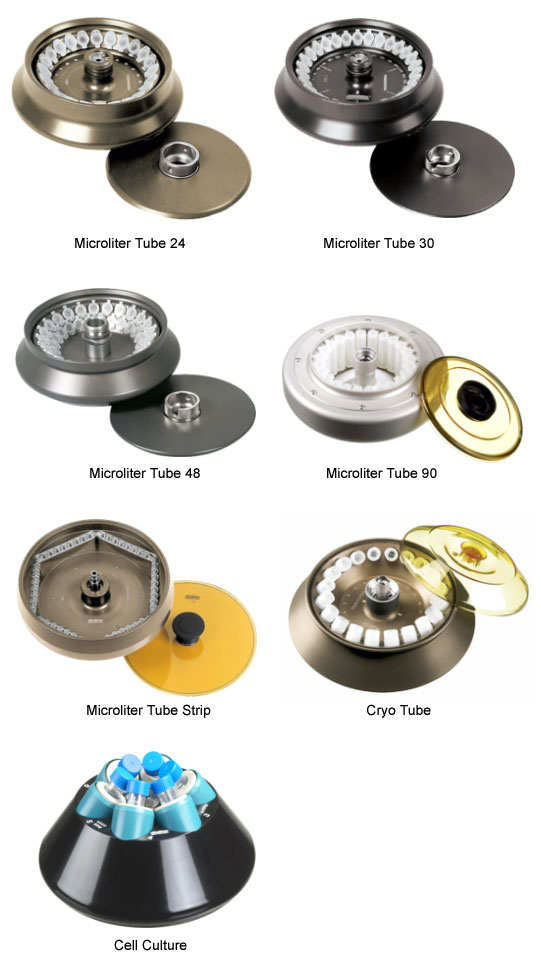

The Hettich MIKRO 220 R is a -20C to +40C refrigerated centrifuge features a high capacity 48-place angle rotor and 60-place drum rotor for maximum productivity. Higher RCF values reduce production time and offers cost saving capability. Additional rotors include a 24-place swing-out rotor for microliter tubes, 6-place PCR strip rotor and rotors for conical tubes, blood tubes, pediatric tubes, urine tubes and hematocrit capillaries.

Features

  • Compact refrigerated centrifuge for blood tubes. The MIKRO 220 R centrifuge provides compact refrigeration for spinning 12 blood tubes at 6,000 RPM.

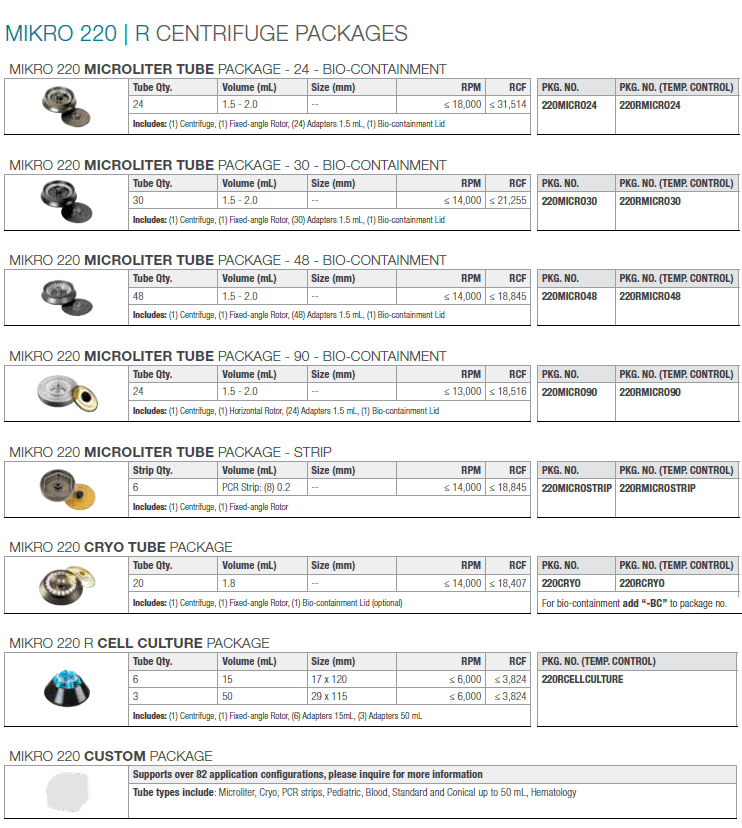

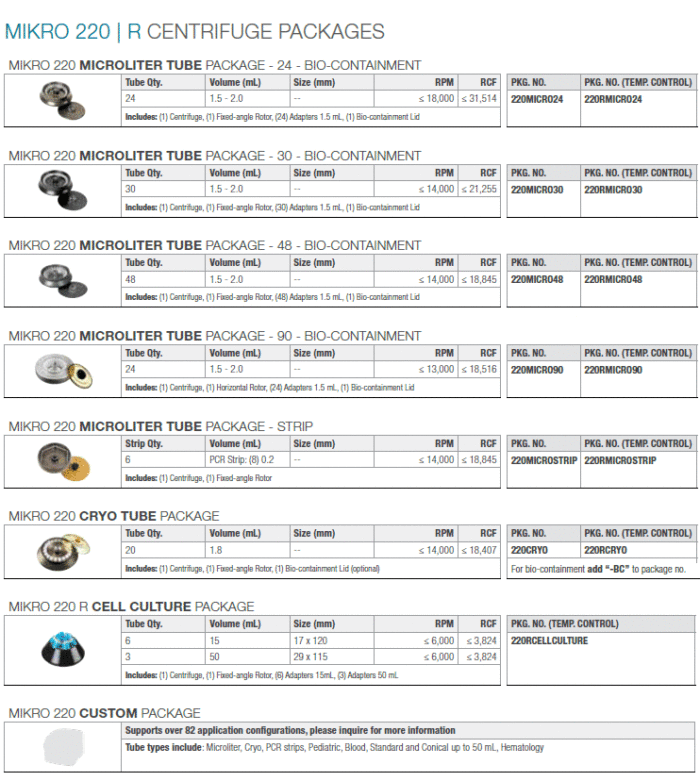

  • Micro Variety. The MIKRO 220 offers 4 different Microliter Tube Packages ranging from 24 to 48 tubes per run with optional bio-containment. The Microliter Tube Strip Package is also available, capable of spinning up to 6 PCR strips.
  • Save time and energy with robust and quick temp. control. Available with optional temperature control (-20 to +40 °C), the MIKRO 200 R cools down to +4°C in just 10 to 15 minutes using the Fast-Cool function. This feature saves on energy by reducing the amount of time necessary to pre-cool before centrifugation.
  • Process Lipemic samples and save thousands on equipment. Don’t struggle with the high-cost of processing lipemic samples. Process your samples quickly, in-house, and do away with send-outs with Hettich high-speed micro centrifuges.











Specifications

SPECIFICATIONS



 Model MIKRO 220 R
 Electrical requirements 120V 60Hz
 Temperature range -20°C to +40°C
 Max. capacity
 30 x 1.5/2.0 mL
 Max. blood tubes 12 (up to 10mL)
 Max. conical tubes 6/3 (15/50 mL)
 Max. RPM/RCF
 15,000/21,382
 Temperature control
 Ambient
 Rotor type Fixed-angle

 Dimensions

 11 x 22 x 10" (WxDxH)

 Weight

 62s

 Warranty

 5 years
