Edwards XDS35iCE 25cfm Chemical-Resistant Scroll Pump

Dry Scroll Pumps

Dry scroll vacuum pumps are positive displacement pumps that use two spiral-shaped scrolls, one fixed and one orbiting, to trap and compress gas molecules. They are oil-free, low maintenance pumps that are commonly used for clean vacuum applications. Since they do not rely on oil for sealing and lubrication, they eliminate the risk of oil contamination and leakage, making them an environmentally-friendly choice.

We in Edwards are driving scroll technologies to its best and we are committed to offer the most sustainable solution now and in the future.

XDSi Scroll Pumps

XDS dry scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes.

XDS35i

The XDS35i family of scroll pumps offers proven dry, clean vacuum solutions for a wide range of applications, with smart drive technology to look after the pump and provide worldwide performance.

Now, a combination of the double start scroll form technology and by-pass valves have enabled Edwards to offer the XDS35i Enhanced range of pumps to complement our original family.

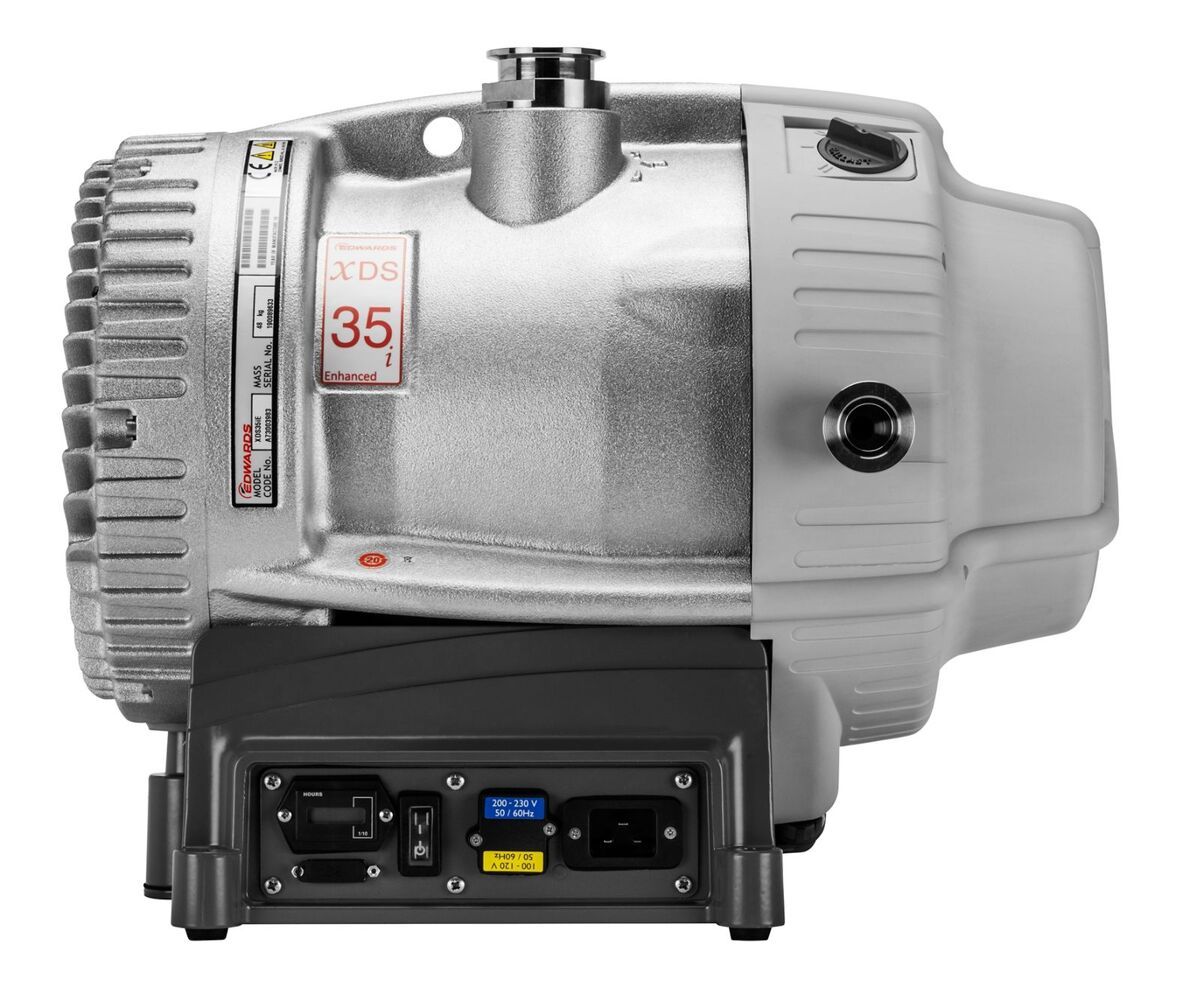

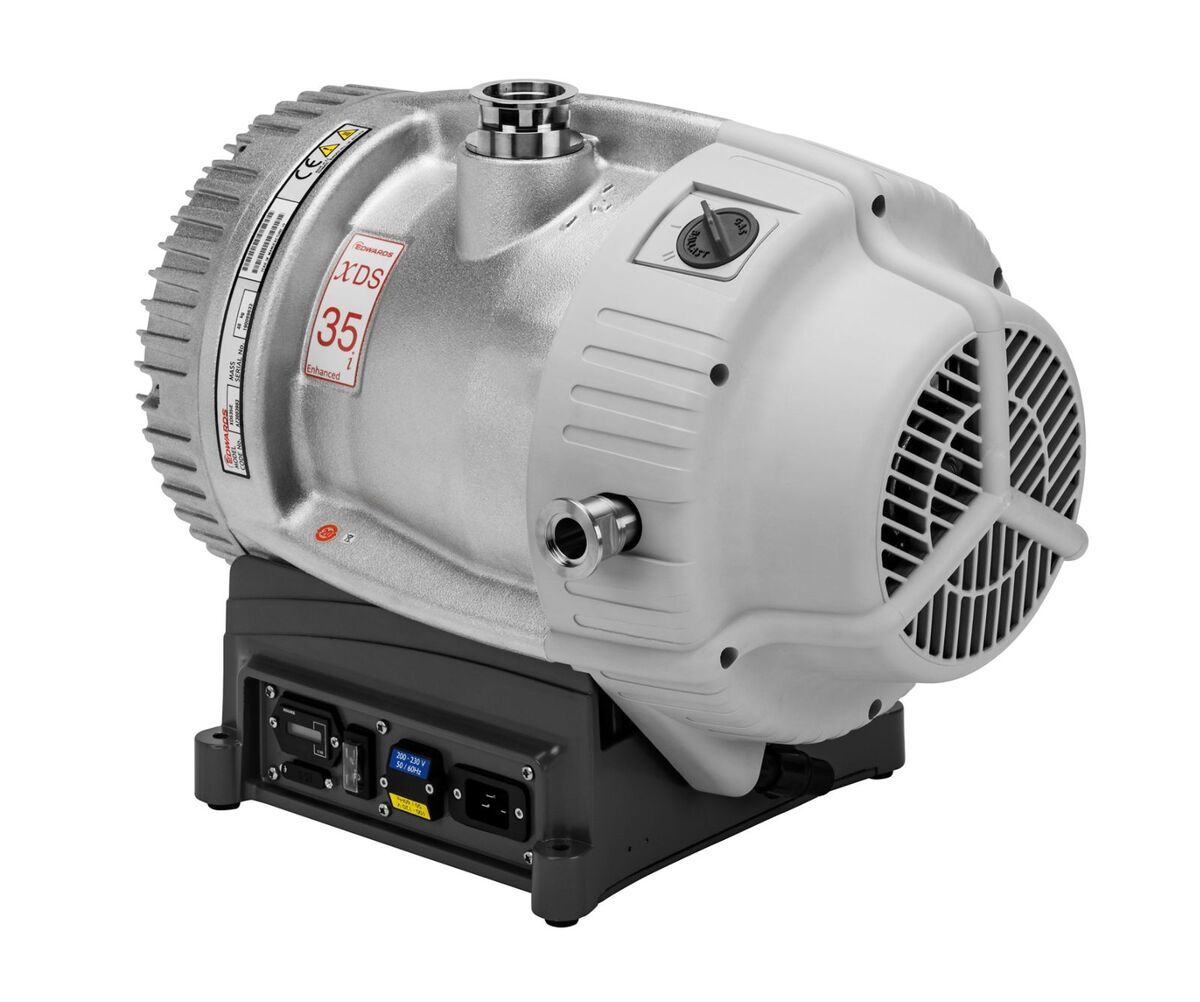

XDS35iCE – 100-120/200-230V 50/60Hz 1Ph Enhanced

The XDS35iCE version combines its enhanced performance with its is fitted Chemraz® internal valve pads and stainless-steel exhaust port. Chemraz® is a registered trademark of Greene Tweed.

Technology

Scroll pumps use intermeshing fixed and orbital scrolls to form non-contacting, crescent shaped gas pockets that are continuously compressed by the orbiting action. This means that, unlike oil-sealed rotary pumps, there is no sealant or lubricant required in the swept volume of the pump.

Applications

• Automotive; brake line and air conditioning evacuation
• Backing turbomolecular pumps
• Chemical applications including gel dryers and solvent recovery
• Coating systems
• High energy physics
• Mass spectrometry

Features and benefits

• Lubricant-free within the vacuum envelope and hermetically sealed means a totally clean and dry vacuum to prevent cross contamination.
• No atmosphere to vacuum shaft seals means bearings are completely isolated, this prevents process attack and enable the bearings to run cooler and last longer.
• No oil to change eliminating cost of contaminated oil disposal.

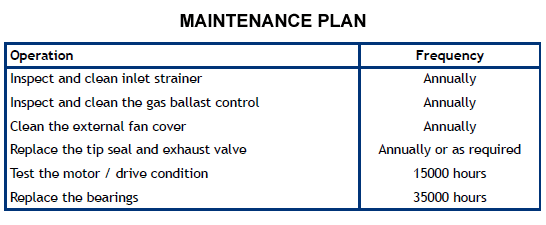

• Simple single sided scroll design allows maintenance to be done in minutes for low cost of ownership and maximum uptime.
• Inverter drive for consistent pumping speeds worldwide.
