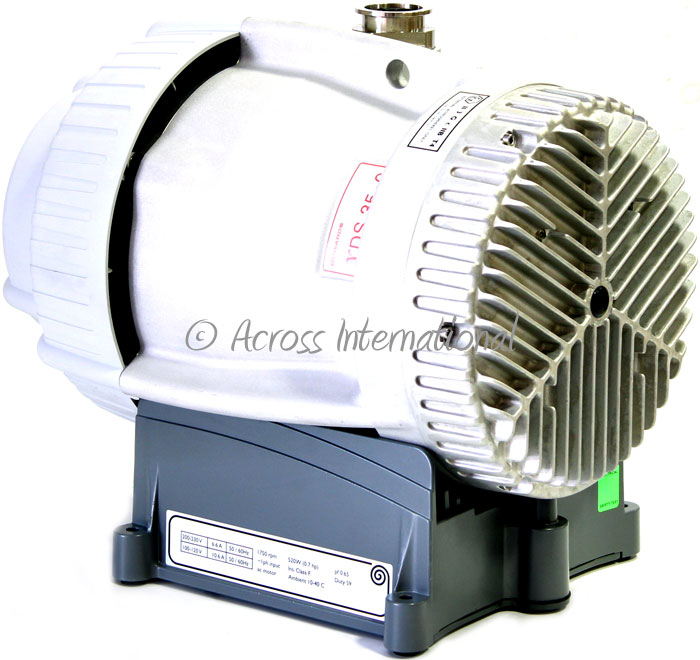

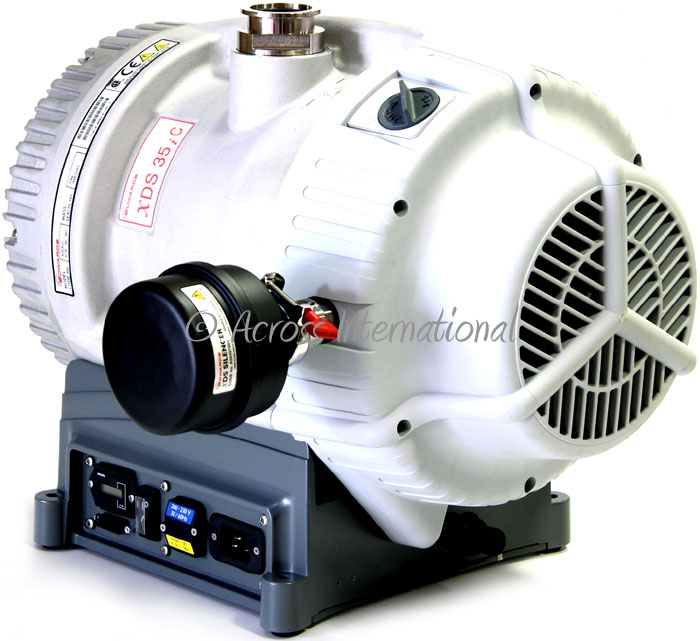

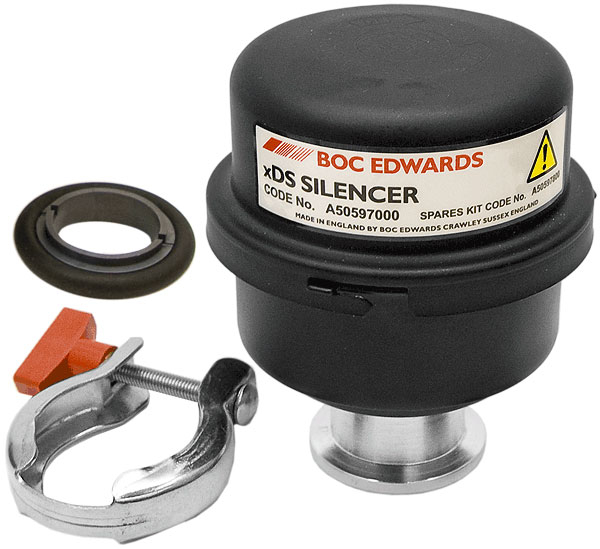

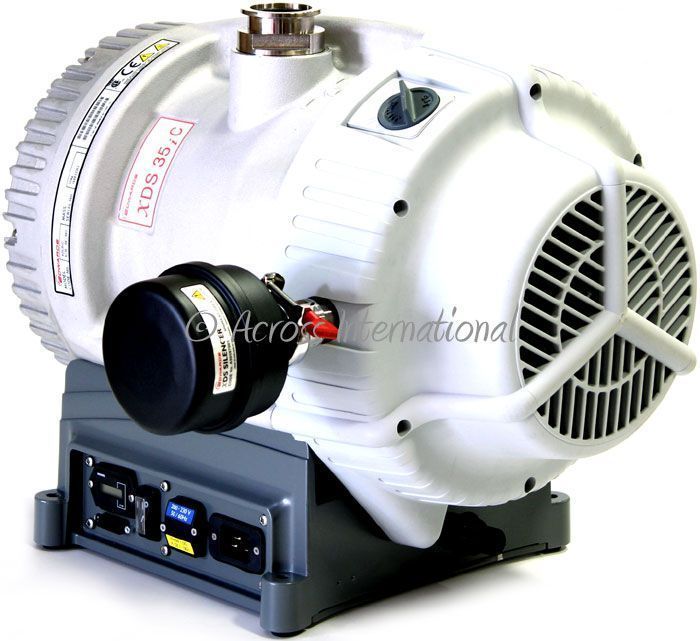

Edwards XDS35iC 25cfm Chemical-Resistant Scroll Pump w/ silencer
$24,307.72
Overview XDS scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes. The XDS35i pump has an innovative bearing shield that isolates the vacuum environment from all forms of lubricant, making it not only lubricant-free but hermetically sealed. XDS35iNGB variant has had the gas ballast feature removed for applications such as rare gas recirculation and gas recovery.
Description
Overview
XDS scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes.
The XDS35i pump has an innovative bearing shield that isolates the vacuum environment from all forms of lubricant, making it not only lubricant-free but hermetically sealed. XDS35iNGB variant has had the gas ballast feature removed for applications such as rare gas recirculation and gas recovery.
The XDS46i shares many of the same features of the XDS35i but with a peak speed of 40 m3h-1. The pump has been optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, making it ideally suited for LCMS and ICPMS applications requiring higher pumping speeds.
The C variant has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications using corrosive substances. The C version is fitted with Chemraz internal valve pads and stainless steel exhaust port.
Technology
Scroll pumps use intermeshing fixed and orbital scrolls to form non-contacting, crescent shaped gas pockets that are continuously compressed by the orbiting action. This means that, unlike oil-sealed rotary pumps, there is no sealant or lubricant required in the swept volume of the pump.
Applications
- Automotive; brake line and air conditioning evacuation
- Backing turbomolecular pumps
- Chemical applications including gel dryers and solvent recovery
- Coating systems
- High energy physics
- Mass spectrometry
Features and benefits
- Lubricant-free within the vacuum envelope and hermetically sealed means a totally clean and dry vacuum to prevent cross contamination.
- No atmosphere to vacuum shaft seals means bearings are completely isolated, this prevents process attack and enable the bearings to run cooler and last longer.
- No oil to change eliminating cost of contaminated oil disposal.

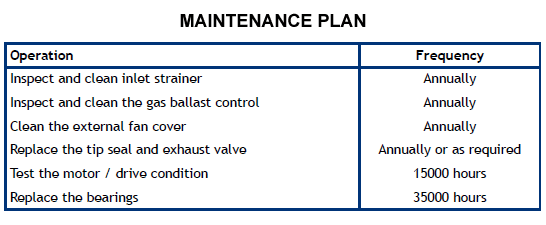

- Simple single sided scroll design allows maintenance to be done in minutes for low cost of ownership and maximum uptime.
- Inverter drive for consistent pumping speeds worldwide.
Specifications
| Power | 100-120V or 200-230V switchable |

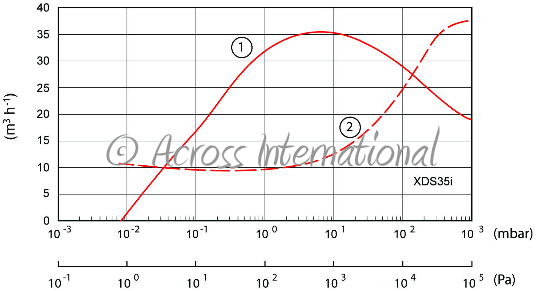

| Displacement / peak pumping speed (50/60Hz) | 43 m3h-1 / 25 ft3min-1 35 m3h-1 / 21 ft3min-1 |
| Ultimate vacuum (Total pressure) Max continuous inlet pressure | 1 x 10-2 mbar / 8 x 10-3Torr 35 mbar / 23 Torr |
| Max water vapour pumping rate - GB I / GBII | 70 gh-1 / 240 gh-1 |
| Max continuous outlet pressure | 0.2 bar gauge / 2.9 psig |
| Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig |
| Motor power / speed | 0.52kW / 1750 rpm |
| Power connector | IEC EN60320 C19 |
| Weight | 48 kg / 105 lb |

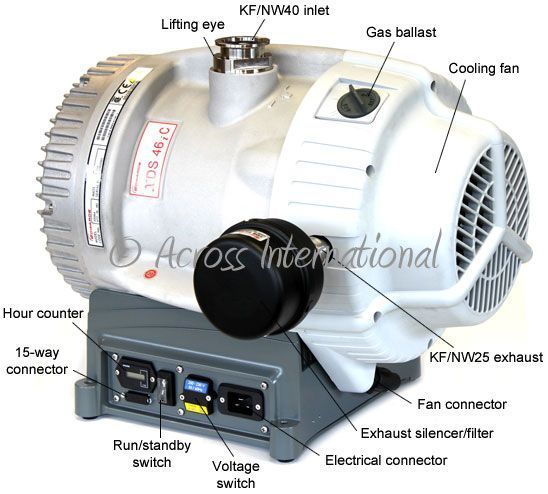

| Inlet flange / Exhaust flange | NW40 / NW25 |
| Noise and vibration | 57 dB (A), <4.5mms -1 (rms) |
| Leak tightness (static) | <1 x 10-6 mbar ls-1 |
| Operating temperature range | 10 to 40 °C / 50 to 104 °F |
| Compliance | CE, UL, CSA, ATEX |
Standard Package
|
Related products
-
Filter Element for New SMF-010 Vacuum Pump Exhaust Mist Filters
$54.28 Add to cart -
EasyVac 7 CFM and 9 CFM Vacuum Pump Service Kit
$125.26 Select options -

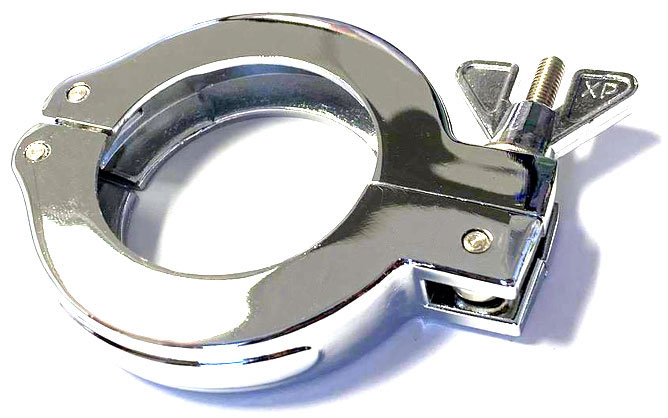

KF/NW40 Aluminum Wing Nut Flange Quick Clamp
