Edwards nXDS15iC 8.89 cfm Chemical-Resistant Dry Scroll Pump
$17,240.30
Dry Scroll Pumps Dry scroll vacuum pumps are positive displacement pumps that use two spiral-shaped scrolls, one fixed and one orbiting, to trap and compress gas molecules. They are oil-free, low maintenance pumps that are commonly used for clean vacuum applications. Since they do not rely on oil for sealing and lubrication, they eliminate the risk of oil contamination and leakage, making them an environmentally-friendly choice.
Description
Dry Scroll Pumps
Dry scroll vacuum pumps are positive displacement pumps that use two spiral-shaped scrolls, one fixed and one orbiting, to trap and compress gas molecules. They are oil-free, low maintenance pumps that are commonly used for clean vacuum applications. Since they do not rely on oil for sealing and lubrication, they eliminate the risk of oil contamination and leakage, making them an environmentally-friendly choice.
We in Edwards are driving scroll technologies to its best and we are committed to offer the most sustainable solution now and in the future.
nXDSi Scroll Pumps
Edwards nXDS is the great new shape of dry vacuum pumping.
The nXDS has taken scroll vacuum technology to the next level. Improved performance, exceptional pumping capability, quiet operation and extended service intervals make nXDS the ultimate dry choice. The range covers pumping speeds from 6 to 20 m3/h.
nXDS15i
The nXDS15i same as the nXDS10i are our key products offering a small dry pump solution for most Scientific Applications. Standard variant suitable for a large variety of applications; R-variant with blanked gas ballast and C-variant being corrosion resistant.

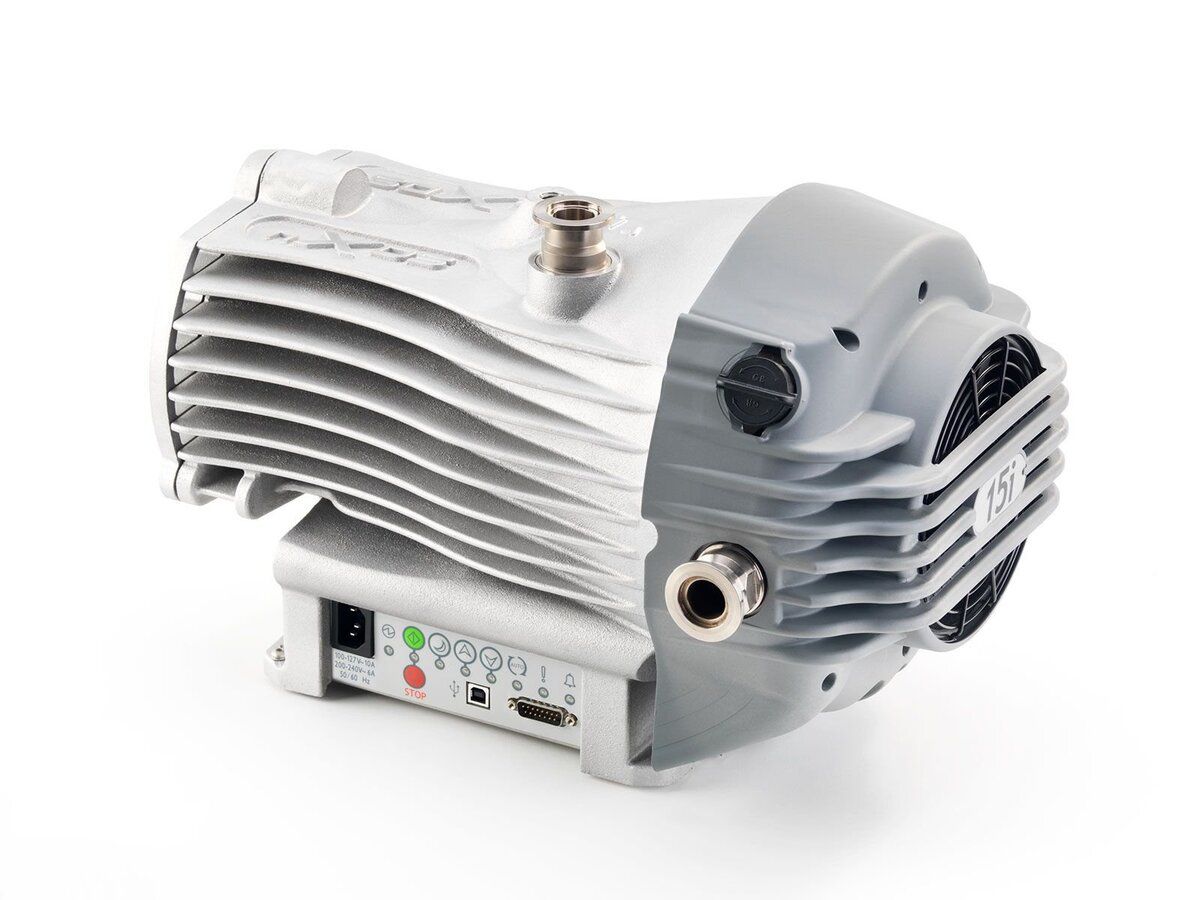

nXDS15iC – 100-127/200-240V 1Ph 50/60Hz
The nXDS15iC has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications involving corrosive substances. This chemically resistant version is fitted with Chemraz® internal valve pads and stainless steel fittings.

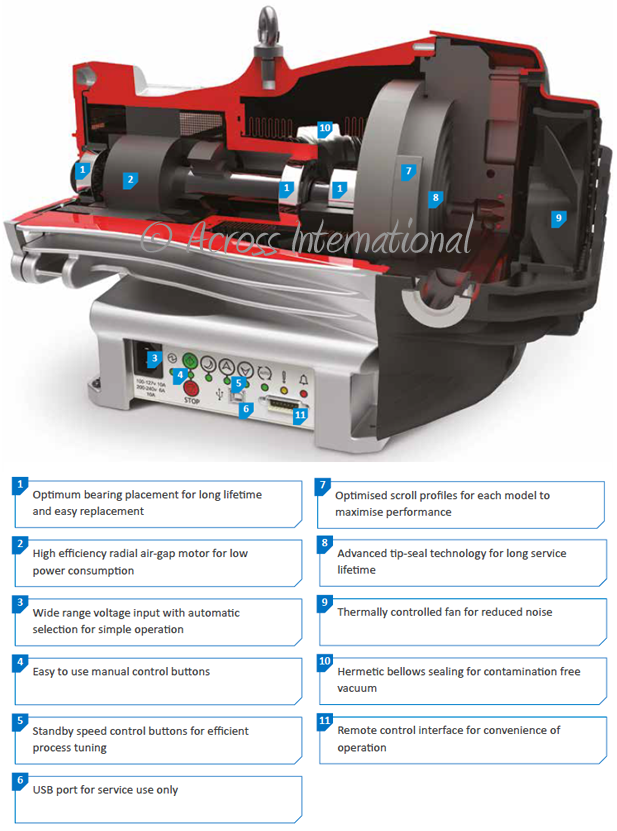

Features and Benefits
- Quiet operation – Better working environment
- Hermetically sealed for a lubricant-free vacuum environment – Contamination free process and no oil to dispose of
- Low power consumption – Low cost of ownership
- Intelligent and easy to use controls – Flexibility of operation
- Superior vapour handling – Wider range of applications

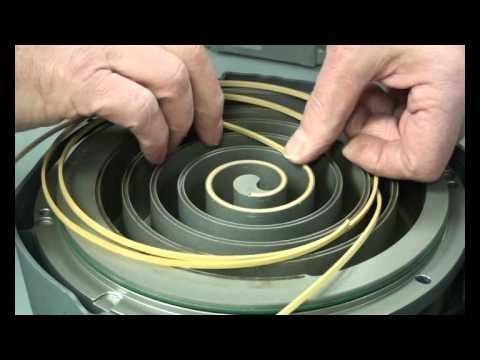

- Long service intervals – Maximised up-time
Applications
- General clean pumping applications
- Scanning Electron Microscopes – SEM
- Beam lines and high energy physics
- Backing turbo pumps
- Centrifuges, ultra-high speed
- Coating
- Cryogenics
- Degassing/curing – oil, epoxy resin
- Distillation/extraction/filtration
- Freeze drying
- Furnaces
- Gel drying
- Laboratory bench top vacuum
- Lasers, gas recovery and recirculation
- Leak detectors, Helium
- Load locks and transfer chambers
- Rare gas recirculation
- Rare gas recovery
- Refrigeration manufacture
- Research and development
- Rotary, centrifugal evaporators
- SEM/FIB (ion beam repair)
- Solvent recovery
- Surface science instruments
Technical Data
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
