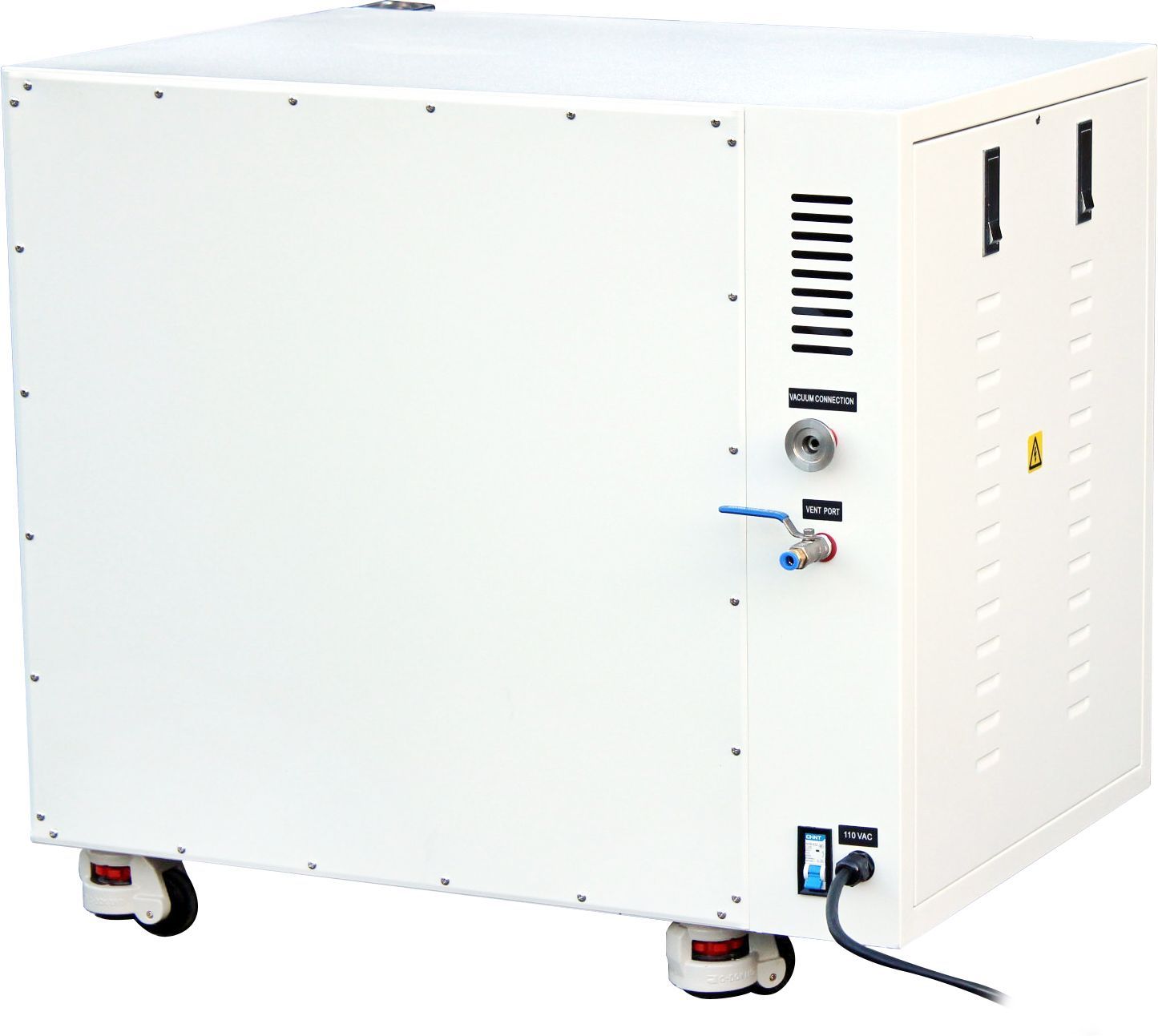

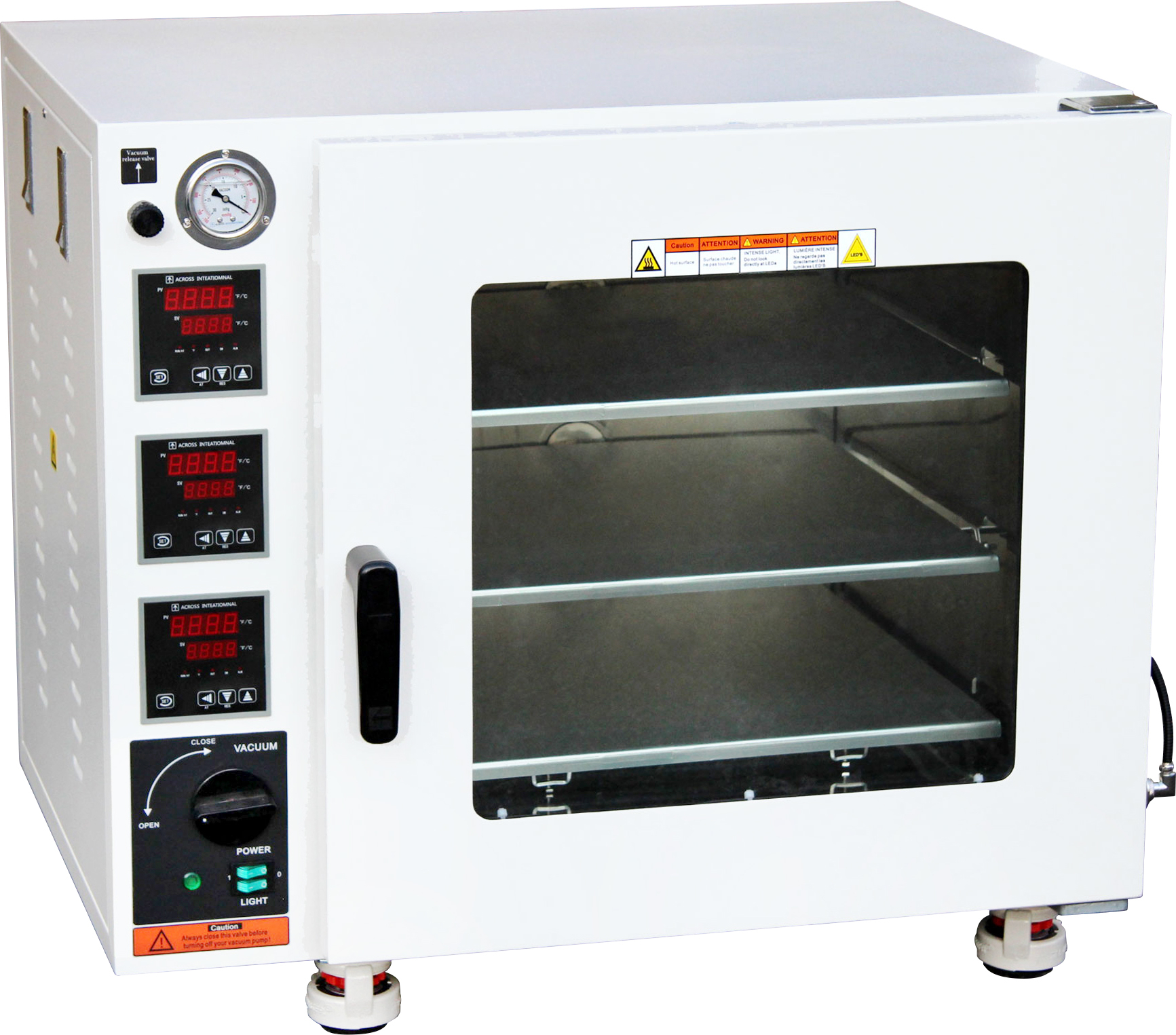

ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights
$5,553.28
With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Description
With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
- Dual layer observation window with 5/8″ tempered safety glass.
- 3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in swivel casters with leveling feet.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

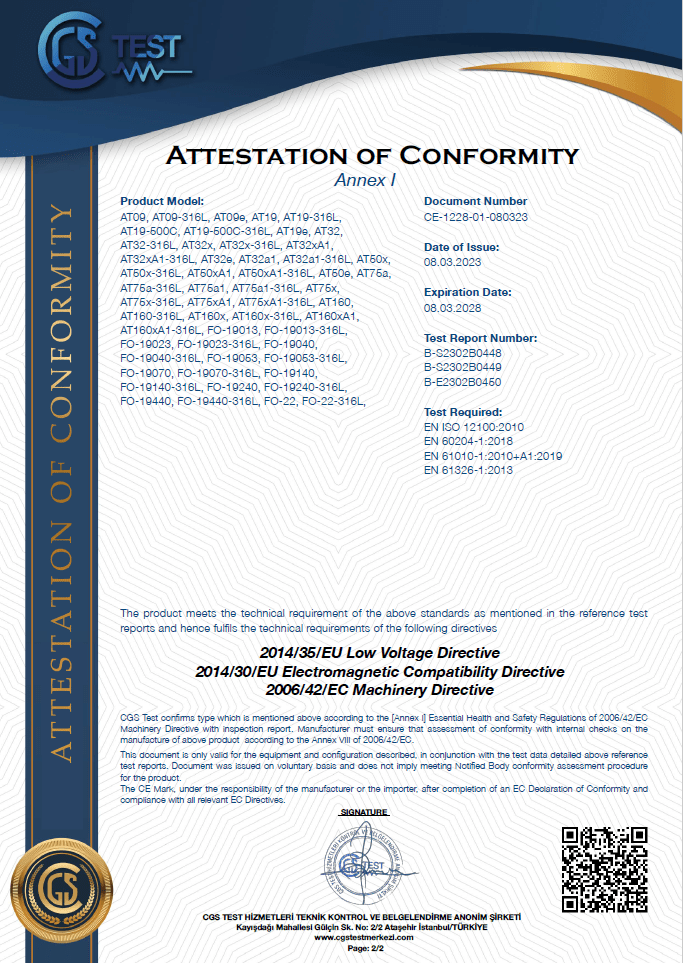

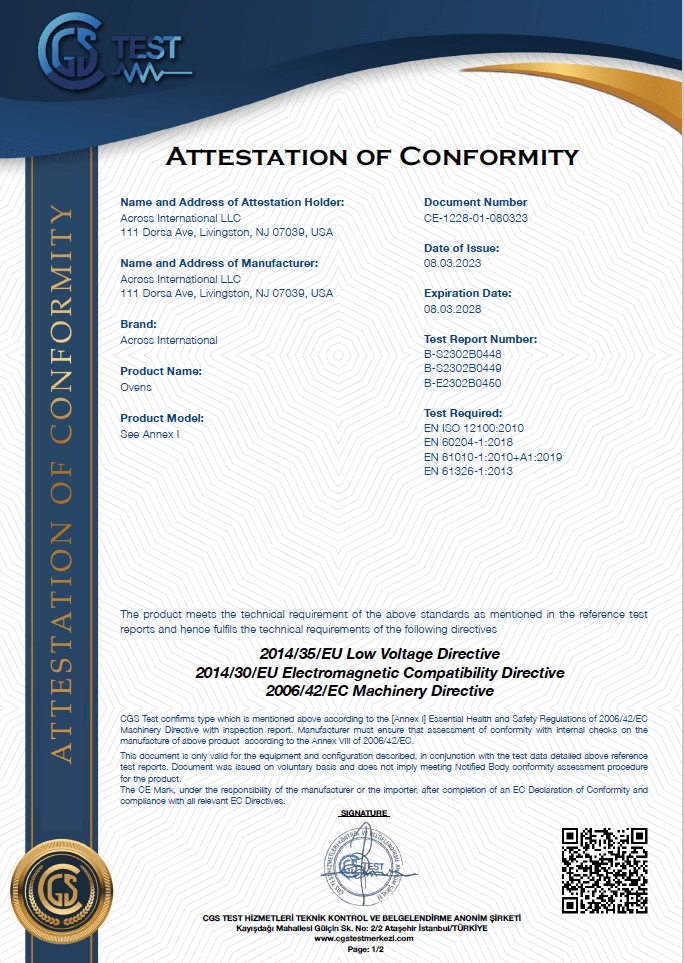

Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Vacuum oven specifications
| Electric | 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
| Heater | 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating. |
| Chamber | Size: 18 x 18 x 18" Material: Stainless steel Capacity: 3.2 cubic feet |
| Temperature control | Controller: 3rd gen low proportional gain, microcomputer PID controlled Range: ambient to 150°C (302°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes |
| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 1/4" ball valve Vacuum pump: Sold separately |
| Weight | Unit: 240 Lbs, shipping: 380 Lbs |
| Dimensions (WxDxH) | Unit: 30.5 x 24 x 29" Shipping: 36 x 33 x 35" |
| Shelves | Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH) Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2 Distance between shelves (without stackable shelves): 4.75 inches Distance between shelves (with 3 stackable shelves): 2.25 inches Max. load capacity per shelf: 20 Lbs |
| Door gasket material | Silicone (standard), Viton (optional) |
| Observation window | 1/2" tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection |
| In-door lights | White LED |
| Warranty | 1 year |
| Compliance | CE |
Standard package
|
