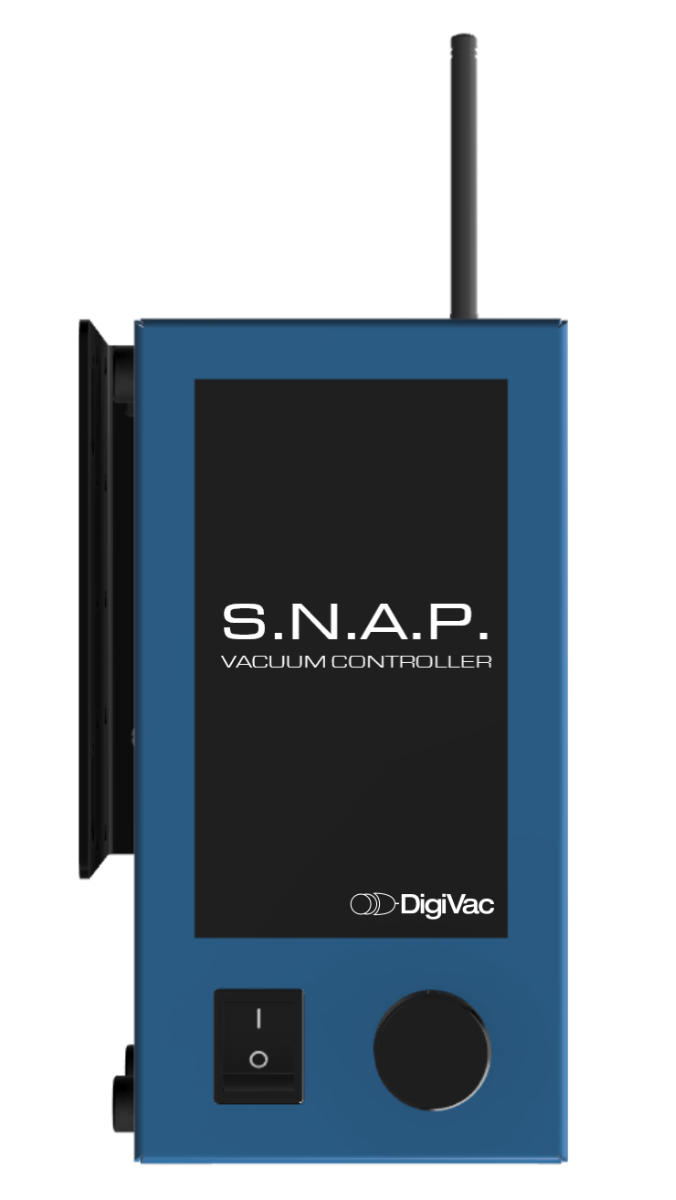

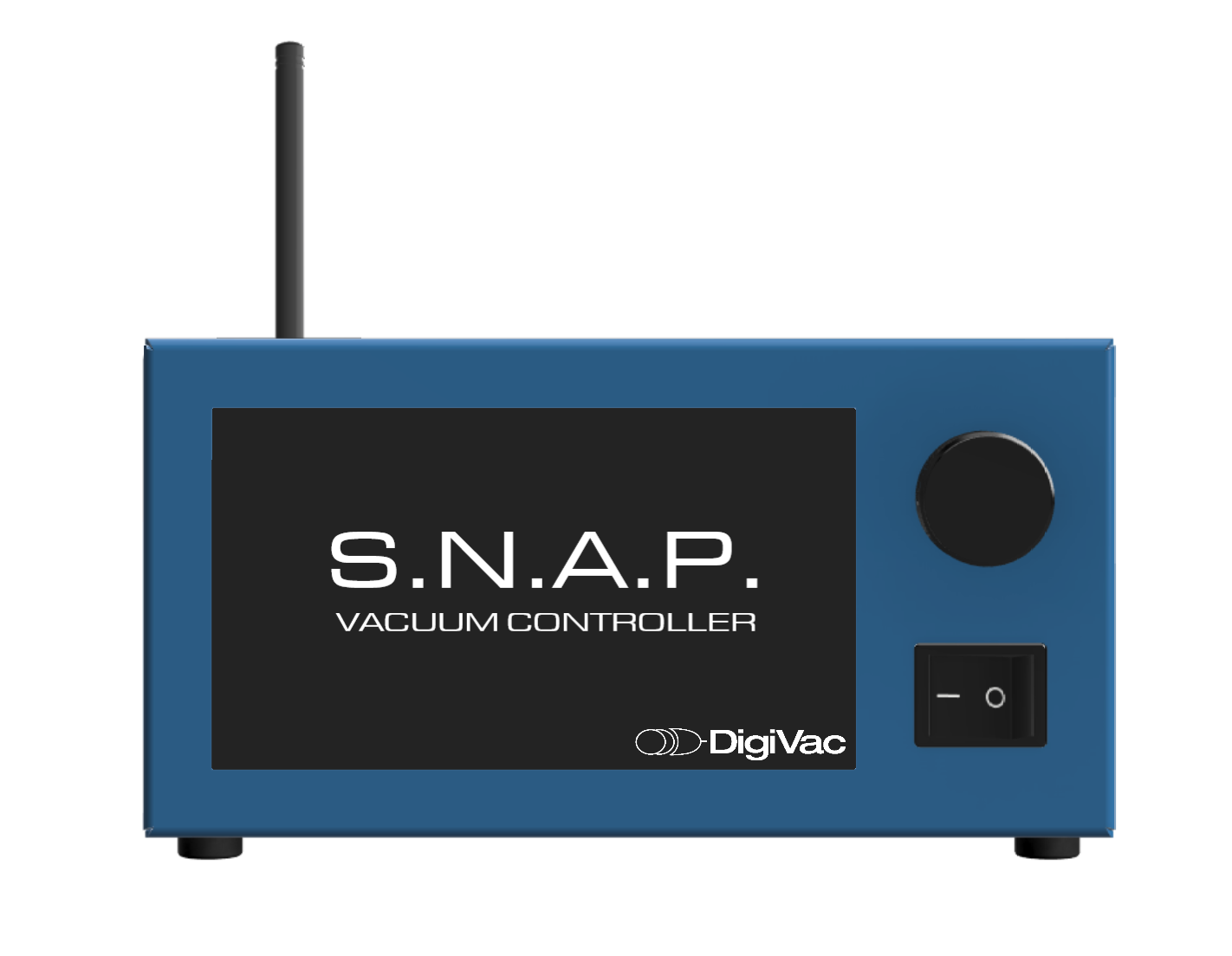

DigiVac SNAP, Simple, Nimble, Automatic Vacuum Controller – Stainless Steel

SNAP Millitorr Automated Vacuum Controller | Up to 10 Programmable Recipes | 50 millitorr to 750 Torr Control

The SNAP millitorr automated vacuum controller provides precise vacuum control and venting in one device from 750 Torr down to 50 millitorr. Easily control your vacuum process and venting with the touch of a button or the twist of a knob with the SNAP (Simple, Nimble, Automatic Process Controller).

SNAP Millitorr Automated Vacuum Controller | Up to 10 Programmable Recipes | 50 millitorr to 750 Torr Control Range

SNAP Vacuum Controller | Simple, Nimble, Automatic Process Controller with up to 8 Recipes

DigiVac SNAP: Automatic Vacuum Process Controller | Vacuum control and venting with the touch of a button or twist of a dial

• The Wide-range automatic vacuum controller with programmable recipes
• Vent your vacuum chamber or equalize your system with the touch of a button instead of pulling hoses or turning valves
• Treat material in chamber more gently by implementing kinder ramp rate controls which is ideal for freeze drying, vacuum drying or lyophilization applications
• Vacuum Controller with onboard ramp rate recipe control. Allows you to program up to 10 recipes with up to 24 steps in each recipe based on time and pressure setpoints.
• Dashboard pushbutton control for START, STOP functionality for each channel allows you to automatically vent or isolate your system with a push of a button
• Helps you control large volume chambers or small volume vacuum chambers

SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS

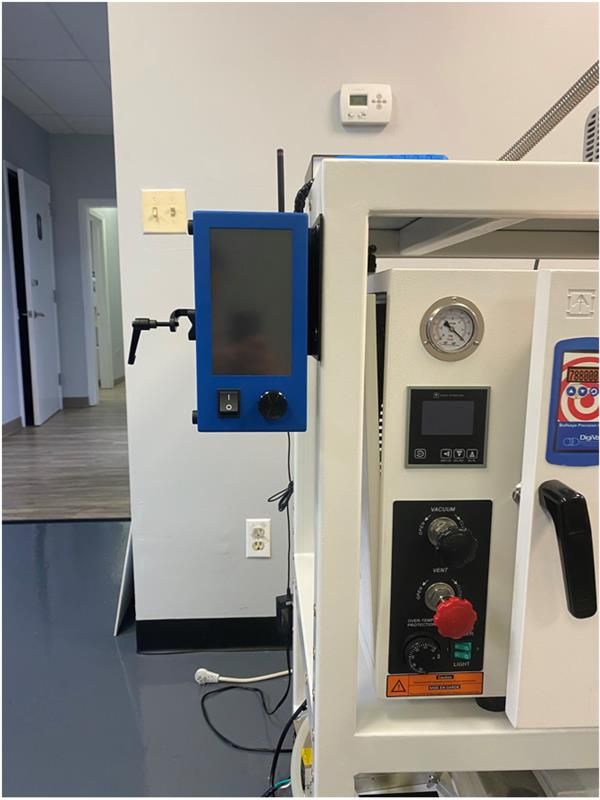

• Applications: vacuum chamber (from 1 liter to 1000 liters) research, vacuum ovens/vacuum drying, vacuum furnaces, large scale food processing, microwave drying, composites, rotary evaporators, falling film systems
• Fine control of target vacuum pressure for more precise processing and research
• Enables using reliable and long lasting rotary vane pumps & dry scroll pumps in applications where diaphragm pumps were previously required
• Keeps vacuum pumps near their base pressure resulting in greater longevity

NIMBLE MAXIMIZES THROUGHPUT & PUMPDOWN SPEED

• Largest flow paths available to insure maximum flow for faster evaporation

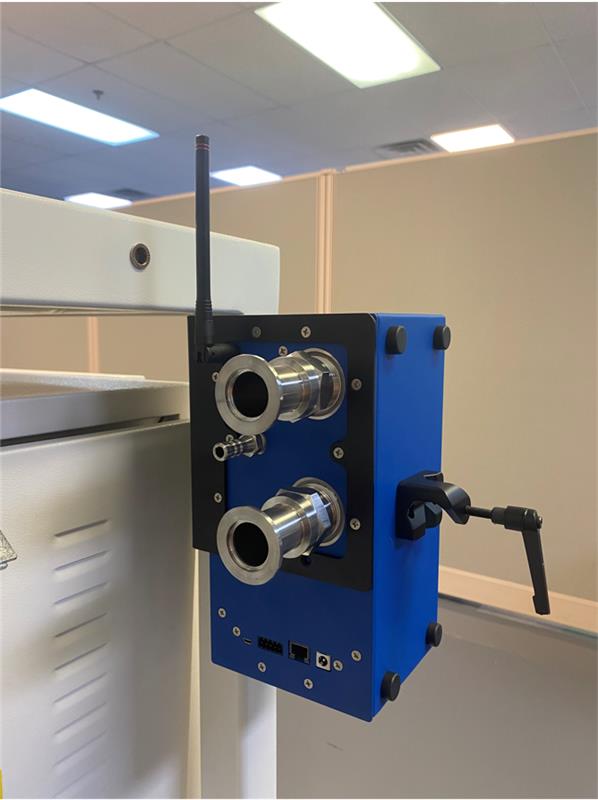

• Maximize throughput and pump down speed with a 17 mm vacuum path (almost full KF25 orifice)


AUTOMATIC PROCESS PRECISION CONTROL & INTUITIVE DESIGN

• Automatic Vacuum Process Controller | precise automated control with programmable recipes and graphing of vacuum levels

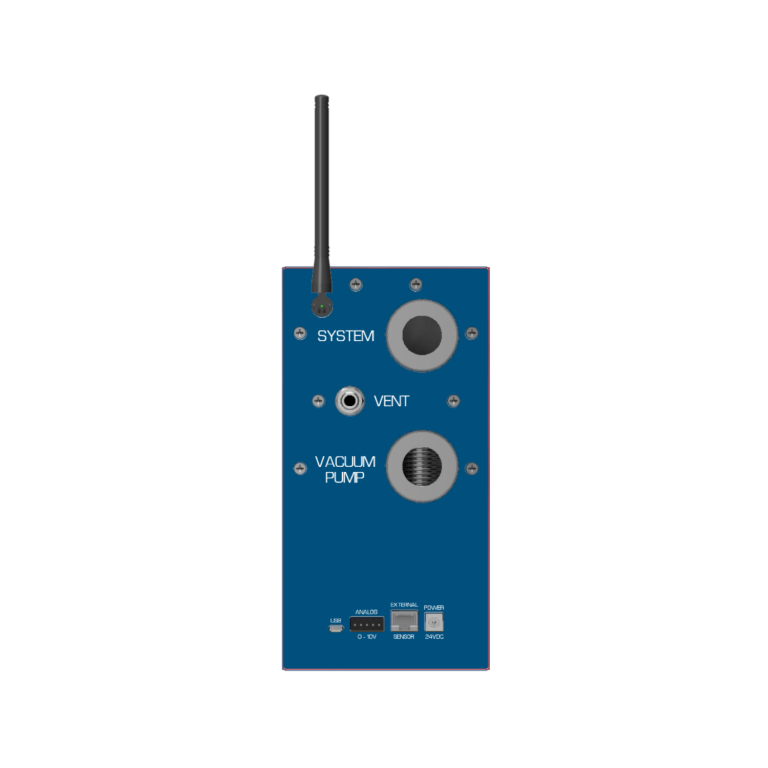

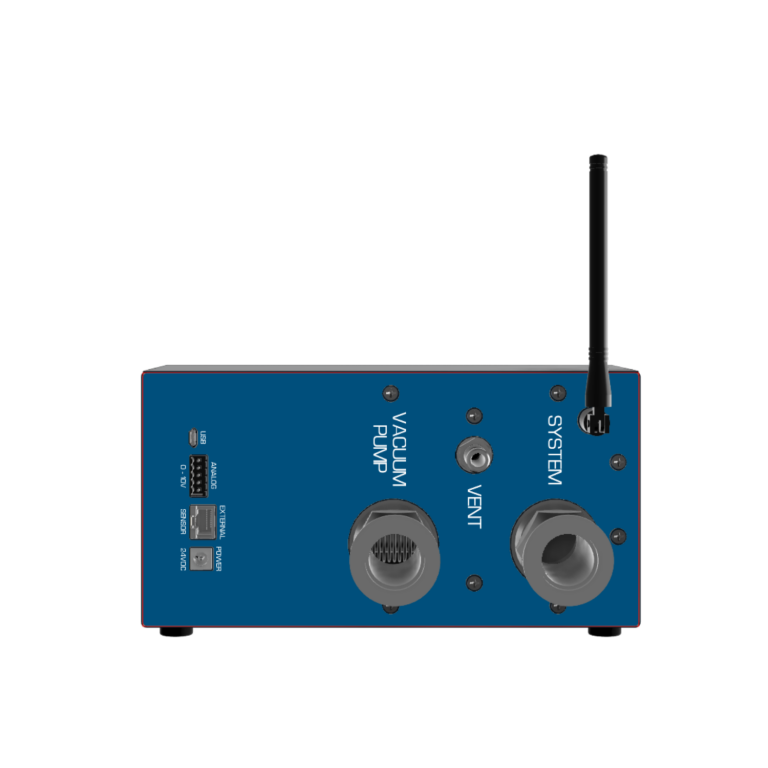

• Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
• The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing

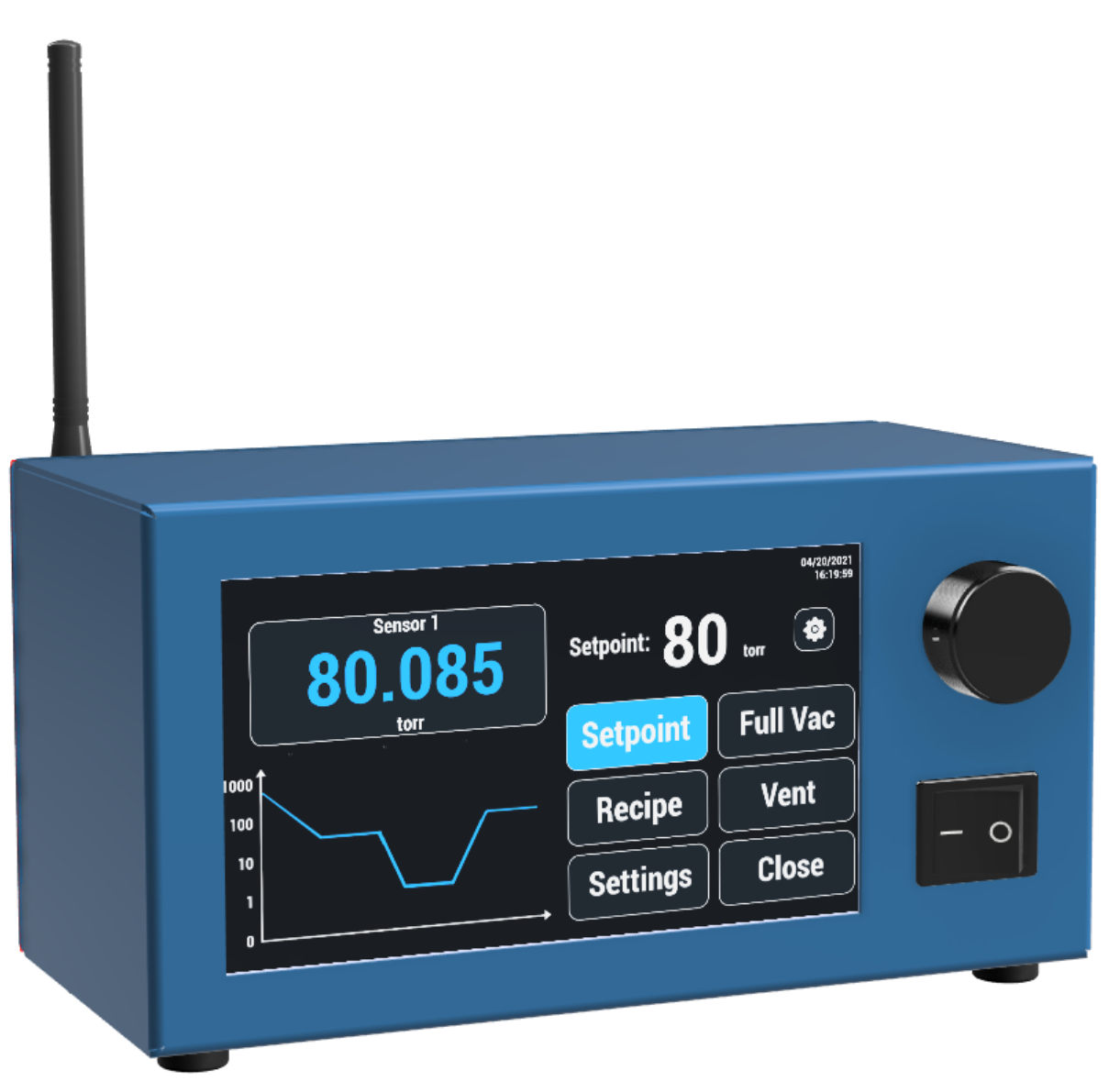

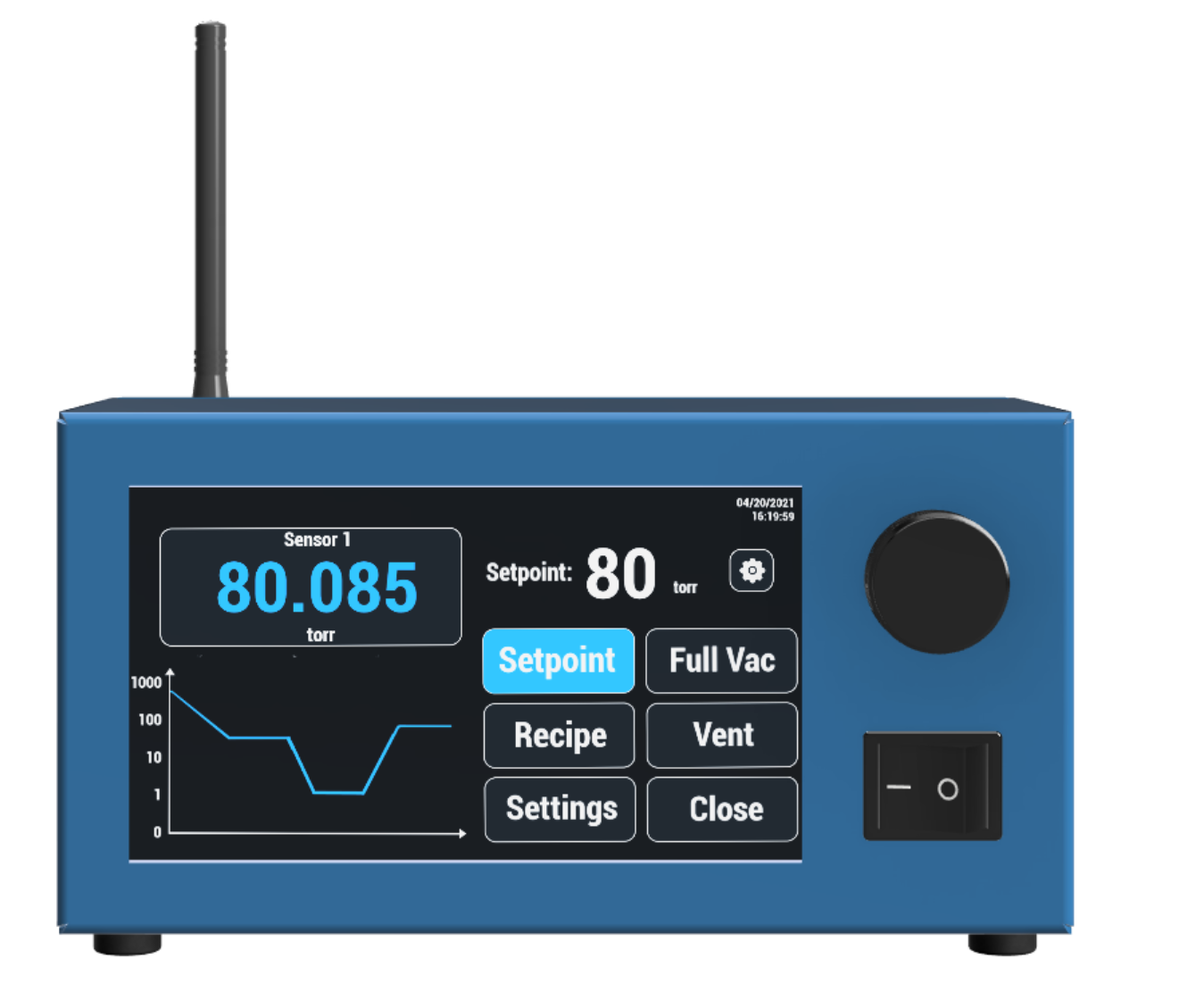

• Numerical readings right on the LCD screen and one touch buttons: VENT, CLOSE (isolate, close all valves) and FULL VAC (fully opens the valve for vacuum pump and closes the vent valve)
• Onboard Recipe Control: The SNAP can have up to 24 individual steps in the recipe screen, time in any step can be up to 999 minutes in duration. We can ramp or hold….Ramp is work our way up to the setpoint gradually, hold is just “get there” and stay。
