DigiVac Bullseye Piezo Rough Vacuum Gauge Isolated 775i Sensor

Click here to download product brochure

Click here to download user’s manual

Product Description

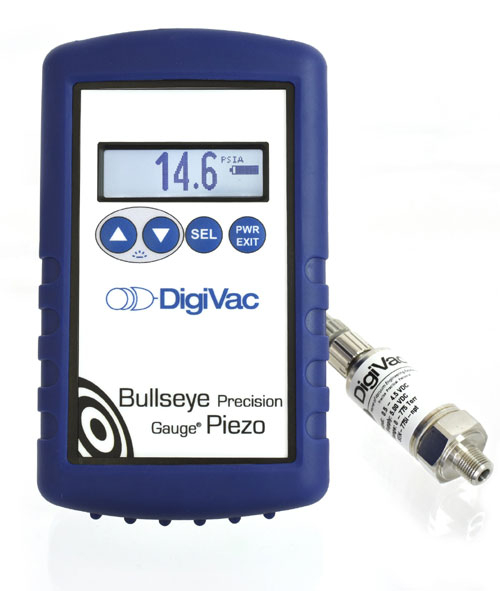

• Bullseye Precision Gauge Piezo Rough Vacuum Gauge with Isolated 775i sensor
• Accurate and reliable

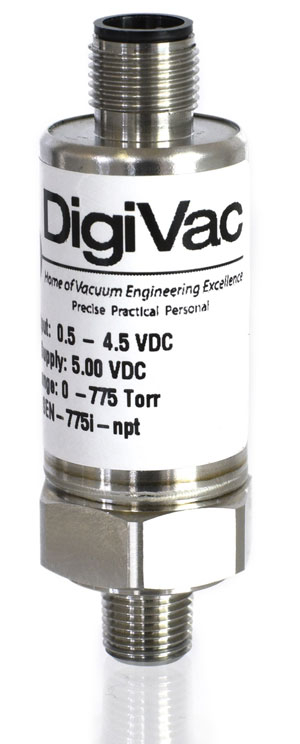

• Isolated piezo sensor with only 316 SS for wetted material for use in dirty environments or where corrosive gases are in use
• Rugged stainless steel sensor that is hermetically sealed to insure zero leakage
• 1/8 male NPT vacuum fitting, easily adaptable to KF
• Sensor type: Piezoresistive

• Measure 1 to 775 Torr without a capacitance manometer
• Industry standard 5 volt sensor and rugged M12 connector

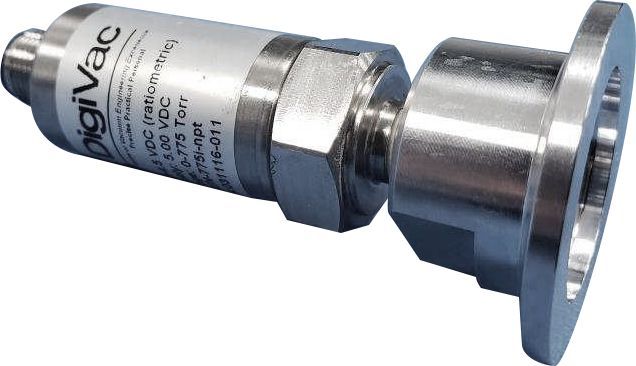

• Comes with KF25 flange adapter

• CE, UL, and RoHS

Portable and Precise

• Bullseye Piezo Rough vacuum gauge with hermetically sealed isolated stainless steel sensor that is ideal for applications where more precise measurement of rough vacuum is necessary

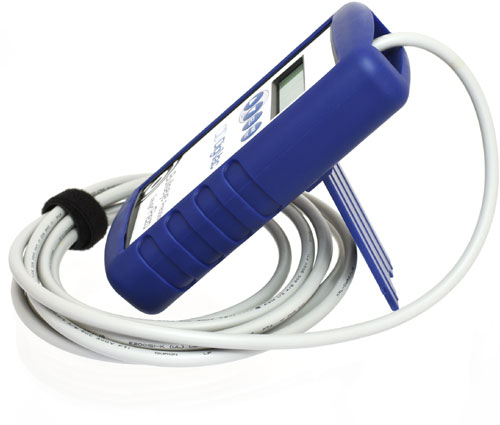

• Includes a powerful magnet and kickstand to enable hands-free operation
• Long battery life and versatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)
• Calibrated under actual vacuum against a NIST standard (NIST certification with documentation is an available option)
• Shipping weight: 5s, shipping dimensions: 10 x 6 x 6″


Graphing and Analysis

• Patented vacuum graphing displays vacuum and time data
• Visual graphing right on the display that identifies current system status
• Vacuum Analytics to quickly identify vacuum pressure trends (Pump-down graph, auto-scaling line graph, and bar graph)
• Digital display for quick determination of vacuum level

Applications

• Rotary Evaporation
• Schlenk line monitoring
• Botanical oil processing
• Falling Film
• Altitude Simulation
• Vacuum Process Monitoring
