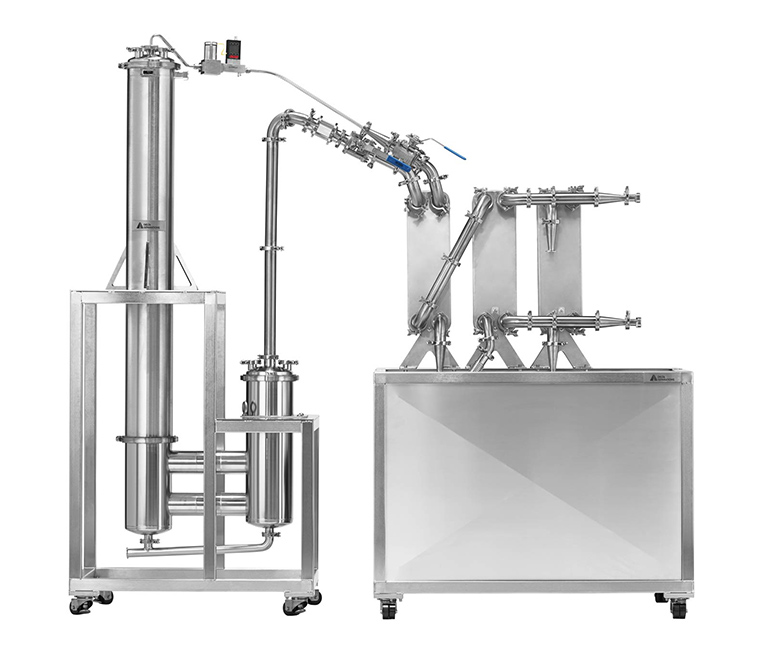

Delta Falling Film Evaporator – 60 gal./hr. / 208V
Designed to go hand-in-hand with CUP Extraction Systems, this Falling Film Evaporator from Delta Separations is an alcohol evaporation/recovery system. The systems are used for large-scale evaporation and recovering high volumes of alcohol from extract solutions.
The system maintains a high evaporation rate, which significantly increases the throughput of the extract being processed. This eliminates the need for multiple large rotary evaporator systems.
Description
- Footprint of pump cart & evaporator
- 15′ L x 7′ D x 9′ H
- Evaporator dimensions
- 41”L x 32”W x 99”H
- Pump cart dimensions
- 52”L x 32”W x 74”H
- Evaporator weight
- 400 lbs
- Pump car weight
- 600 lbs
- Single Operator
- Equivalent to 10x (50L rotary evaporators)
- 60 Gallons per hThe of separated material
- 85-95% Separation Efficiency
- 316L Sanitary Stainless Steel Construction
- 212 maximum amp requirement
- Short Residence Time
- Continuous operation
- System can be modified for specific applications or higher throughputs
- 12 month warranty – parts/labor
- Made in the USA
