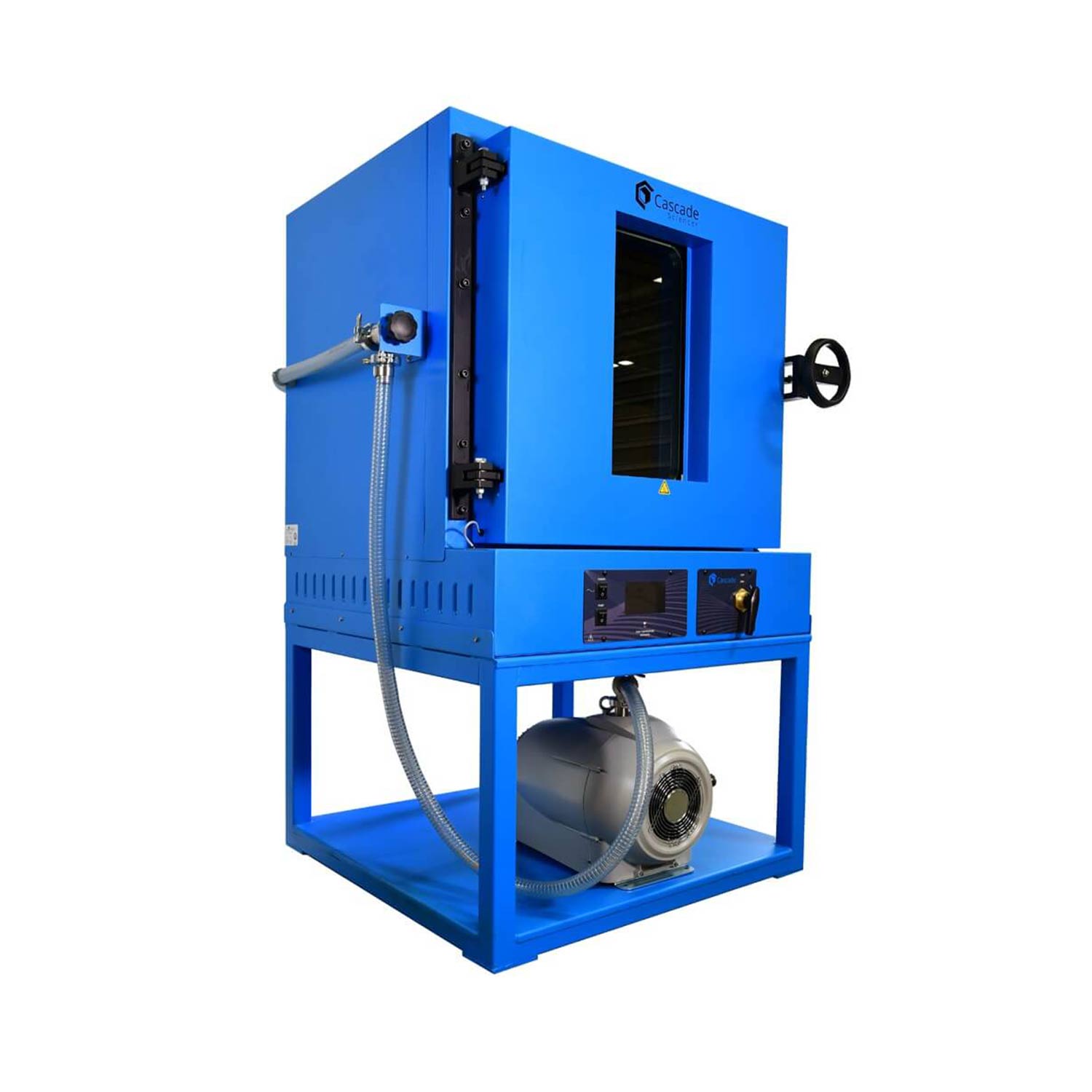

CVO-10 Pro Vacuum Oven Package

CVO-10 Pro Vacuum Oven Package

$45,690.34

Cascade Vacuum Purge Ovens are a high quality, scalable laboratory oven solution.
Vac purge ovens are excellent for outgassing, removing water or other residual solvents, drying products, baking out, and a host of other applications.

Category: Tag:

Description

  • Power
  • 240, 1ph, 10 FLA, NEMA 6-15R 230V Outlet
  • Chamber size
  • 9.3 Cubic Ft
  • Chamber material
  • Stainless Steel
  • Chamber dimensions
  • 28”W x 24”H x 24”D
  • Port
  • Rear KF-25 port 1″ diameter
  • Vacuum
  • KF-25, 1″ lines, 1″ Valve
  • Vent
  • 1/2″ barb
  • Certified
  • NRTL
  • Controller
  • PID controller /Analog knobs
  • Display
  • F°
  • Stability
  • /-0.4 °F at 105 °F
  • Max temperature
  • 25 °F above ambient temperature to 160 °F
  • Temperature Uniformity
  • /-1.5 °F at 105 °F
  • Agilent IDP15 9 CFM Scroll Pump
  • Included
  • MAX EVAP vacuum oven to pump connection kit
  • Included
  • KF-25 Hardware
  • Included
  • Filter Required
  • No
  • Ultimate Vacuum
  • 1 x 10^-2 Torr
  • Unit weight
  • 663 lbs
  • Shipping weight
  • 775 lbs
  • Unit dimension
  • 42.3”W x 43”D x 42.3”H 67.6”H with stand
  • Shipping dimensions
  • 50 x 50 x 50″
  • NOTE
  • Will Not Fit Through Standard 36″W Doorway
  • Made in the USA
  • Perfect for removing water or residual solvents
  • PID controller included
  • Multiple sizes and types available
