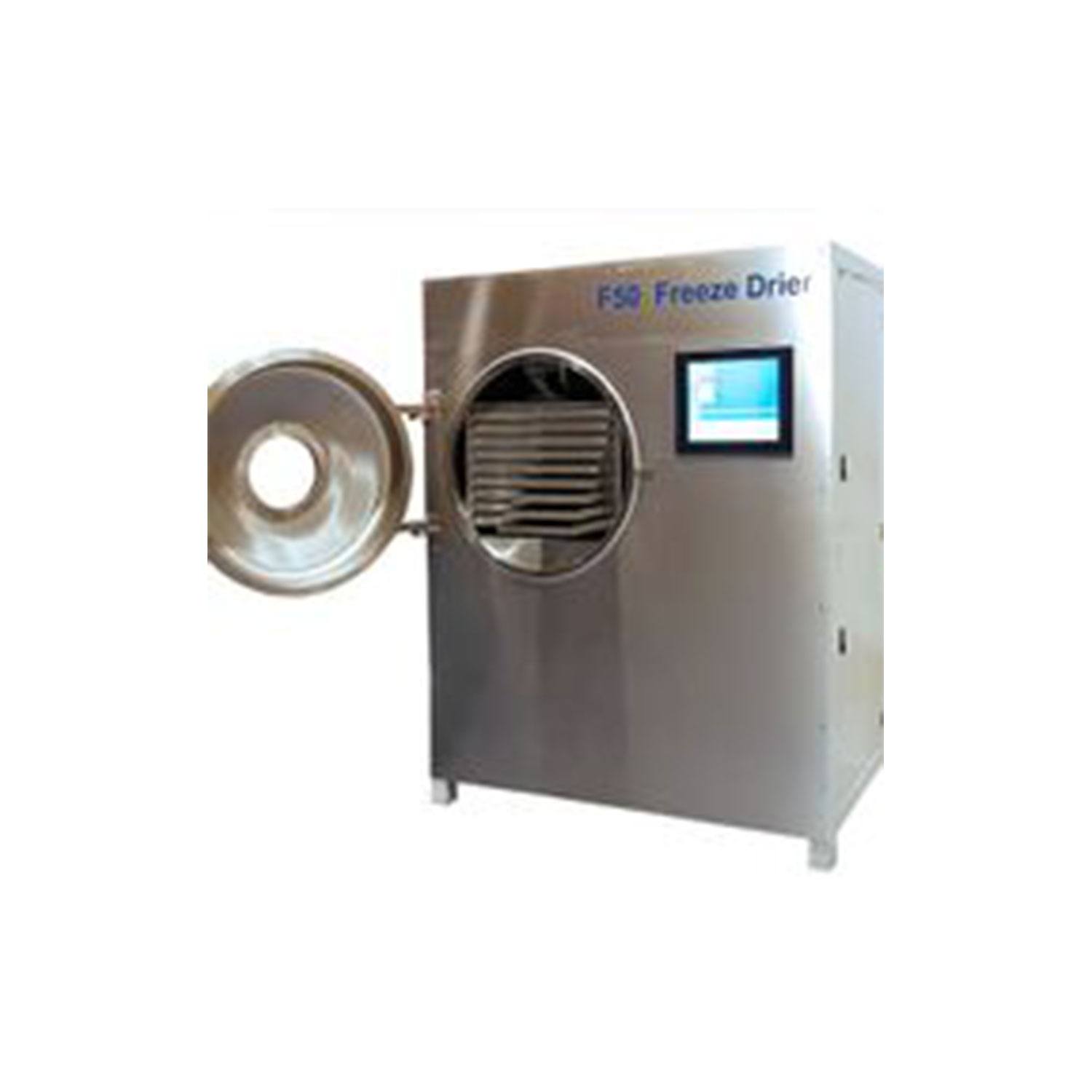

CannaFREEZE FC50 Series Freeze Dryer Package
The FC Series is the newest freeze dryer series from CannaFREEZE and includes programmable control. It is a general-purpose, food-grade freeze dryer.
The FC Series freeze dryers are short cycle, high-performance units that feature stainless steel shelves for direct conductance of heat to the product. Freeze drying conduction does not require high shelf temperatures, and it is instrumental in retaining targeted compounds.
All FC Series freeze dryers process full loads within 24 hThes.
Description
| Model | FC 50 with 15 kW Chiller |
| Ice Condenser Capacity | 165 lbs |
| Ice Condenser Performance | 132 lbs / 24 hrs |
| Ice Condenser Temperature | -76°F |
| Defrost | Hot Gas |
| Shelf Dimensions | 25.6” x 31.5” |
| Number of Shelves | 9 1 |
| Shelf Area | 549 sq ft |
| Shelf Spacing | 2.36” |
| Shelf Temperature | -58°F to 194°F |
| Cooling System | Water Cooled |
| Refrigeration | Two Stage |
| Unit Dimensions (H x W x L) | 83” x 67” x 98” |
| Refrigerant | R-404 |
| Vacuum | Pfeiffer Duol 35 |
| Electrical | 460V 50/60hz 3 Phase Neutral 40 Amps |
| Weight | 3908 lbs |
| Chiller Electrical | 460V 60Hz 3 Phase 13 Amps |
| Chiller Tank Volume | 30.4 Gal |
| Chiller Dimensions (L x W x H) | 51.6” x 26” x 55.1” |
| Chiller Weight | 765 lbs |
| Chiller Inlet Water Temperature | 69°F |
| Chiller Outlet Water Temperature | 59°F |
| Glycol Type | 25% Propylene Glycol |
| Chiller Ambient Temperature | 95°F |
| Cooling Capacity | 5.12 Tons / 61,440 Btu/Hr |
| Max Ambient Temperature | 108°F |
- Fast-drying capabilities of 24 hThes for 33 – 66 lbs of material
- Fast initial product freezing via conduction
- Fully programmable automatic cycle with 17″ touch screen HMI
- LCD vacuum and temperature displays
- Perfect for product development and small scale
- Remote access via internet and direct factory support
- Shelf area of 28 square feet and a shelf spacing of 2.36″
- Fast-drying capabilities of 24 hThes for 55 – 110 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 56 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 15 kW chiller
- Fast-drying capabilities of 24 hThes for 110 – 220 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 112 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 30 kW chiller
- Fast-drying capabilities of 24 hThes for 275 – 550 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 280 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 60 kW chiller
- Fast drying capabilities of 24 hThes for 550 to 1100 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 549 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 120 kW chiller
