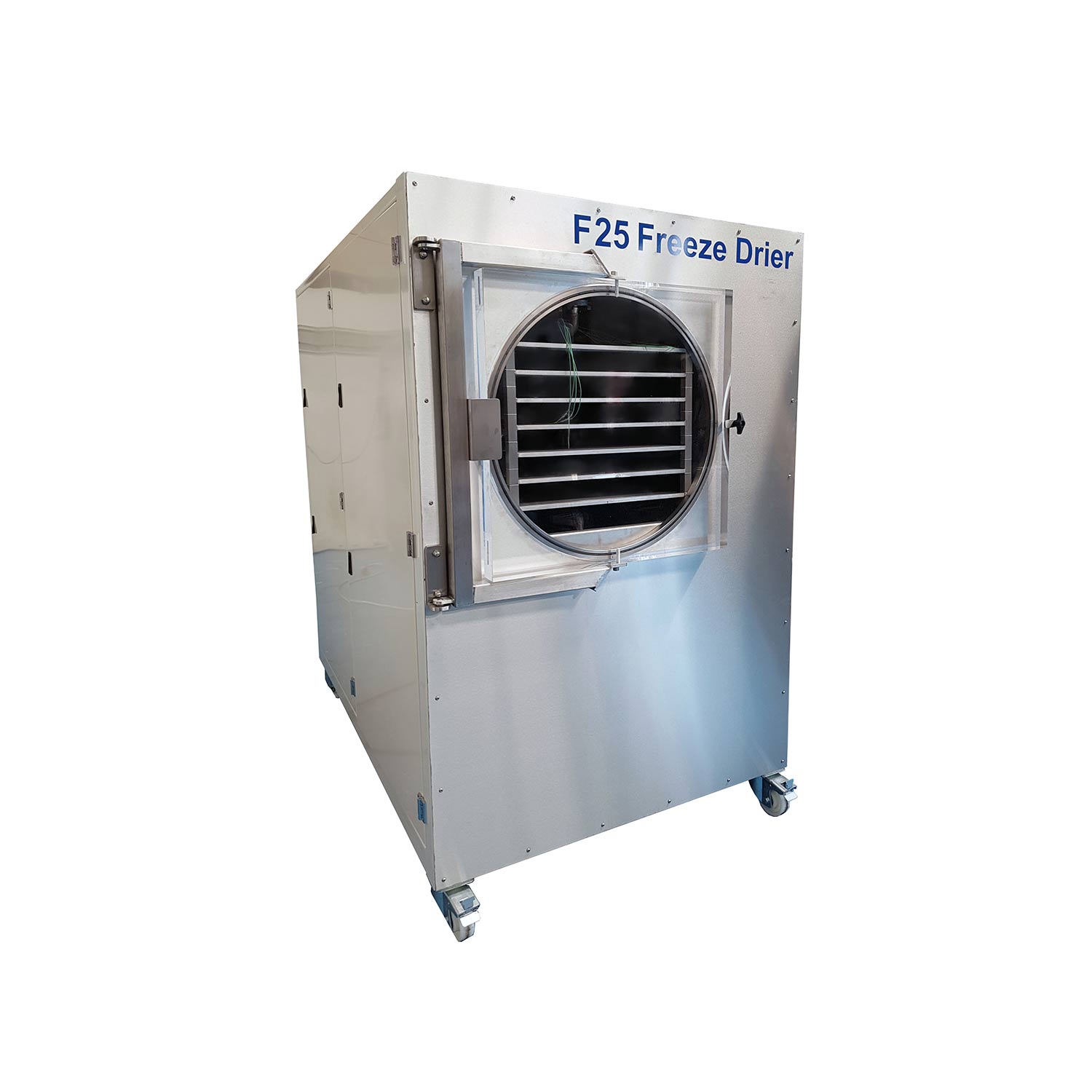

CannaFREEZE FC25 Series Freeze Dryer Package
The FC Series is the newest freeze dryer series from CannaFREEZE and includes programmable control. It is a general-purpose, food-grade freeze dryer.
The FC Series freeze dryers are short cycle, high-performance units that feature stainless steel shelves for direct conductance of heat to the product. Freeze drying conduction does not require high shelf temperatures, and it is instrumental in retaining targeted compounds.
All FC Series freeze dryers process full loads within 24 hThes.
Description
| Model | FC 25 |
| Ice Condenser Capacity | 88 lbs / 24 hrs |
| Ice Condenser Performance | 66 lbs / 24 hrs |
| Ice Condenser Temperature | -76°F |
| Defrost | Hot Gas |
| Shelf Dimensions | 19.76” x 25.6” |
| Number of Shelves | Two sets of (6 1) trays |
| Shelf Area | 28 sq ft |
| Shelf Spacing | 2.36” |
| Shelf Temperature | -58°F to 194°F |
| Refrigeration | Air Cooled |
| Unit Dimensions (H x W x L) | 82” x 59” x 86” |
| Refrigerant | R-404 |
| Vacuum | Pfeiffer Duoline 20M |
| Electrical | 230V 50/60hz 3 Phase Neutral 40 Amps |
| Weight | 3306 lbs |
- Fast-drying capabilities of 24 hThes for 33 – 66 lbs of material
- Fast initial product freezing via conduction
- Fully programmable automatic cycle with 17″ touch screen HMI
- LCD vacuum and temperature displays
- Perfect for product development and small scale
- Remote access via internet and direct factory support
- Shelf area of 28 square feet and a shelf spacing of 2.36″
- Fast-drying capabilities of 24 hThes for 55 – 110 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 56 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 15 kW chiller
- Fast-drying capabilities of 24 hThes for 110 – 220 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 112 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 30 kW chiller
- Fast-drying capabilities of 24 hThes for 275 – 550 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 280 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 60 kW chiller
- Fast drying capabilities of 24 hThes for 550 to 1100 lbs of material
- Fully programmable automatic cycle with 19″ touch screen HMI
- Remote access via internet and direct factory support
- Shelf area of 549 square feet and shelf spacing of 2.36″
- Fast initial product freezing via conduction
- Water cooling for refrigeration system provided by 120 kW chiller
