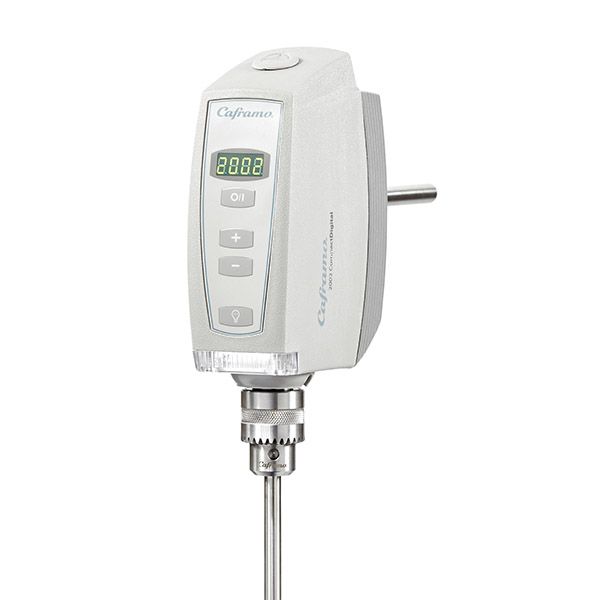

Caframo BDC2002 Compact Overhead Stirrer

$1,688.25

Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage.

Product total
Options total
Grand total
SKU: BDC2002 Category: Brand:

Description

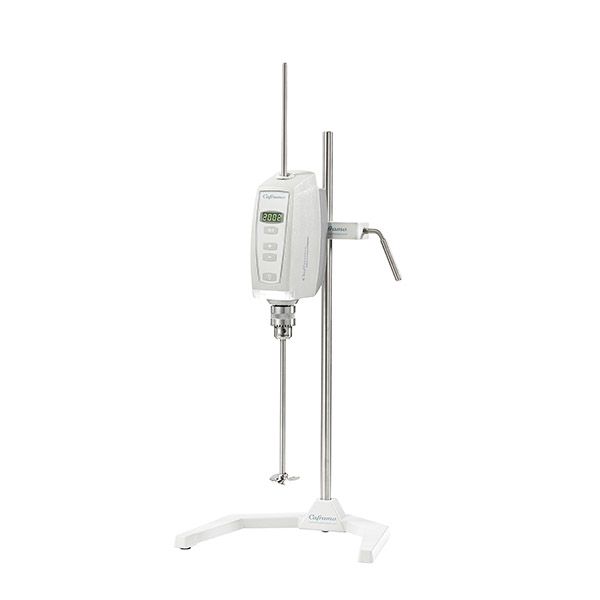

Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty.





Features
  • Stirlight™
  • Sealed housing
  • Brushless DC motor
  • Digital display
  • Through shaft
  • Auto Start
  • Electronic digital control



Benefits
  • Allows monitoring of mixing properties of batches
  • Keeps liquids and moisture out in aggressive environments
  • High efficiency (less heat)
  • Precise speed adjustment
  • Easy impeller adjustment saves time
  • Resumes stirring at last set speed automatically when power is restored
  • Set speed is maintained as viscosity changes
  • Automatic overload protection











Specifications
Model BDC2002
Speed40-2002 rpm
Volume Maximum25 L (6.5 US Gallons)
Viscosity Maximum15,000 mPas (15,000 cP)
Torque Maximum70 Ncm (6 in-lbs = 100 in-oz)
Output Power40 Watts (1/18 hp)
Speed DisplayYes
Speed Accuracy± 1 rpm or ± 3% of reading
Torque DisplayNo
Zero TorqueNo
TimerNo
Through ShaftYes
Chuck Maximum Shaft Diameter10 mm (⅜ in)
Chuck GuardAvailable
Rotation DirectionClockwise only
Auto StartYes
HousingEpoxy-coated zinc
WeightPower Supply: 0.5 kg (1), Stirrer: 3.0 kg (7)
IP RatingIP42
Voltage100-240 volt must use Caframo power supply
Frequency50/60 Hz
Ambient Temperature Operation5-40 °C (41-104 °F)
Relative Humidity Operation80 %
ApprovalsCSA listed to Canada and US standards
Warranty3 years
