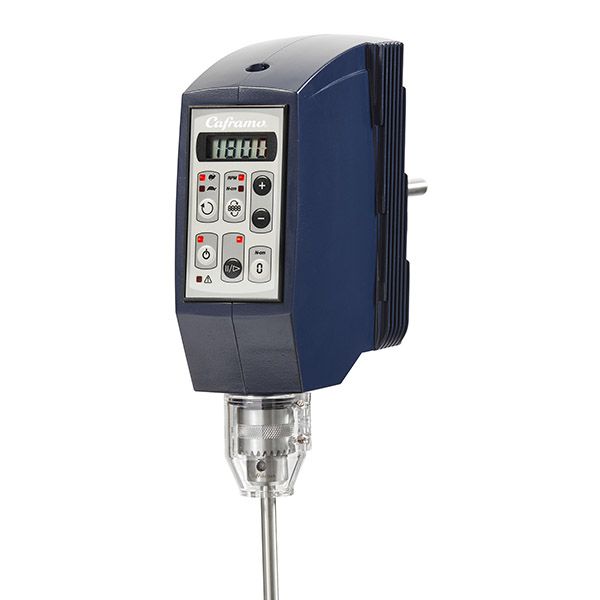

Caframo BDC1850 Ultra Torque Overhead Stirrer
$2,682.00
Caframo’s Ultra Torque 1850 lives up to its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer. This model is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches. The TENV housing and quality construction are a match in industrial, food, and pharma manufacturing environments. You are guaranteed to get more power out of your Caframo stirrer.
Description
Caframo’s Ultra Torque 1850 lives up to its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer. This model is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches. The TENV housing and quality construction are a match in industrial, food, and pharma manufacturing environments. You are guaranteed to get more power out of your Caframo stirrer. The unique two speed transmission transfers the motor’s power to the chuck with 95% efficiency. Rugged construction including a brushless DC motor, TENV metal housing and clear chemical resistant chuck guard make the Ultra Torque the perfect match for the toughest environments.
“These are strong running machines that get abused almost daily.” Director of Operations, coatings toll manufacturer.
Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty. Power to mix high viscous/high volume batches in lab or pilot plant applications. Caframo’s Ultra Torque offers the greatest torque capabilities available in a bench top stirrer.
Features
- Brushless DC motor
- Totally enclosed metal housing
- Electronic control
- Smart two-speed transmission
- Through shaft
- Chuck guard included
Benefits
- High efficiency (less heat)
- Protection from dust and product splashing
- Precise speed adjustment and speed maintenance as viscosity changes
- Transmission selects high-torque or high-speed range
- Easy impeller adjustment saves time
- Safely encloses spinning chuck to protect user
- Protects chuck from splashes
Key Specifications:
- Speed Range rpm: 12 – 1800 rpm
- Max Torque: 565 Ncm
- Max Viscosity: 90,000 cP
- Output Power:1/5 hp, 150 watts
- Max Volume: 80 litres
Applications:
- Personal care formulation
- Media prep
- Polymers and epoxies
- Paints and coatings
- Mining hydrometallurgy
|
