C1D1 Fire Rated Extraction Booth
Design meets functionality with the most versatile hydrocarbon and flammable liquid extraction booths on the market. C1D1 Labs modular designs allow for easy install, certification and use. C1D1 Labs extraction booths will save you both time and money following your architects and engineering teams into what we like to call “black holes of engineering”. Purchase an ethanol extractor from C1D1 Labs in addition to our room, and also receive a free lab design!
Description
Design meets functionality with the most versatile hydrocarbon and flammable liquid extraction booths on the market. C1D1 Labs modular designs allow for easy install, certification and use. C1D1 Labs extraction booths will save you both time and money following your architects and engineering teams into what we like to call “black holes of engineering”. Purchase an ethanol extractor from C1D1 Labs in addition to our room, and also receive a free lab design! Stop wasting your time, get approved, and start making money.
Features
- Engineer Peer Review

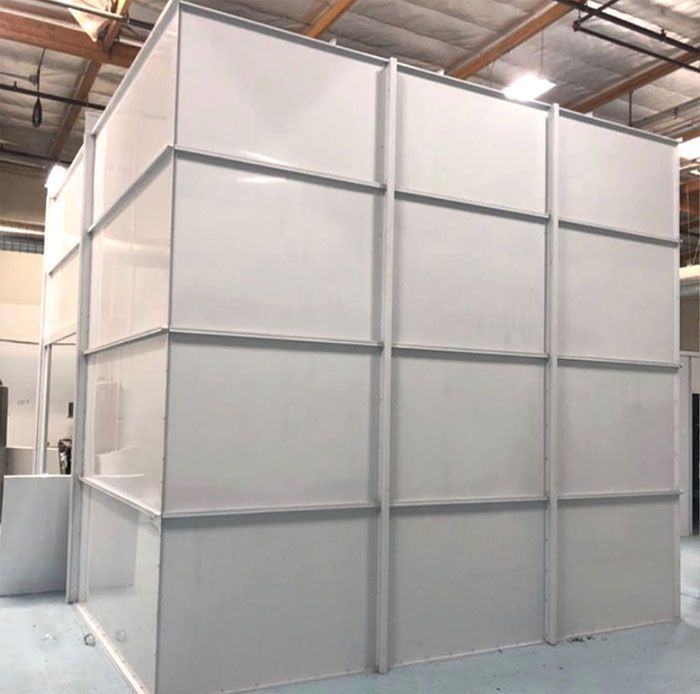

- Modular 18-guague stainless steel panels

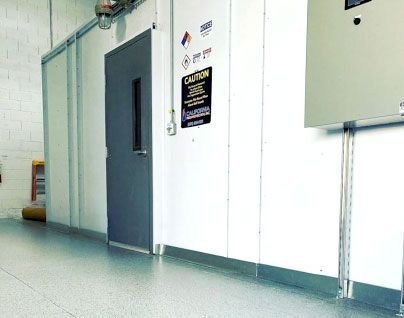

- Front door: 3’W x 7’8” T, 90-minute fire rating steel construction
- 1, 2, 3 and 4-hour fire rating available

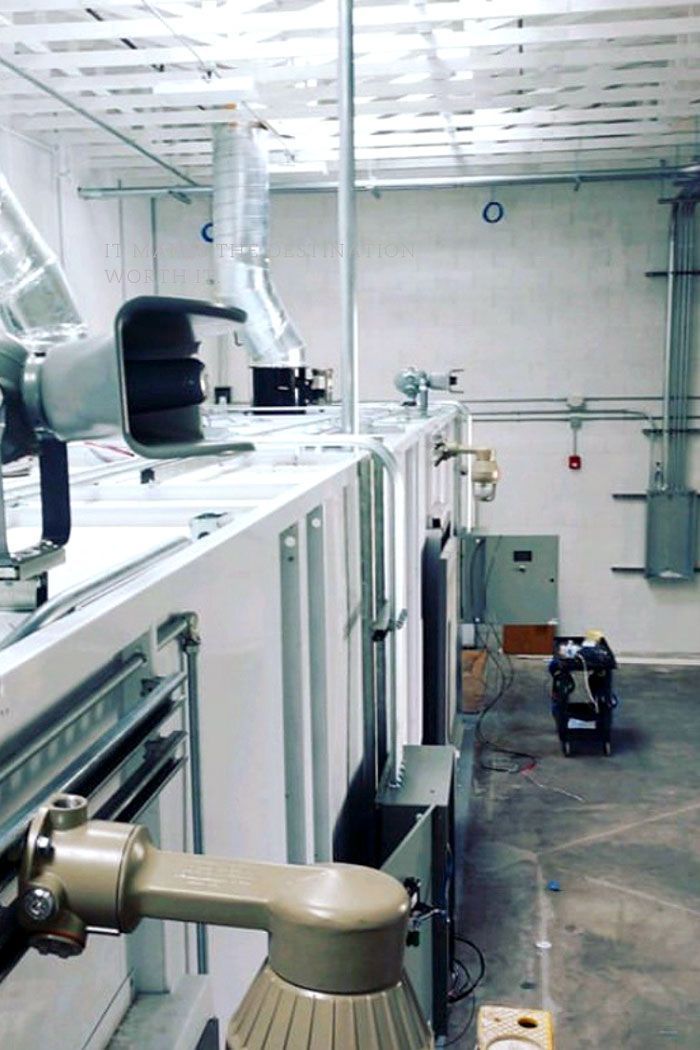

- Class 1 Division 1 LED light fixtures with 7,000 lumens each
- Gas detection: Explosion-proof intake and exhaust fans- programmed to purge when LEL is reached
- Explosion proof (M2A), connects to alarms
- HZEX Class 1 Division 1 emergency exit light
- UL listed control panel box, weatherproof for outdoor units
- Power requirements: 208-240V, 1~Phase, 35 Amps
Increase your MAQ’s
C1D1 Labs knows the in’s and out’s of local, state and national fire codes. We design our modular hydrocarbon and ethanol booths to not only satisfy your local fire department, but we are experienced technicians who know what your extraction company needs.

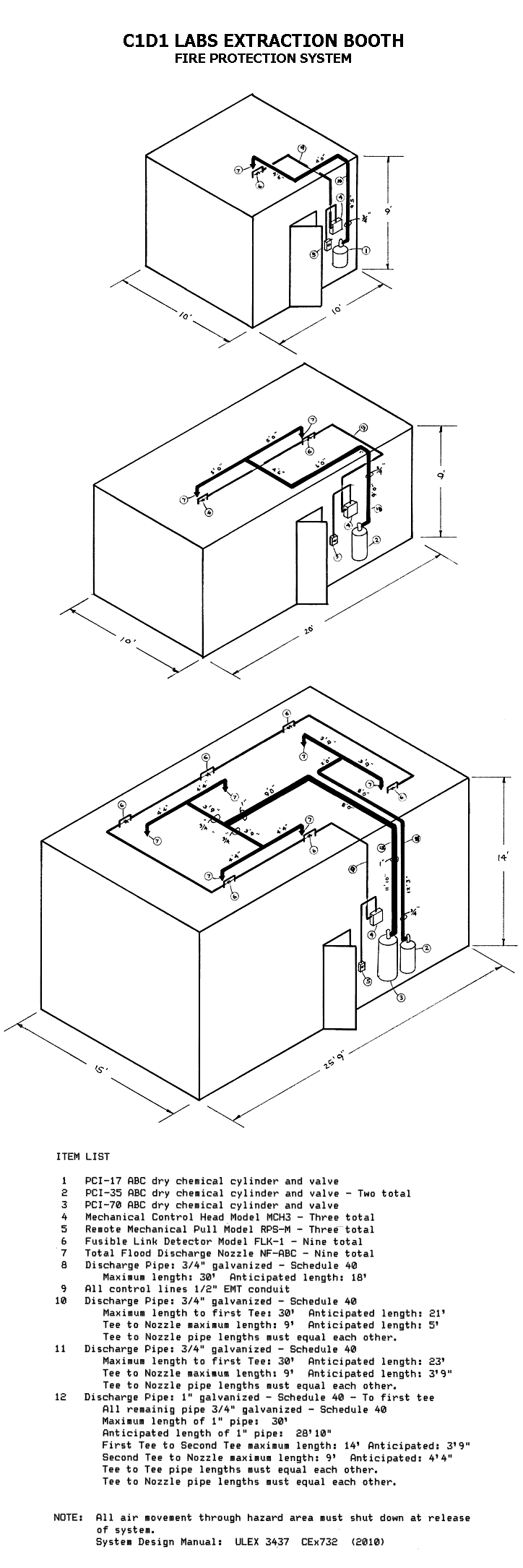

One of the most restricting bottlenecks extraction companies face is Maximum Allowed Quantities (MAQs) for their flammable liquids and combustible gasses. One of many ways our company increases your MAQ for ethanol and hydrocarbon extraction is fire suppression. C1D1 Labs works closely with licensed fire suppression contractors to provide solutions for our clients.
Many times we may suggest manifolding directly to your existing fire sprinklers in your building. This can be a much more cost effective solution rather than an automatic dry chemical system.
Interior Size – 10’Wx10’Lx9’H / Exterior Size – 10’3Wx10’3Lx9’8″H
FREB20910
Interior Size – 10’Wx20’Lx9’H / Exterior Size – 10’6Wx20’3Lx9’8″H
FREXB101220
Interior Size – 10’Wx20’Lx12’5″H / Exterior Size – 10’6Wx20’3Lx12’5″H
FREB111026
Interior Size – 10’9″Wx25’9″Lx10″H / Exterior Size – 11’5″Wx26’5Lx10’5″H
FREB151426
Interior Size – 15’Wx26’Lx14’H / Exterior Size – 16’Wx26’3″Lx14’8″H
