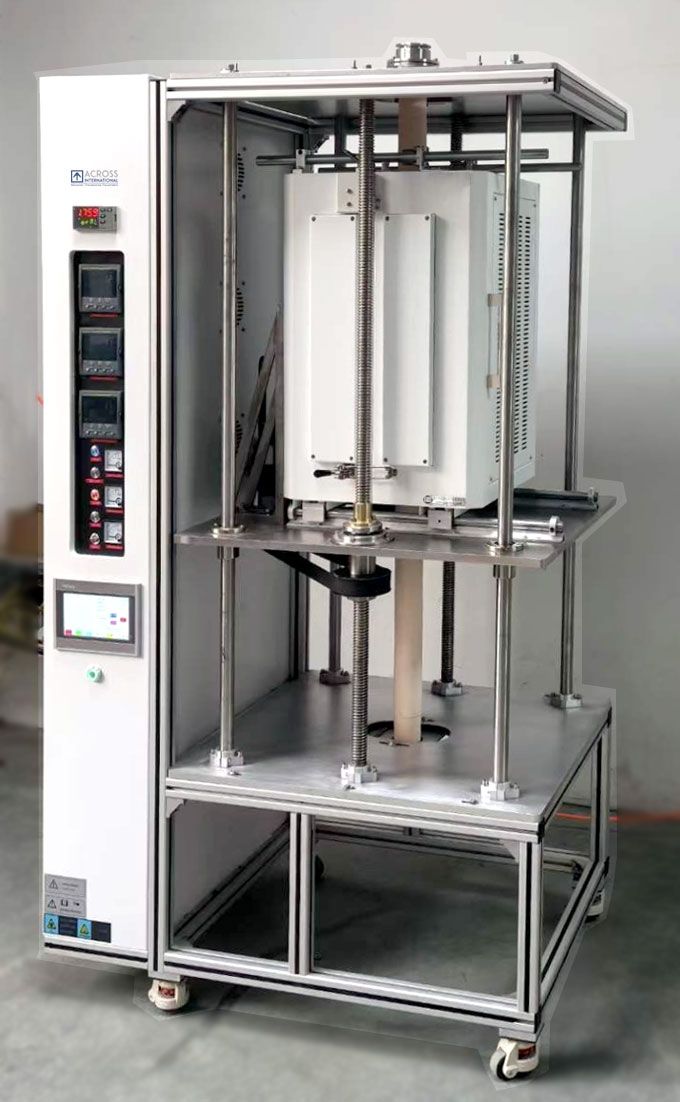

Bridgman Crystal Growth Tube Furnace 1700C 60-100mm OD 1-Zone With Mosi2 Heating Elements

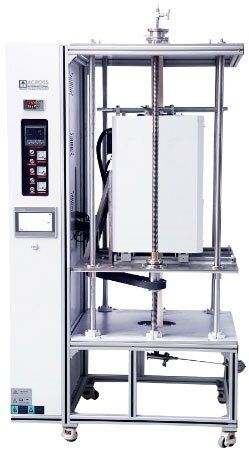

Bridgman Crystal Growth Tube Furnace 1700C 60-100mm OD 1-Zone With Mosi2 Heating Elements - Image 2

Bridgman Crystal Growth Tube Furnace 1700C 60-100mm OD 1-Zone With Mosi2 Heating Elements

$59,833.48

Furnace operation is controlled by high precision 50-segment Eurotherm 3504 (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Product total
Options total
Grand total
SKU: CGF1700F Category: Brand:

Description

Please give us a call for the details on the sizes.

Ai CGF1700F series Crystal Growth Furnaces come with swing-open chamber; it also features the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.


Furnace operation is controlled by high precision 50-segment Eurotherm 3504 (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.



Features

  • Swing-open furnace chamber for fast and easy tube access
  • Digital multi-segment automatic hoisting control
  • High precision Eurotherm 3504 PID controller provides optimum thermal process with minimal overshoot
  • Built-in computer interface
  • Durable type K thermocouple
  • Additional thermocouple and Eurotherm temperature display



Safety

  • Automatic hoisting limit switch
  • Overheat protection shuts down the furnace if the temperature is outside of the acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.



Warning! NEVER fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.







Specifications

1700°C Series (1-Zone)

Model

CGF1700F.60-80

CGF1700F.100

Electrical requirements

208-240VAC, 50/60 Hz, single phase, 5.2 kW, 25A

Tube material

High purity (99%) Al2O3 alumina

Maximum working temperature

1700 °C (2 hours max continuous run time)

Constant working temperature

1600°C

Constant working temperature under vacuum

1400°C

Rated vacuum pressure

0.001 Pa / 0.0075 millitorr / 0.00001 mbar

Rated positive pressure

0.02 MPa / 150 torr / 3 psi

Heating element type

MoSi2

Thermocouple type

B

Refractory lining

Mitsubishi (Japan) high quality 1800 grade fiber alumina

Temperature controller

Eurotherm 3504

Maximum heating rate

10 °C / minute

Heating zone length

7.9”

Constant temperature zone length

2.8”

Temperature controller precision

± 1°C

Vacuum sealing flange kit

1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

Automatic hoisting control

0.1-2000 um/second

0-100 mm range

Built-in limit switch

Multi-segment settings (each segment has its own time/speed)

Gas inlet/outlet

1/4" hose barb

Unit dimensions (with hoisting mechanism)

44 x  28 x  71” (LxWxH)

46 x 30 x  71” (LXWxH)

Unit weight

970 Ibs

1015 Ibs

Shipping weight

1125 Ibs

1200 Ibs

Shipping dimensions (with hoisting mechanism)

50 x 38 x 74” (LxWxH)

52 x 40  74” (LxWxH)

Compliance

CE

Warranty

1 yr

Standard Packages

Part description

Quantity

Part image

 CGF1700F Crystal Growth Tube Furnace
1 pc
 Alumina tube
1 pc
 Stainless steel sealing flanges1 set
 Alumina ceramic thermal block
1 set
 Thermal gloves1 pair

 Spare fuse2 pcs

Allen Keys1 pc

25A UL Fuse1 pc


4A UL Fuse
1 pc


 Furnace and Eurotherm controller manual2 pcs


Eurotherm USB kit & CD
1 pc
