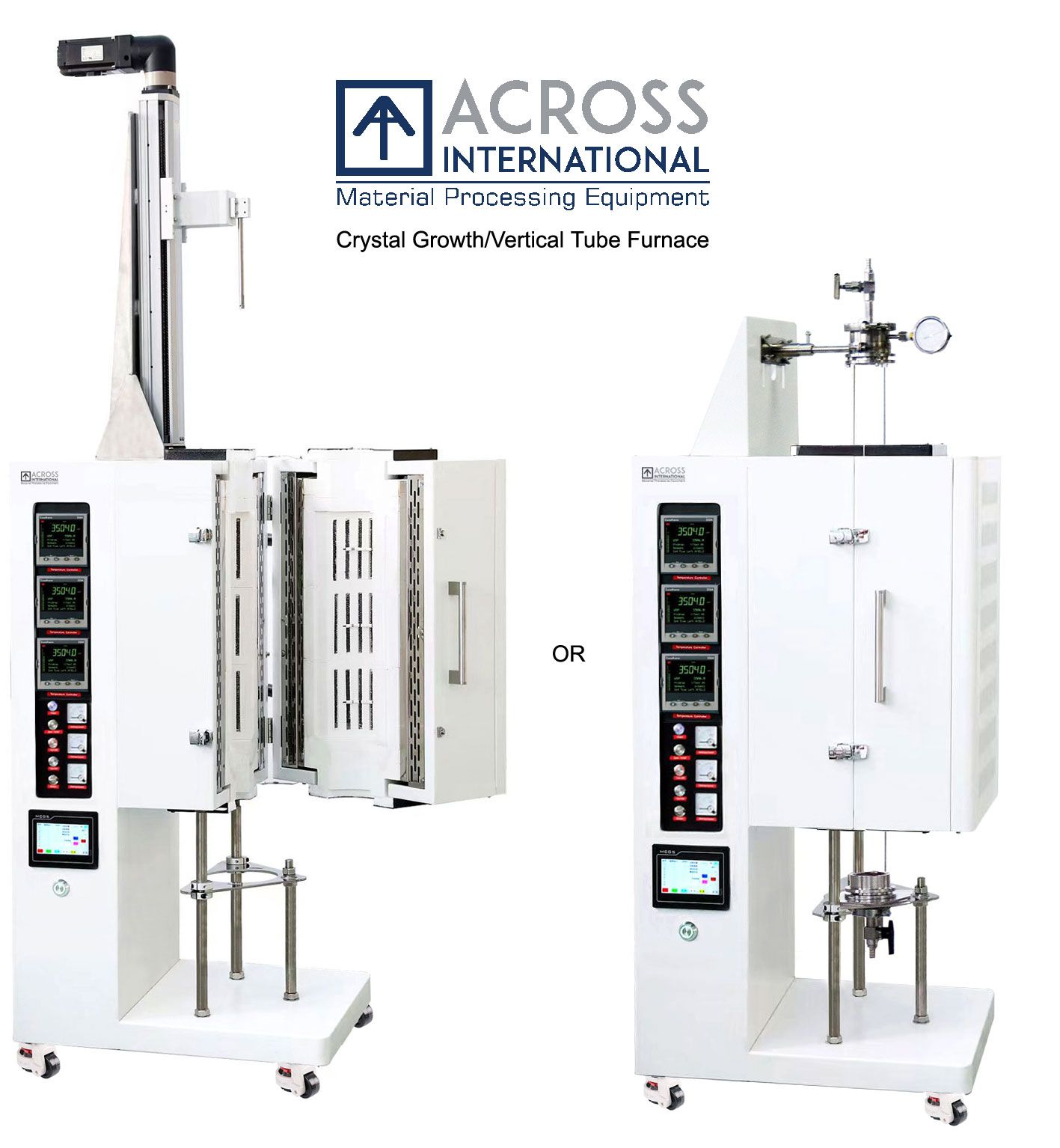

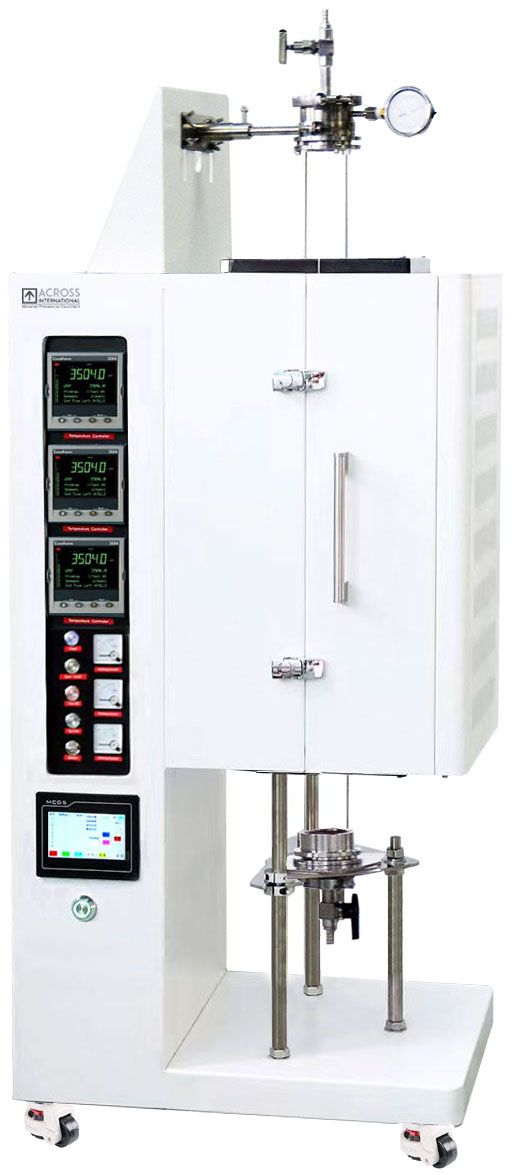

Bridgman Crystal Growth Furnace 1200C 3-Zone with Kanthal Heating Elements & Swing-Open Chamber 60-100mm

Ai CGF1200C series Crystal Growth Furnaces come with swing-open chamber, it also features the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.

Furnace operation is controlled by high precision 50-segment Eurotherm 3504 (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

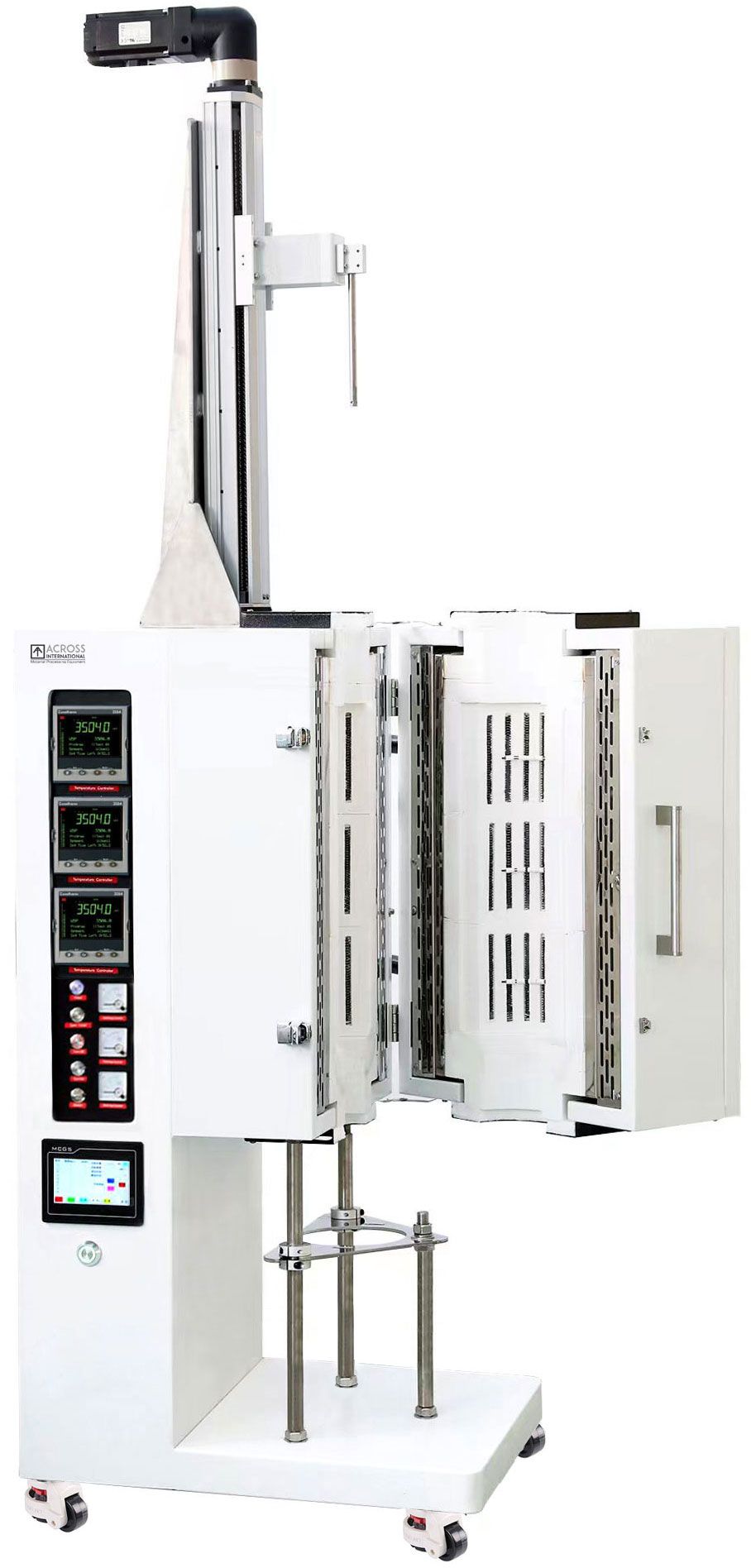

• Swing-open furnace chamber for fast and easy tube access
• Digital multi-segment automatic hoisting control
• High precision Eurotherm 3504 PID controller provides optimum thermal process with minimal overshoot
• Built-in computer interface
• Durable type K thermocouple
• Can be easily converted into a 3-zone vertical tube furnace (optional accessories required)

Safety

• Automatic hoisting limit switch
• Overheat protection shuts down the furnace if the temperature is outside of the acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.
