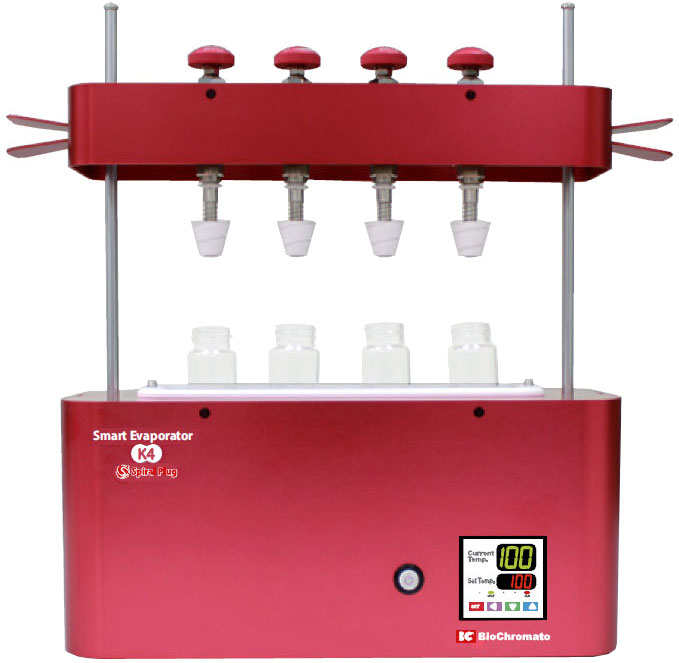

BioChromato K4 Bump-Free 4-Channel Smart Evaporator 110V

BioChromato K4 Bump-Free 4-Channel Smart Evaporator 110V

$16,284.06

Product total
Options total
Grand total
SKU: K4.110 Category: Brand:

Description


Features

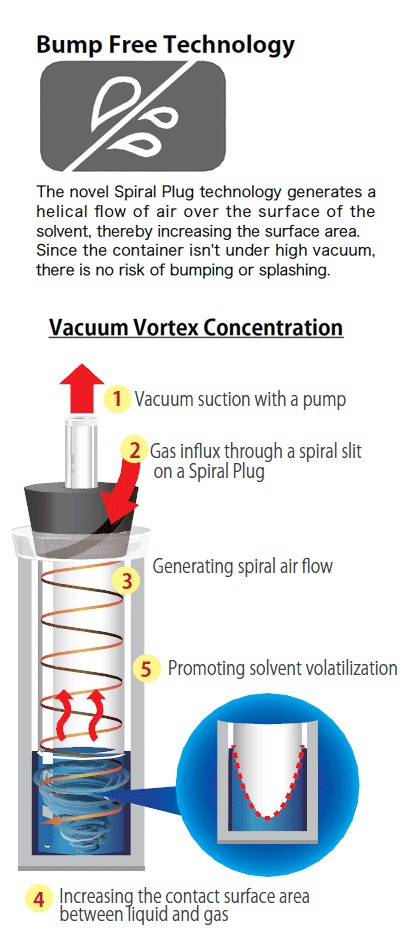

  • DMSO, DMF, water can be evaporated with no bumping
  • 4 samples at a time
  • Solvent removal directly from HPLC/LC/GC vials
  • Sample concentration after fractionation, NMR measurement, etc.

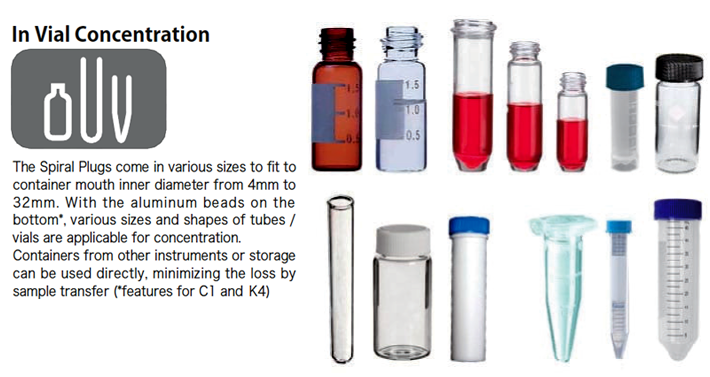

  • In-vial concentration
  • Aluminum beads as heat media, compatible with vials with various bottom shapes
  • Minimizes loss by sample transfer
  • Made and imported from Japan

Application

  • Solvent removal (for substitution) after HPLC, LC/MS, GC/MS
  • Sample concentration after preparative fraction
  • Solvent removal after NMR measurement
  • Concentration after solid phase extraction
  • Concentration of natural product extract, radioisotope labeled compounds and surfactant solutions
  • Pretreatment for multiple samples in drug and photosynthetic pigment analysis





Specifications

SPECIFICATIONS



 Model
 K4 Smart Evaporator
 Heater
 Style: 4 vial holders with aluminum beads as heat media (like the C1)
 Size: 8.9 x 2.2 x 2.3" (WxDxH)
 Heater temperature range Room temperature to 100℃
 Inner mouth diameter of compatible vials
 φ4mm to 32mm
 Working environment Temperature: 10℃ to 40℃
 Humidity: 20% to 80%
 Dimensions
 13.4 x 6 x 16.3" (WxDxH, except protruding parts)
 Weight
 10.6s.
Standard Packages

Standard package

 Part description

 Quantity

Part image

BioChromato K4 Bump-Free 4-Channel Smart Evaporator 110V1 pc
Power Cord1 pc
Spiral Plug4 pc
Aluminum Beads1 pc
Hose Barbs1 pc
Shaft2 pc
Screw2 pc
Hex Wrench1 pc
Instruction Manual 1 pc
