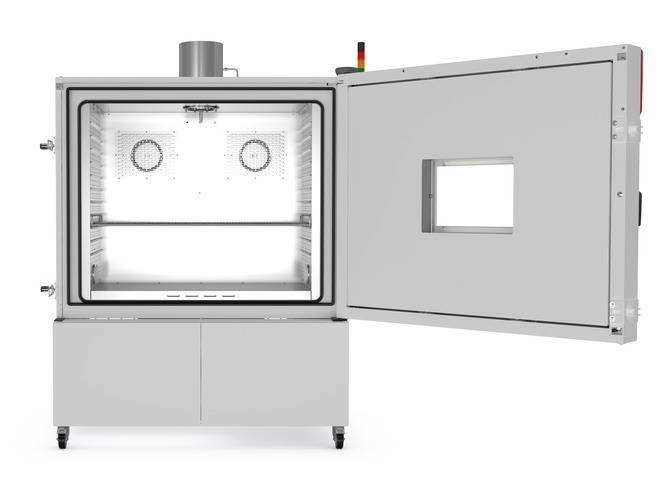

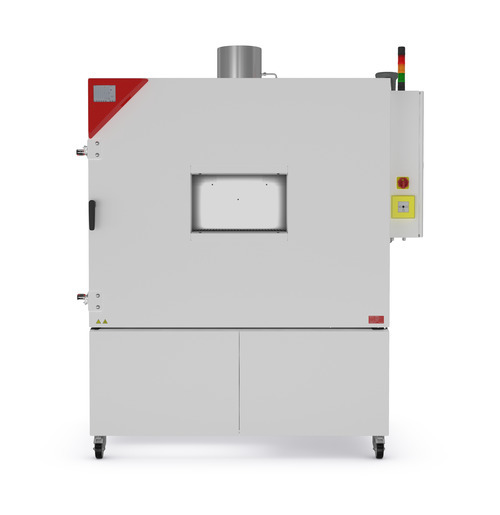

Binder LIT MK 720 Battery Testing Chamber

$169,877.82

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests. Benefits Safety thanks to extensive protective measures Homogeneous climate conditions thanks to APT.Line tm preheating chamber Extensive programming and data collection Excellent overview of the test object thanks to a large heated viewing window

Product total
Options total
Grand total
SKU: Binder.MK720 Category: Brand:

Description

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.



Benefits

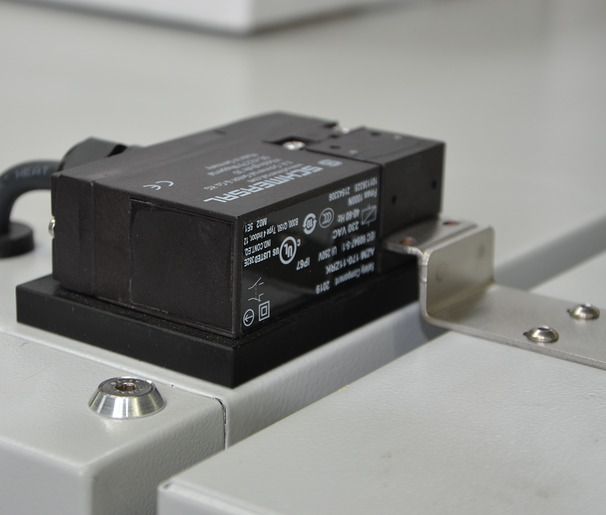

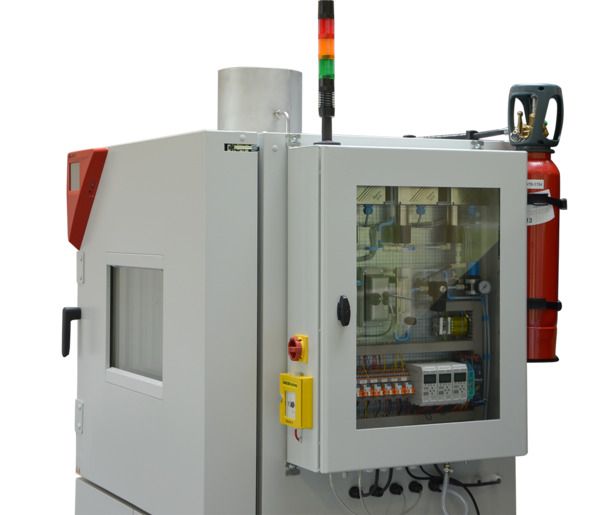

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.Line tm preheating chamber
  • Extensive programming and data collection
  • Excellent overview of the test object thanks to a large heated viewing window

Specifications

Performance Data Temperature

Designation

LITMK720-400V

LITMK720-480V-C

Temperature range-40...110 °C-40...110 °C
Temperature uniformity dependent on set value0.3...2 ± K0.3...2 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-54 K/min4 K/min
Cooling down time from 110°C to -40°C100 min100 min
Average cooling down time according to IEC 60068-3-53.4 K/min3.4 K/min



Electrical Data

Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power8,7 kW8,7 kW
Unit fuse16 A16 A
Phase (Nominal voltage)3~3~



Measures

Interior volume25.92 cu.ft25.92cu.ft
Net weight of the unit (empty)1287.50s1287.50s
Load per rack88.18s88.18s
Permitted load352.74s352.74s
Viewing window width20.00 inch20.00 inch
Viewing window height11.81 inch11.81 inch
Wall clearance back11.81 inch11.81 inch
Wall clearance sidewise7.87 inch7.87 inch

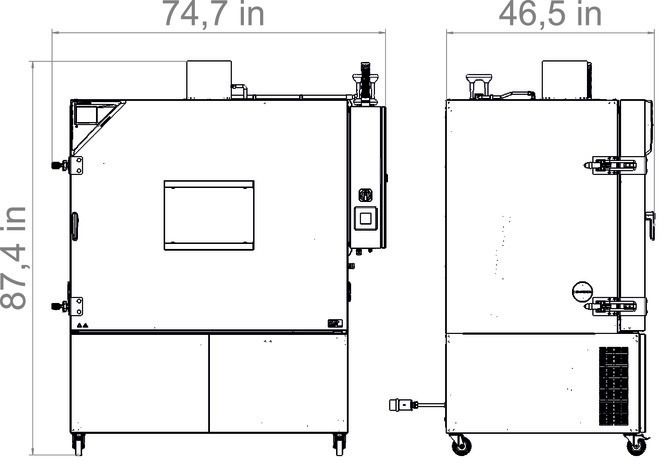

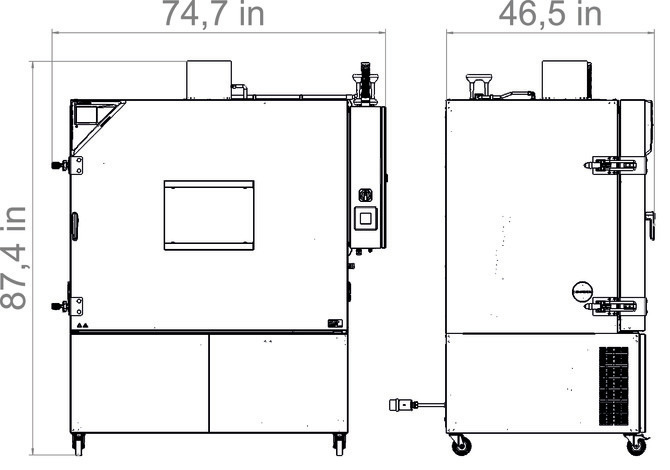

Housing dimensions not incl. fittings and connections

Width net70.63 inch70.63 inch
Height net78.94 inch78.94 inch
Depth net46.69 inch46.69 inch



Internal Dimensions

Interior width47.24 inch47.24 inch
Interior height40.16 inch40.16 inch
Interior depth23.62 inch23.62 inch
Unit doors11



Environment-Specific Data

Sound-pressure level65 dB(A)67 dB(A)
Energy consumption at 20°C1900 Wh/h1900 Wh/h
