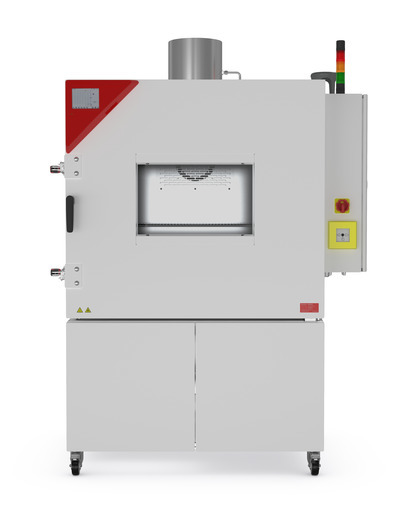

Binder LIT MK 240 Battery Testing Chamber

$146,732.32

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.

Product total
Options total
Grand total
SKU: Binder.MK240 Category: Brand:

Description

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.



Benefits

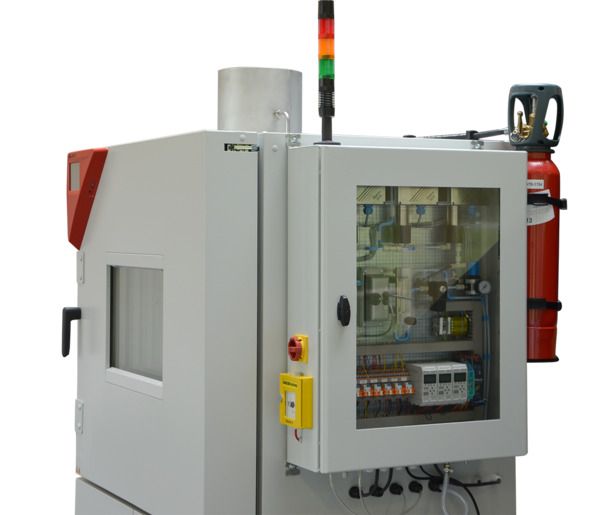

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.Line tm preheating chamber
  • Extensive programming and data collection
  • Excellent over view of the test object thanks to large heated viewing window

Specifications

Performance Data Temperature

Designation

LITMK240-400V

LIT MK240-480V-C

Temperature range-40...110 °C-40...110 °C
Temperature uniformity dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-55 K/min5 K/min
Cooling down time from 110°C to -40°C160 min160 min
Average cooling down time according to IEC 60068-3-53.5 K/min3.5 K/min



Electrical Data

Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power5,6 kW5,6 kW
Unit fuse16 A16 A
Phase (Nominal voltage)3~3~



Measures

Interior volume228 L228 L
Net weight of the unit (empty)375 kg375 kg
Load per rack30 kg30kg
Permitted load70 kg70 kg
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

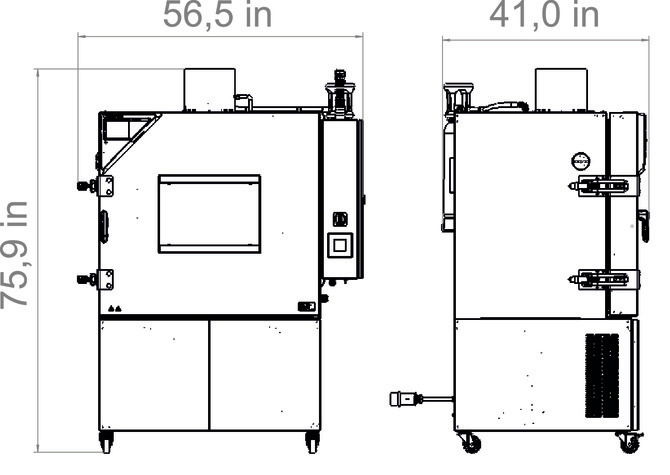

Housing dimensions not incl. fittings and connections

Width net1335 mm1335 mm
Height net1929 mm1929 mm
Depth net925 mm925 mm



Internal Dimensions

Interior width735 mm735 mm
Interior height700 mm700 mm
Interior depth443 mm443 mm
Unit doors11



Environment-Specific Data

Sound-pressure level62 dB(A)67 dB(A)
Energy consumption at 20°C1300 Wh/h1300 Wh/h
