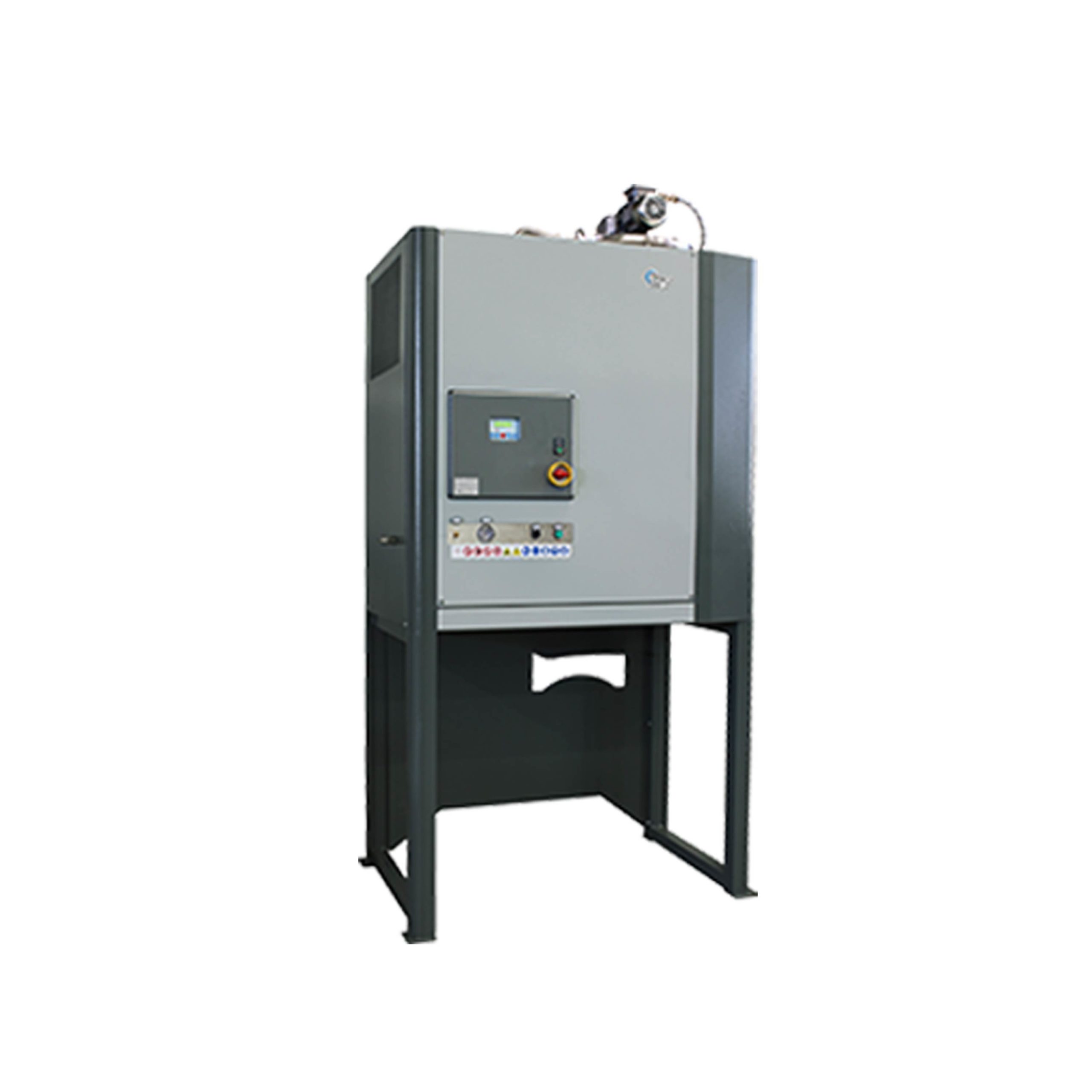

Automated Solvent Recovery System (ASRS) – Premium 120 Liters
In industrial or commercial-scale production, solvent recovery can be an unexpected bottleneck that isn’t easily addressed without a large capital investment.
The Automated Solvent Recovery System (ASRS) is a tried-and-true, compliant solution to this common problem.
Description
| Unit | 120 Liters | 200 Liters | 400 Liters |
|---|
- Gal/HThe (GPH)
- 10
- 15
- 30
- Size ( L x W x H in.)
- 75” x 43” x 110”
- 75” x 43” x 114”
- 83” x 55” x 118”
- Amps
- 12
- 16
- 29
- Chiller Amps
- 17
- 26
- 27
- User-selectable height allows the system to fit into a variety of lab spaces.
- The thermal oil jacket and electric heater ensure smooth and even heating of the solvent.
- Automatic filling means yThe unit will be continually “topped off”, and you can run automatic batches back-to-back without a user being present.
- Solvent level sensors give you precise control over the amount of solvent, and they pump solvent in and out of the unit.
- The PLC controller lets you regulate all process functions, and it has multiple redundant safety features including an alert/alarm if something goes wrong.
- Vacuum assistance creates a vacuum in the boiling chamber, which lowers the temperature needed to boil high-boiling-point solvents.
- All systems are UL2208 certified by ETL and have ATEX II 2g explosion-proof standard.
- 304 stainless steel construction.
- Solvent Tanks are included in the price.
