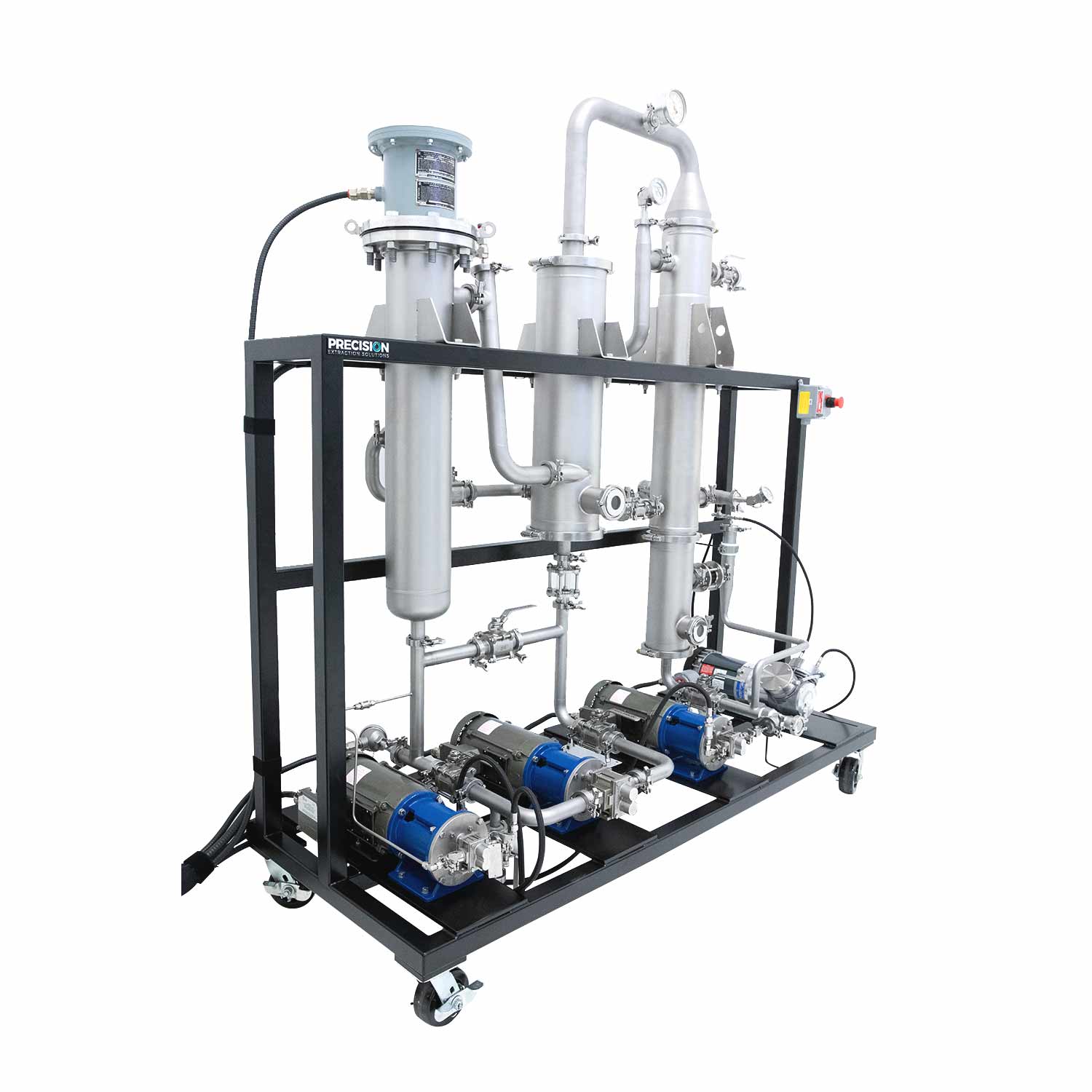

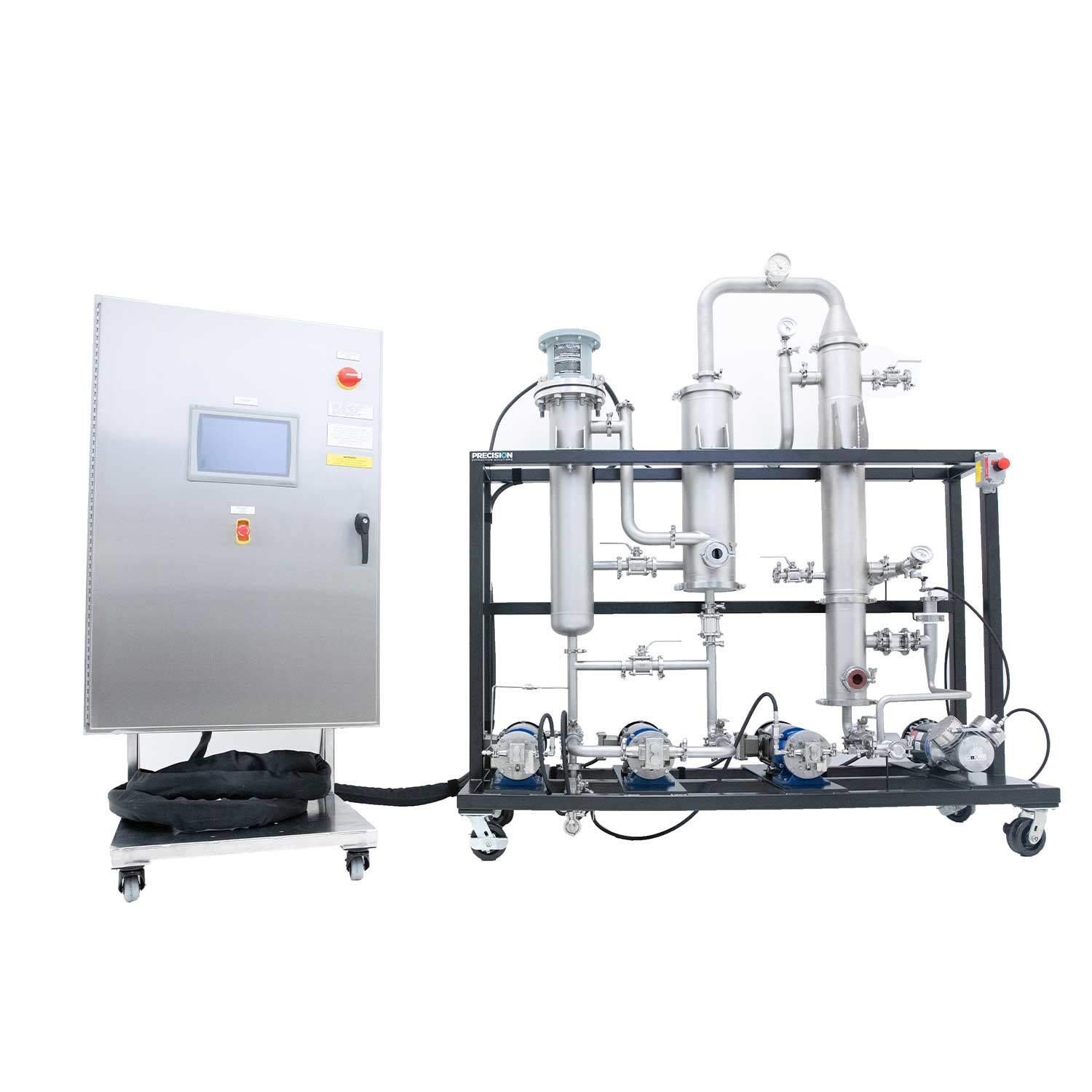

ASE-100 Solvent Evaporator
The ASE-100, by Precision Extraction, is a C1D1 and peer-reviewed solvent recovery system that can evaporate up to 100 liters per hThe of solvent solution.
Description
| Model | ASE 100 Solvent Evaporator |
| Dimensions (approx.) | 78” L x 35” W x 88” H |
| Control Panel Dimensions (approx.) | 36” L x 17” W x 57” H |
| Evaporation Rate | Up to 100L/h |
| Evaporation Method | Centrifugal |
| Occupancy Classification | F-1 ,H |
| Total Power Consumed | 40 kW, 480 VAC, 3~ |
| Throughput Capacity | 10L Crude Oil Per HThe @ 10/1 solvent crude ratio |
| Warranty** | One Year |
| PLC Control | C1D1 Tablet with Remote Monitoring Capabilities |
| Model | ASE 100 Solvent Evaporator |
| Dimensions (approx.) | 78” L x 35” W x 88” H |
| Control Panel Dimensions (approx.) | 36” L x 17” W x 57” H |
| Evaporation Rate | Up to 100L/h |
| Evaporation Method | Centrifugal |
| Occupancy Classification | F-1 ,H |
| Total Power Consumed | 40 kW, 480 VAC, 3~ |
| Throughput Capacity | 10L Crude Oil Per HThe @ 10/1 solvent crude ratio |
| Warranty** | One Year |
| PLC Control | C1D1 Tablet with Remote Monitoring Capabilities |
- Approved solvents: ethanol, heptane, methanol
- Continuous feed to the solvent evaporator and recovery system
- Designed, engineered, and manufactured in the USA
- Full human-machine interface (HMI) with touch screen
- Full load steady-state power: 31 kW
- Highly durable construction for long lifespan
- PLC controlled with C1D1 tablet and remote monitoring capabilities
- Proprietary recovery method designed for optimal efficiency
- Superior rising cyclonic evaporation technology
- Turnkey solvent evaporation and recovery system
