Sale!

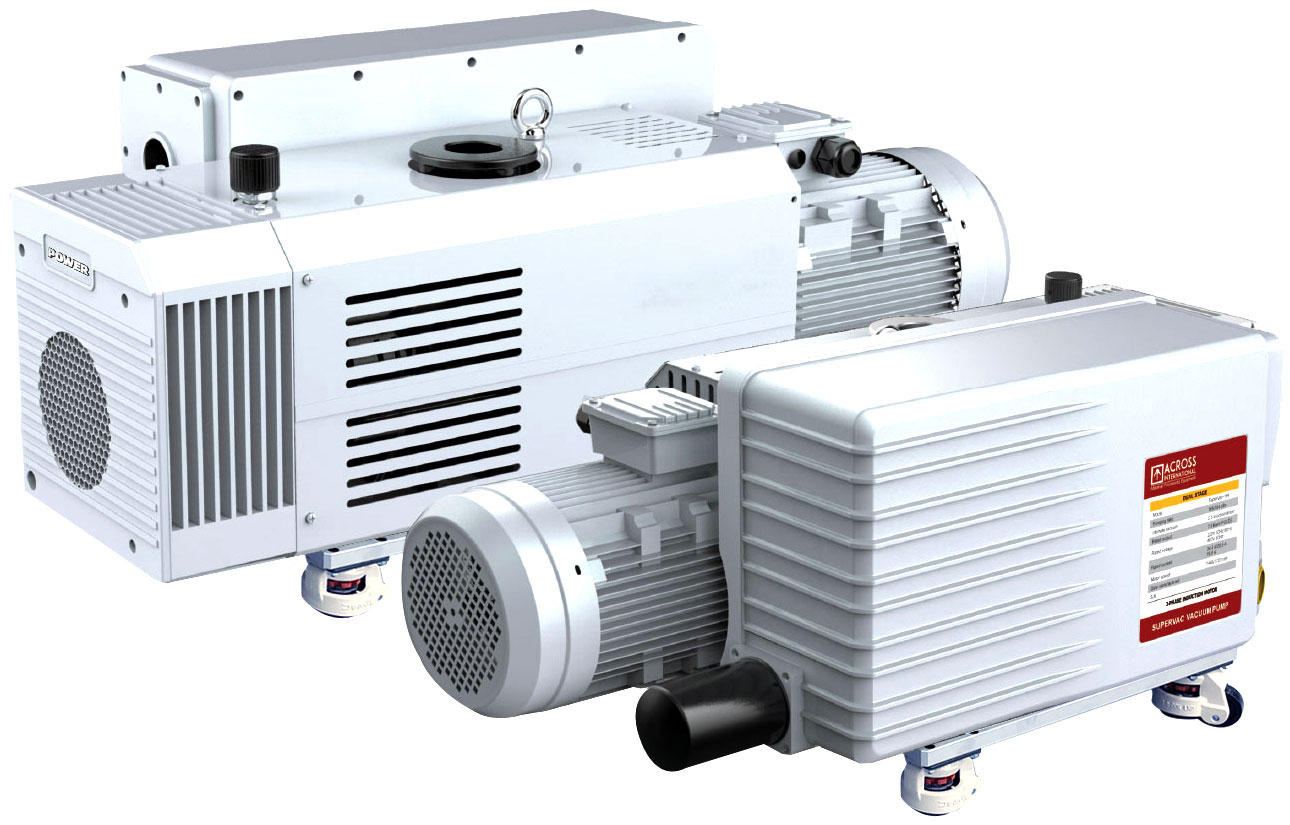

Ai SuperVac 194 cfm 2-Stage High Capacity Vacuum Pump

Original price was: $18,079.48.Current price is: $12,512.28.

The new Ai SuperVac 194 cfm dual-stage commercial grade high capacity vacuum pumps are designed for reliable long time continuous operation, they will take your equipment’s vacuum down to 0.5 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

Product total
Options total
Grand total
SKU: SV194 Category: Brand:

Description





The new Ai SuperVac 194 cfm dual-stage commercial grade high capacity vacuum pumps are designed for reliable long time continuous operation, they will take your equipment’s vacuum down to 0.5 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

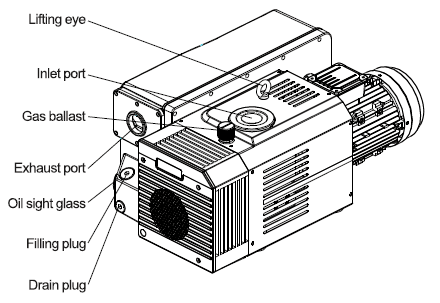

Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.

It is important to note that pumps should always be ran in a well ventilated area.

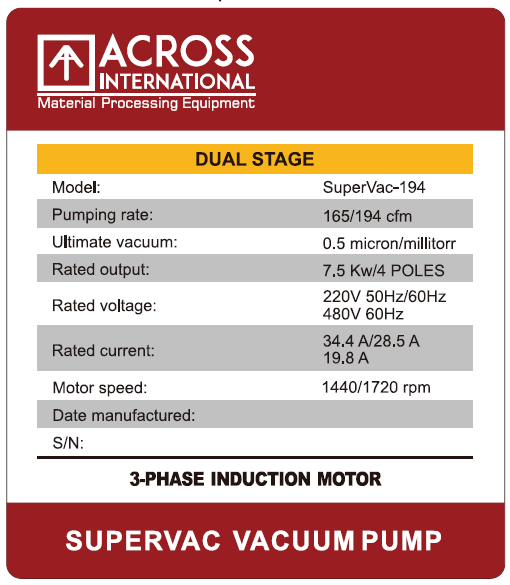

Specifications



 Electrical requirements
 220V/480V 50/60Hz Three phase, 7,500 watts

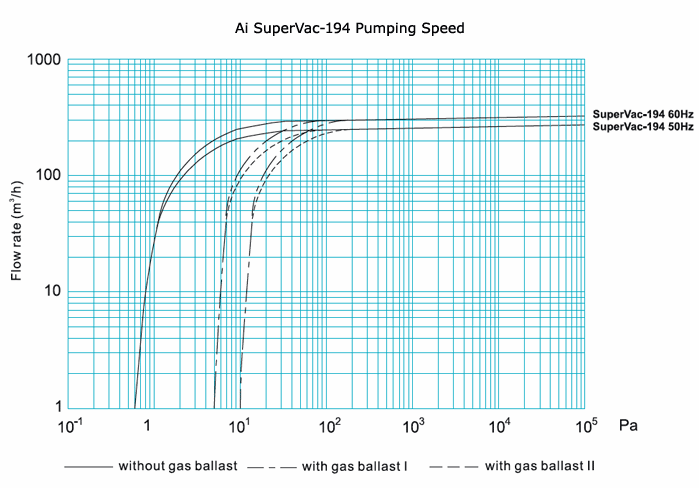

 Pumping rate
 194 cfm
 Ultimate vacuum without gas ballast
 0.5 micron/millitorr
 Ultimate vacuum with gas ballast
 6 micron/millitorr
 Inlet/outlet connection
 ISO-63 (ISO-63 to KF50 adapters included)
 Oil volume
 7-9 liter
 Motor rate 1720 rpm (60Hz)
 1440 rpm (50Hz)
 Working temperature 20C to 40C

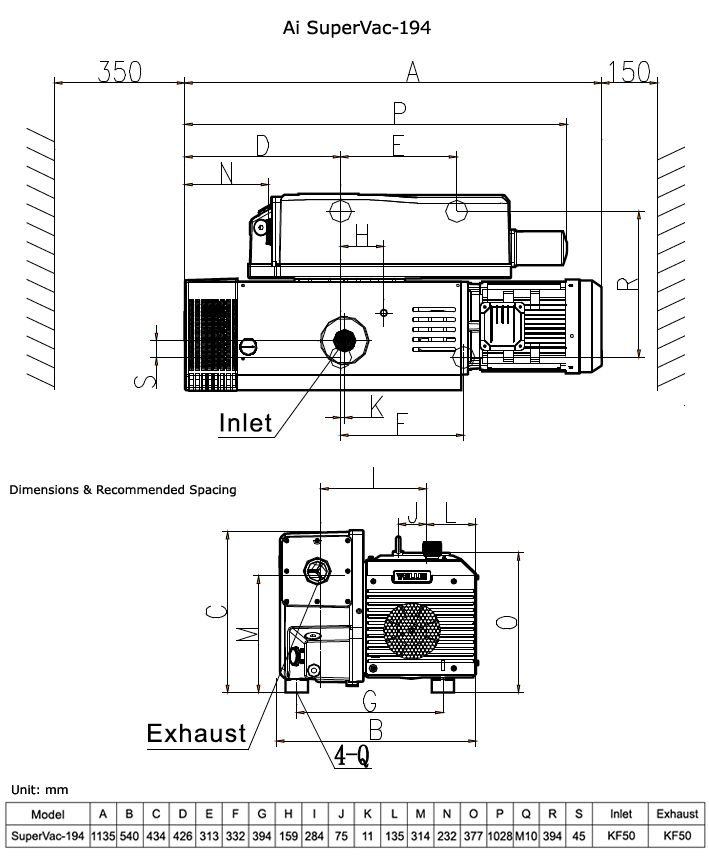

 Shipping dimensions (LxWxH)
 46 x 21 x 20" / 51 x 29 x 30"
 Unit/shipping weight
 485 Lb / 620 Lb
 Recommended oil Ultra-grade 19
 Noise level < 80 dB
 Warranty Two years
Standard Packages

Standard package



 Part description

 Quantity

Part image

 Ai SuperVac 194 cfm vacuum pump with exhaust oil mist filter
1 set

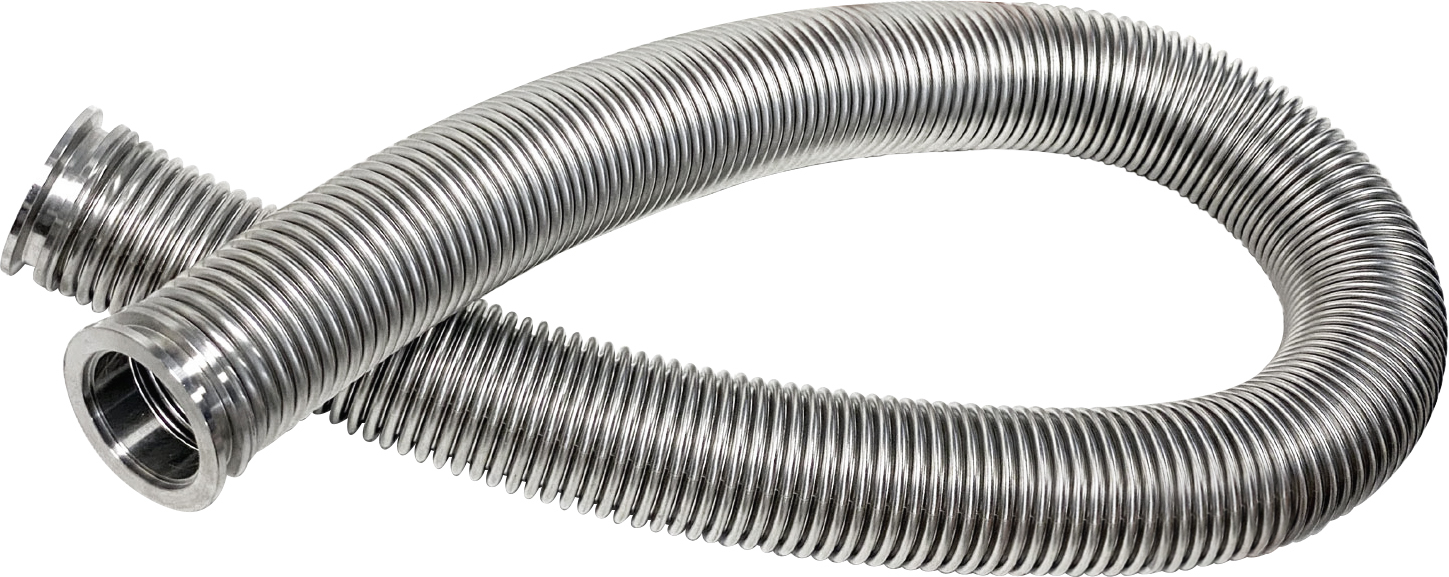

 KF50 flexible bellow - 6.5 ft1 pc
 KF50 quick clamp2 pcs
 KF50 centering ring2 pcs
 Ai premium vacuum pump oil - 4 liters
2 pcs
 Users manual1 pc
