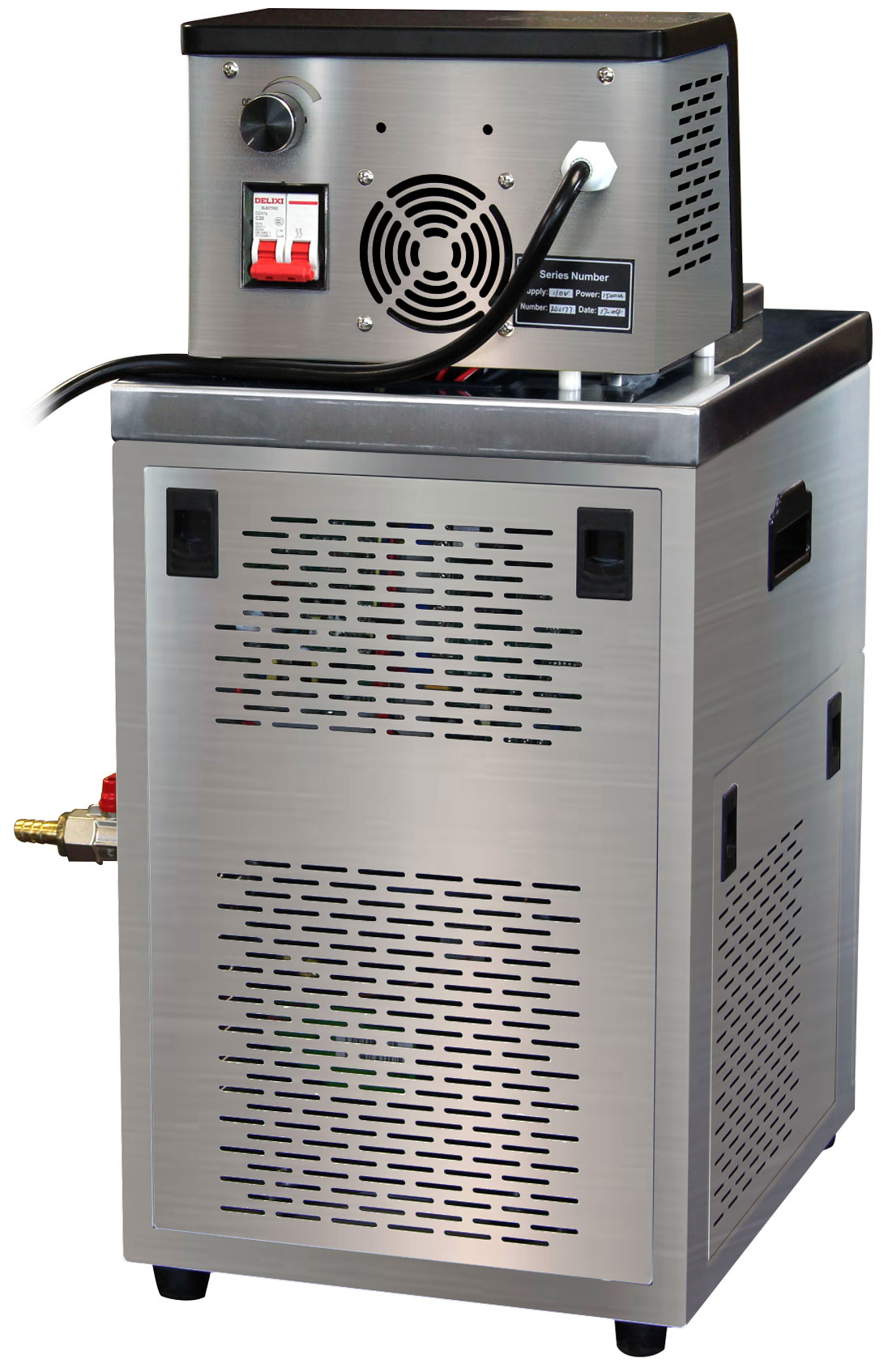

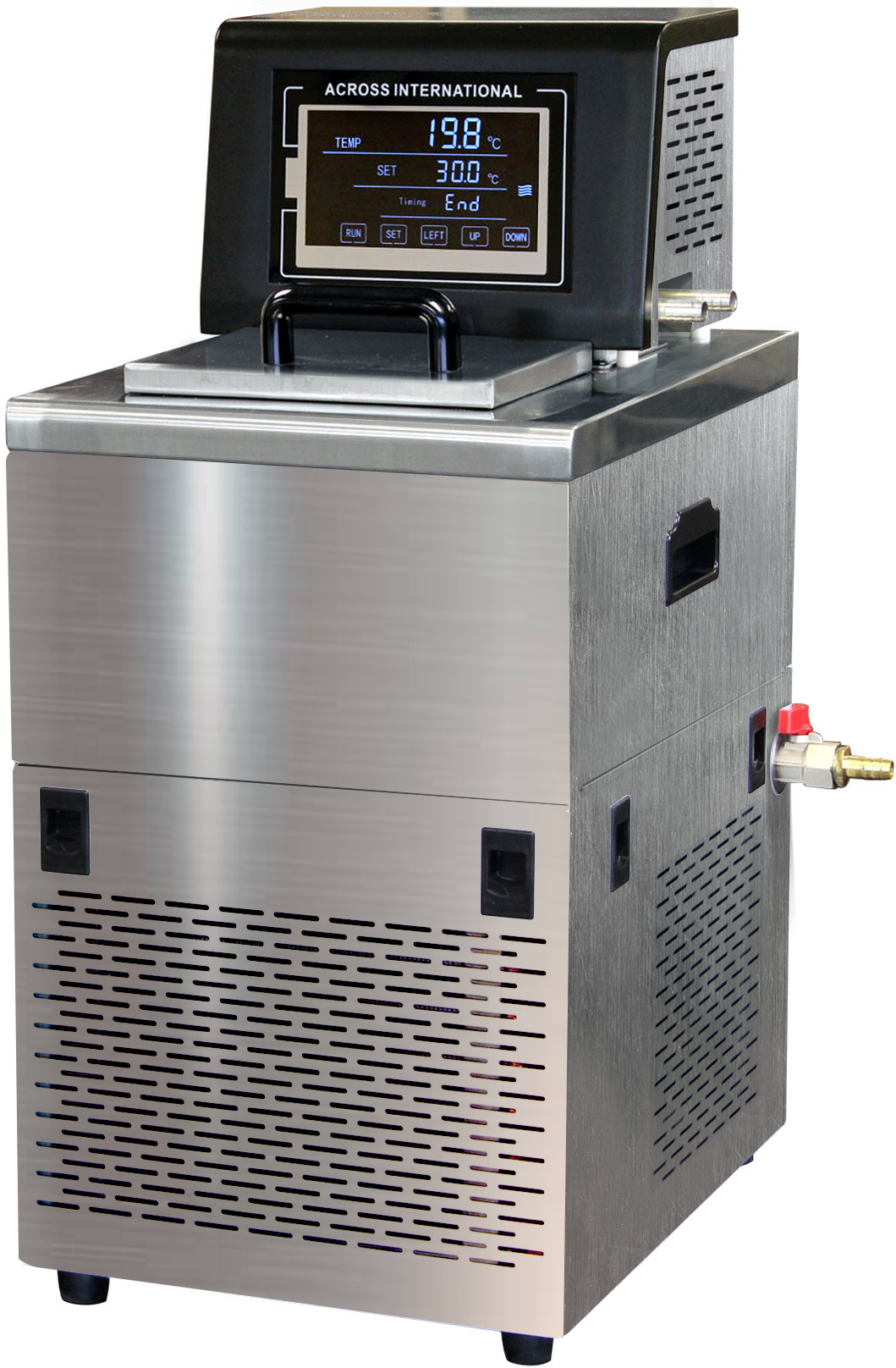

Ai SST -20°C to 99°C 7L Compact Recirculating Chiller
Ai SST -20°C to 99°C 7L Compact Recirculating Chiller - Image 2
Ai SST -20°C to 99°C 7L Compact Recirculating Chiller - Image 3
Ai SST -20°C to 99°C 7L Compact Recirculating Chiller - Image 4

Ai SST -20°C to 99°C 7L Compact Recirculating Chiller

$3,883.12

Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation , laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Product total
Options total
Grand total
SKU: C20-7sst Category: Brand:

Description





Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C20 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while 2nd generation controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

IMPORTANT! -20C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).

C20 recirculating chiller features

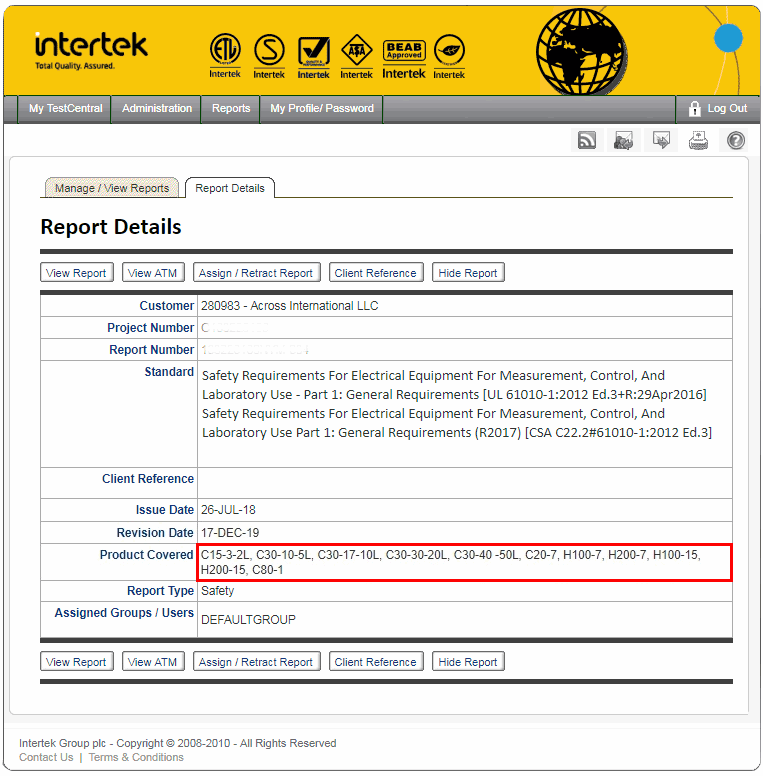

  • ETL tested to UL and CSA standards
  • All stainless steel finish
  • Powerful 2,000 watts heater
  • Adjustable pumping speed up to 20 liters per minute
  • 2nd generation 7″ TFT touch screen controller
  • No dry ice or liquid nitrogen needed
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • Eco-friendly R404A refrigerant
  • Small footprint saves valuable lab space
  • Cost saving as the water consumption is completely eliminated
  • Connection tubing included
  • Recommended for 2L rotary evaporators and 2L-10L distillation systems



Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.

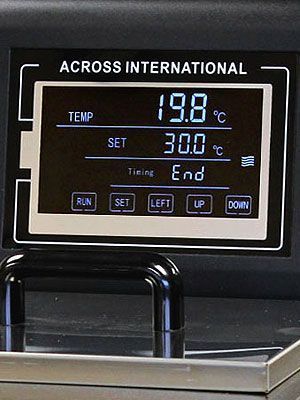

7″ TOUCH SCREEN CONTROLLER





Specifications

Specifications



 Model C20-7sst
 Temperature range -20°C to +99°C (No load)
 Electrical requirements
 110V 60Hz 1-Phase 1,500 watts or
 220V 50/60Hz 1-Phase 2,500 watts
 Compressor Make: SECOP (formerly known as Danfoss), Germany
 Number of compressor: one
 Refrigerant: R404A (190g)
 Cooling capacity:
   420W at 20°C
   410W at 10°C
   390W at 0°C
   350W at -10°C
   300W at -20°C
 Heating capacity 2,000 watts
 Recirculating pump Pumping speed: 20 liters per minute, adjustable
 Maximum head: 16 feet or 5 meters
Maximum pressure: 6.5 psi
 Reservoir

 Dimensions: 8 x 10 x 5.5" (WxDxH)
 Material: Type 304 stainless steel, polished
 Capacity: 7.3 liters or 1.9 gallons
 Chilling fluid connection: 3/8" hose barb x 2
 Chilling fluid drain port: 3/8" hose barb with on/off valve

 Temperature controller

 Type: Digital microprocessor PID controlled
 Display: 7" TFT touch screen
 Display unit: Degree Celsius °C
 Temperature step: 0.1°C
 Temperature accuracy: +/- 2°C
 Temperature range: -20°C to 99°C

 Recommended coolant
 For 50°F/10°C or higher:
            Distilled water
 Between 50°F/10°C and -4°F/-20°C:
            50% ethylene glycol + 50% distilled water
 Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters No
 Unit/shipping dimensions
 12 x 15.5 x 26" / 15 x 20 x 30" (WxDxH)
 Unit/shipping weight 68s / 100s
 Safety Compressor over-temp protection
 Compressor power surge delay protection
 Short circuit and ground protection
 Over-current protection
 Over-temperature protection
 Upper/lower temperature alarm protection
 Compressor delay start protection
 Recommended for
 Ai 2L, 5L or 10L short path distillation systems
 Ai 2L SolventVap rotary evaporators
 Warranty One year
 Compliance UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
Standard Packages

Standard package

 Part description

 Quantity

Part image

 Ai C20-7 -20°C 7L recirculating chiller1 pc
 3/8" insulated chilling fluid tubing5 ft x 2
 1/2" NPT to 3/8" hose barb drain port adapter1 pc
 User's manual1 pc
