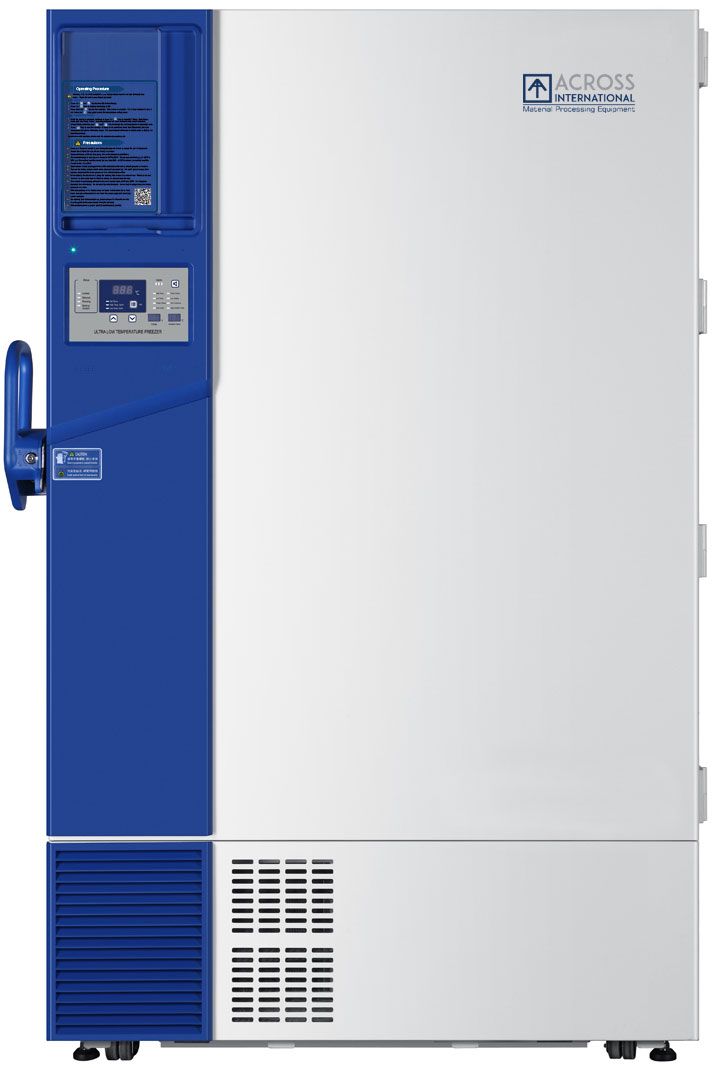

Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible
Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible - Image 2
Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible - Image 3
Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible - Image 4
Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible - Image 5
Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible - Image 6

Ai RapidChill 34 CF -86°C Ultra-Low Freezer UL 220V 50/60Hz Compatible

$23,646.68

The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These ultralow’s are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Product total
Options total
Grand total
SKU: G34he Category: Brand:

Description





The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These ultralow’s are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Features

  • 50/60Hz compatible
  • CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
  • State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
  • Safe, environmentally friendly, energy efficient, and easy-to-acquire HC refrigeration
  • Remote alarm, RS-485, and optional 4-20mA transmitter
  • Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit

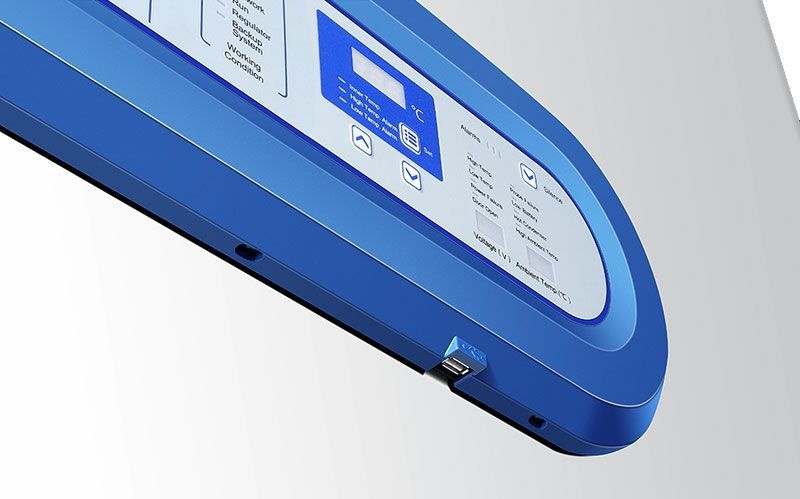

  • Digital temperature display with microprocessor-based temperature controller
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller and alarms
  • Extremely quiet and reliable
  • Compliant to UL 61010-1, CSA C22.2 and Energy Star standards

Important!

  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.











Specifications
Model G34he
Electrical requirements
220V 50/60Hz. 1300 watts, 7 amps
Performance
Temperature range: -40℃ to -86℃
Time from ambient to -86℃: 6 hours
Uniformity: ±3 ℃
Time from -86℃ to -50℃ with the door closed (ambient 25℃): 5 hours
1 min door open recovery time (ambient 25℃, running temp -75℃): 40 mins
Chamber
Chamber dimensions: 40 x 28 x 51.5 inches
Shelf max. weight capacity: 126kg (278lbs)
Max. weight capacity of unit: 504kg (1111 lbs)

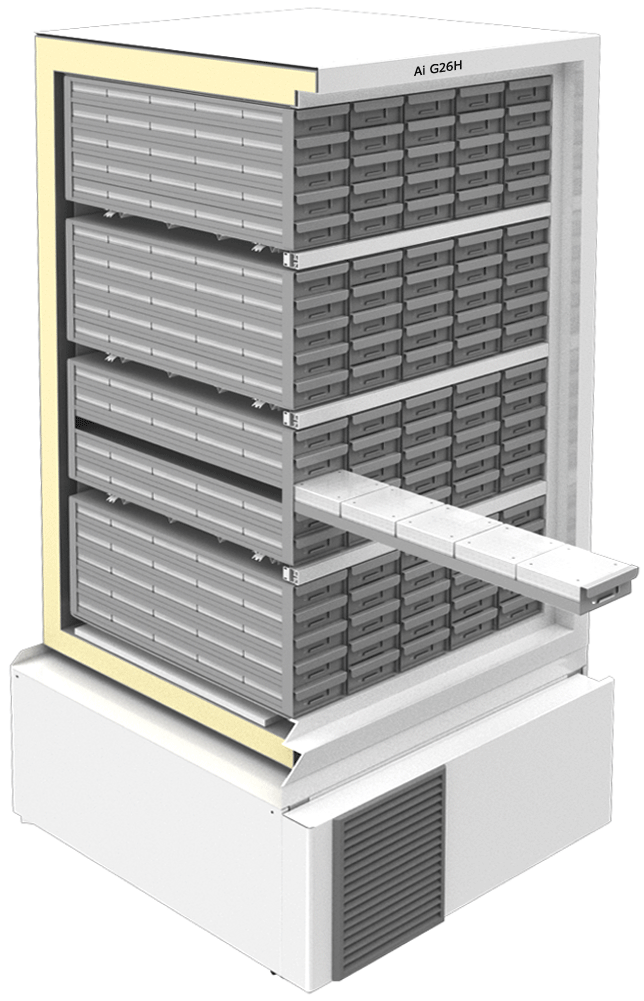

5x5x2" boxes capacity: 700 boxes
Volume
34 cu ft

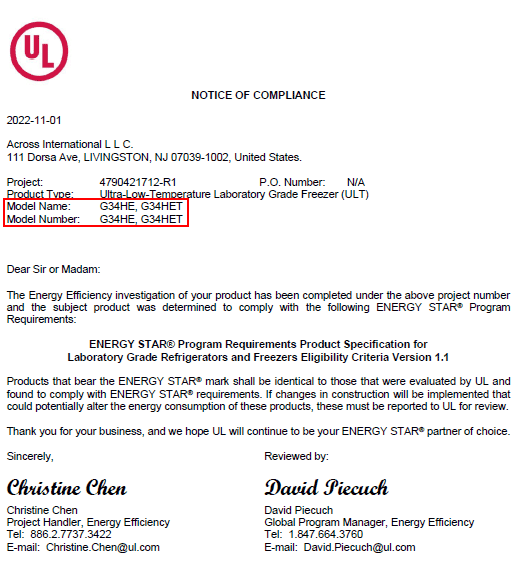

Certificate
UL, Energy Star, CE
Information
Eco-friendly HC refrigerant
Low noise 47 dBA
USB interface, RS485 port
Mobile casters
Optimized insulation with VIP technology
Communication
Standard: RS-485, USB (stores 15 years of data for compliance purpose)
Optional: 4-20mA transmitter
Usage
Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, comparing to Thermo TSX70086A's 0.36 kWh/day/cu-ft
 Working environment - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
 - Humidity: <80% Rh
 - Altitude: < 2000 m / 6561 Ft
 - Stable, well-ventilated platform with no excessive dust
 - Keep freezer at least 12 inches from any walls or ceiling
 - Use dedicated power, do not share outlet
 - Extension power cable should be less than 10 feet is required
 - Freezer and power outlet should be grounded properly
 - Avoid direct sunlight, water spill and do NOT use freezer outdoor
 - Clean condenser fins and remove frost inside chamber at least once a month
 - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
    24 hours before turning the unit on for the first time.
 Unit/shipping weight & dimensions
Unit: 990 Lbs, 51 x 39.5 x 78 inches
Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches
Safety
  • High/low-temperature alarms
  • Hot condenser alarm
  • Power failure
  • High/low voltage
  • Sensor error
  • Low battery
  • High ambient temperature
  • Door ajar
 Warranty 2-year full service, 5-year parts, 10-year compressor
Standard Packages

Part description

 Quantity

Part image

Ai G34he -86°C ultra-low upright freezer
1 pc

 Ice scraper1 pc

 Door key
2 pcs
 Brackets1 set
 User's manual1 pc
