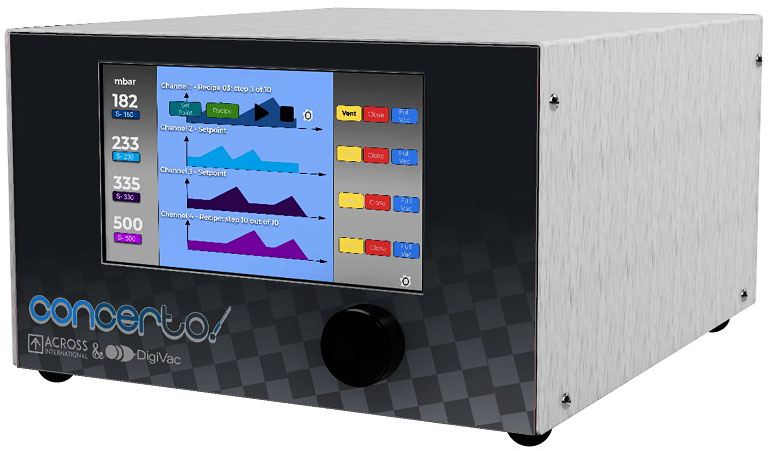

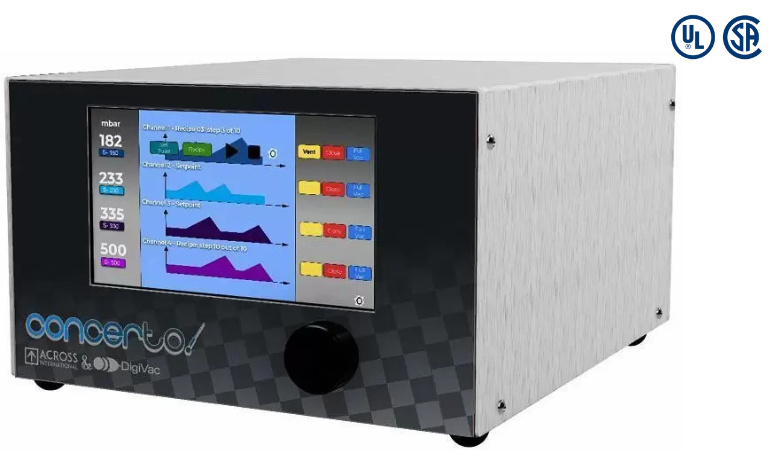

Ai-DigiVac Concerto 4-Channel Vacuum & Pressure Controller – UL/CSA
$7,585.31
Another innovation from Across International and DigiVac that has just won the 2020 PITTCON TODAY Excellent Award , Silver, for Excellence in Instrumentation, the Concerto 4-channcel rotary evaporator controller. Control Your evaporation process like a symphony! Control up to 4 rotary evaporators or chambers with a single vacuum pump. Fine tune your evaporation process with Concerto!
Description
Another innovation from Across International and DigiVac that has just won the 2020 PITTCON TODAY Excellent Award, Silver, for Excellence in Instrumentation, the Concerto 4-channcel rotary evaporator controller. Control Your evaporation process like a symphony! Control up to 4 rotary evaporators or chambers with a single vacuum pump. Fine tune your evaporation process with Concerto!
SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS
- Up to 4 chamber control with only 1 high-end vacuum pump for rotary evaporators up to 100 Liters and Falling Film Systems
- Fine control of target vapor pressure for more precise compound separation through distillation
- Enables using reliable and long lasting rotary vane oil pumps & dry scroll pumps in applications where diaphragm pumps were previously required
Keeps vacuum pumps near their base pressure resulting in greater longevity
PRECISION CONTROL & INTUITIVE DESIGN
- Ease of use through precise automated control with programmable recipes and graphing of vacuum levels
- Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
- The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing
- Numerical readings right on the LCD screen and one touch start, stop and release buttons
FEATURES
- Silver Innovation Award Winner for Instrumentation at PittCon 2020!
- GO BIG OR GO HOME & MAXIMIZE THROUGHPUT: Largest flow paths available to insure maximum flow for faster evaporation
- The rotary evaporator controller is particularly useful when you are looking to maintain pressure at a certain level as needed for botanical processing and rotary evaporation. Mounting is bench top.
- Simplify your lab & control more with less
- Up to 4 chamber control with only 1 high-end vacuum pump for rotary evaporators up to 100 Liters and Falling Film Systems
- Fine control of target vapor pressure for more precise compound separation through distillation
- Enables using reliable and long lasting rotary vane oil pumps and dry scroll pumps in applications where diaphragm
- pumps were previously required
- Keeps vacuum pumps near their base pressure resulting in greater longevity
- Go big or go home and maximize throughput
- Largest flow paths available to insure maximum flow for faster evaporation
- Precision control and intuitive design
- Ease of use through precise automated control with programmable recipes and graphing of vacuum levels
- Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
- The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing
- Numerical readings right on the LCD screen and one touch start, stop and release buttons
- Made in the USA
Specifications
| Model | Concerto |
| Power | Auto sensing 110V/220V 50/60Hz |
| Performance | Range: 2 to 760 Torr Accuracy: ±5% of reading Integral sensor accuracy: ±2 Torr Integral sensor range: 0.5 to 775 Torr Display units: Torr, mTorr, mBar, kPa Time to convergence within 5% after disturbance: <30 seconds |

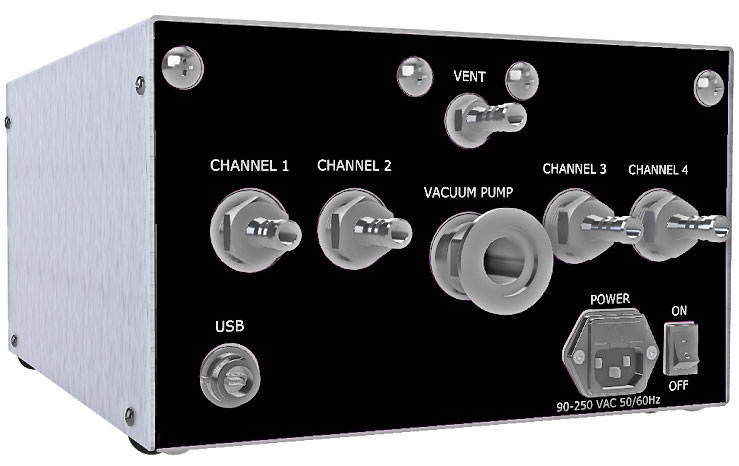

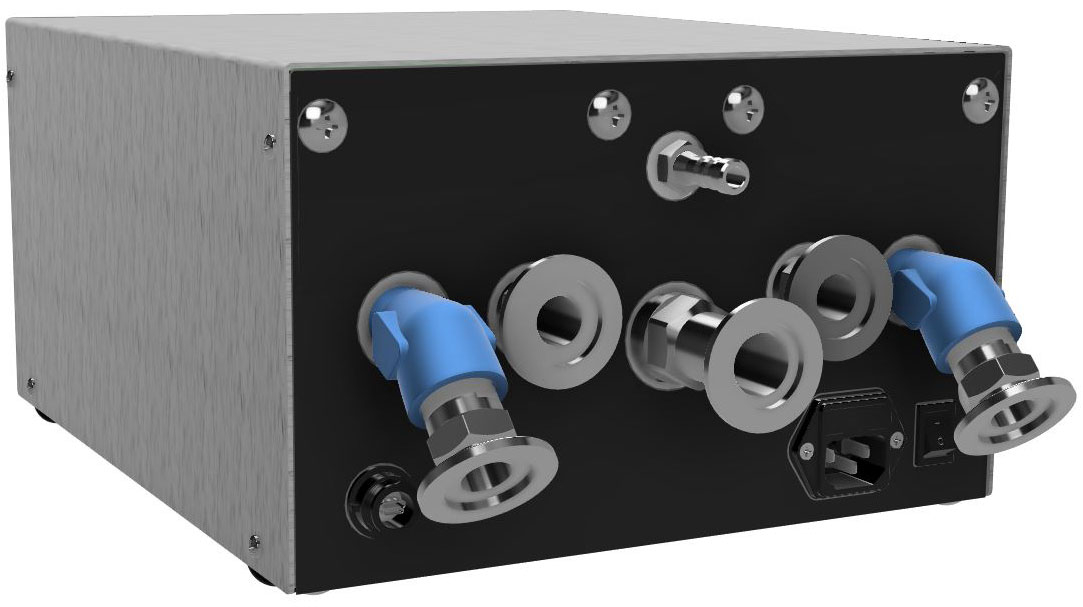

| Construction | Inlet: 3/8" hose barb x 4 or KF25 x 4 outlet: KF25 x 1 Vacuum path orifice: minimum 12.5 mm Minimum bleed valve orifice: 10 mm Valves: wetted materials aluminum and Viton Integral sensor: isolated Piezo sensor | SEN-775i Integral sensor wetted materials: 316 stainless steel, isolated Set-points: quickly dial in set-point with control knob Vacuum fittings: staggered fittings on rear to enable either KF25 vacuum fittings or barb for rotovaps |
| Dual vacuum control | By both proportional throttle and bleed (vent to atmosphere) |
| 4 channels | Individually control vacuum and bleed valves for each of 4 channel with dedicated isolated sensors |
| Output | Ability to be controlled remotely via USB for integration into larger systems |

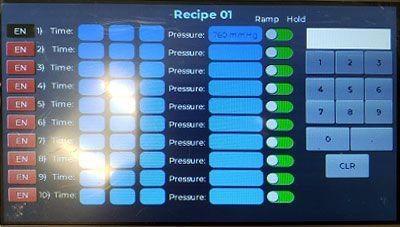

| Recipes | Program ramps and holds with different durations and vacuum levels |
| Unit weight | 25 Lb |

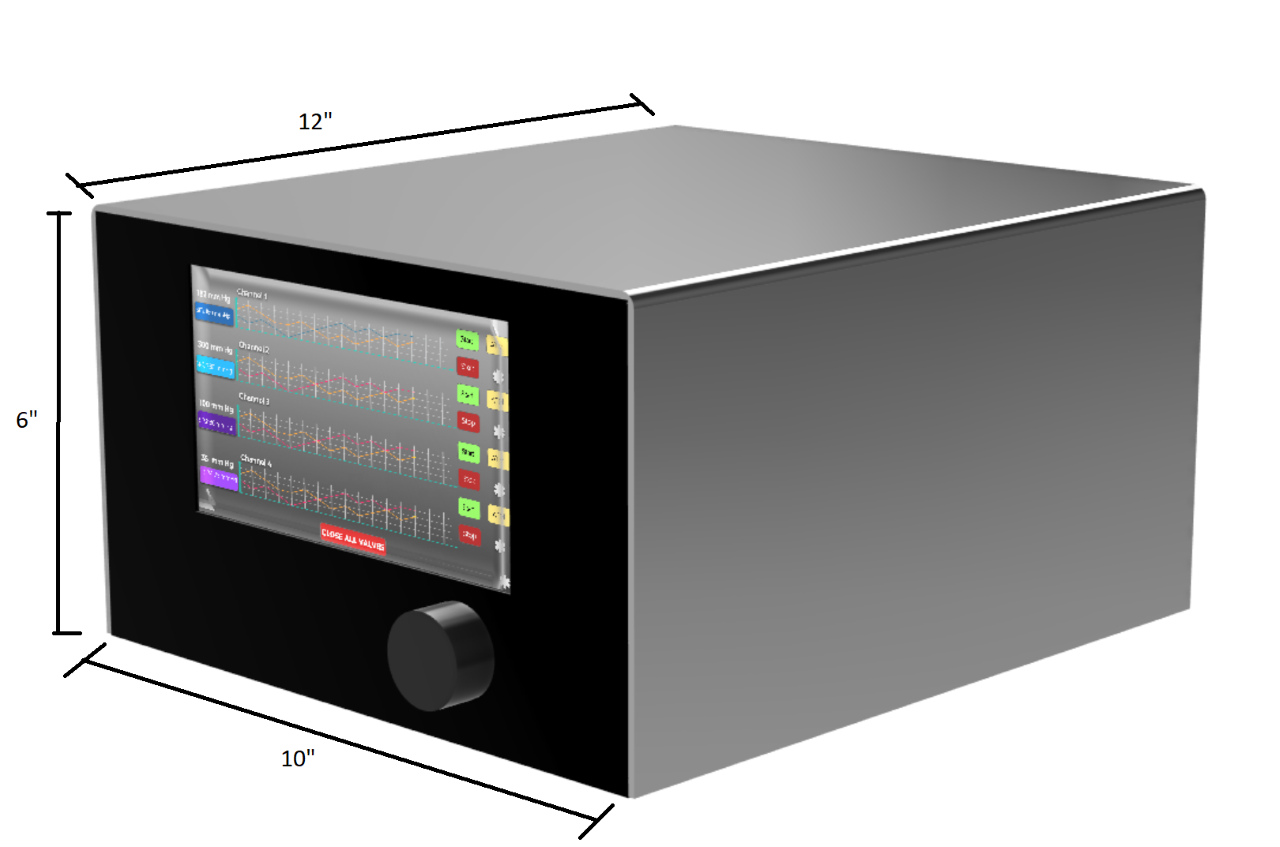

| Dimensions | Unit: 10.25 x 12 x 5.25", shipping: 16 x 16 x 12 (WxDxH) |
| Compliance | RoHS & built to UL/CSA/CE standards (NOT certified yet) |
| Warranty | One year |
