Ai 6″ Glass Turnkey Thin Film Distillation System ETL
$160,043.08
PRICING INCLUDES ON-SITE INSTALLATION WITHIN CONTIGUOUS US.
Description
PRICING INCLUDES ON-SITE INSTALLATION WITHIN CONTIGUOUS US.

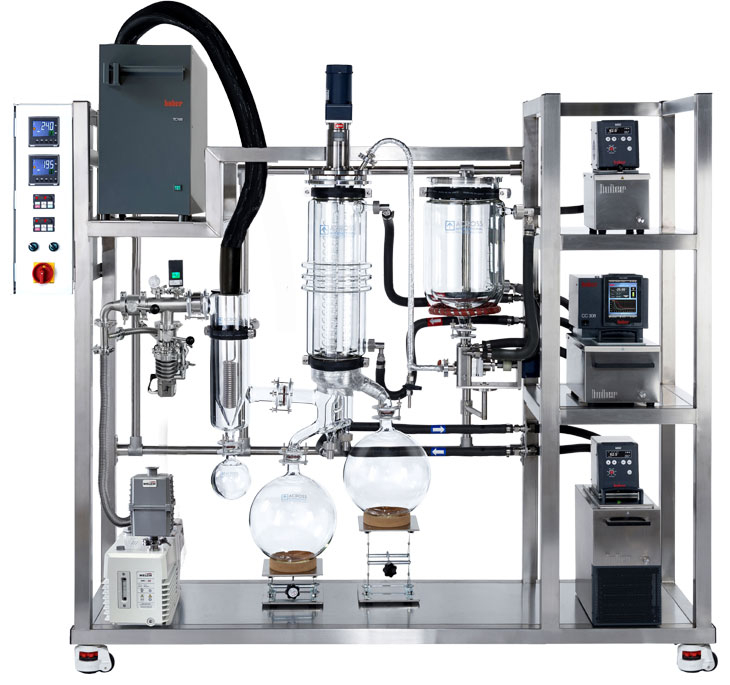

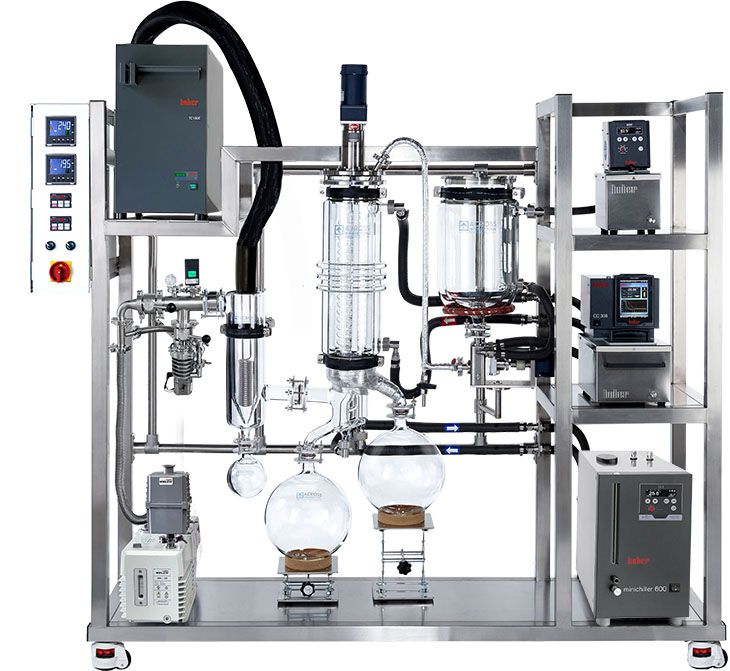

Ai GLASS THIN FILM DISTILLATION SYSTEM FEATURES
- High precision PTFE rollers (or blades) and inner glass surface allow a complete and uniform thin film on the heated surface, and prevent process residue
- Pre-installed cooling/heating tubing with fluid direction labels and M16 ports
- Low-placed feeding flask for ease of operation
- Driving motor with magnetic coupling sealing ensures a high vacuum level
- Constructed with high borosilicate glass 3.3, stainless steel, and Viton gaskets for ultimate corrosion resistance
- A transparent glass system allows you to see through all processes
- Auto delay safety circuit for diffusion pump cooling
- Heavy-duty stainless steel frame with swivel casters and leveling feet for mobility and stability
- Agilent diffusion pump with oil level indicator
- PolyScience immersion cooler down to -80°C (no dry ice needed)
- Installation included in the price within contiguous 48 US states
- Cold Traps are only suitable for use with dry ice or a cold finger chiller such as an IP-80 or TC100/TC100E. Always wear proper PPE when handling dry ice.

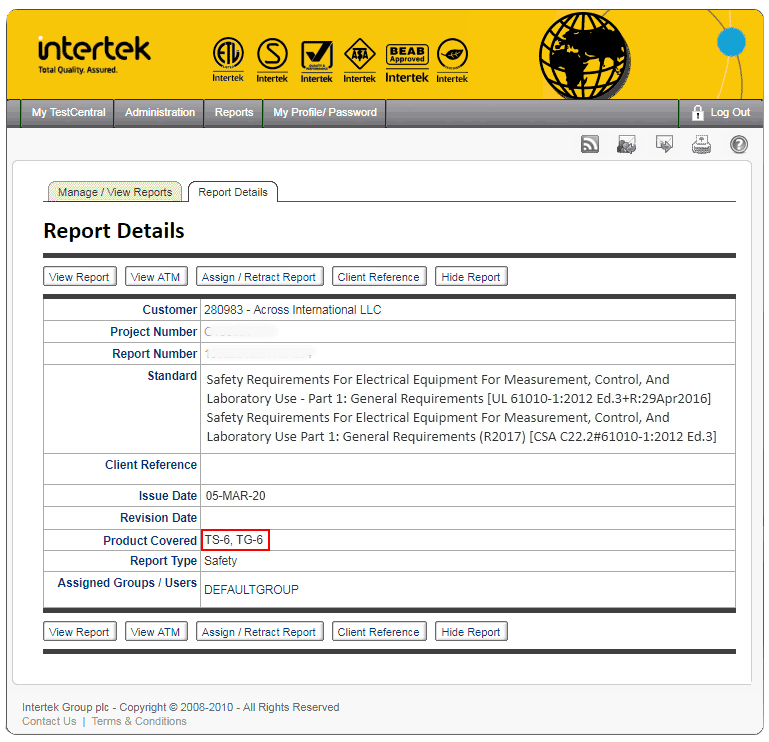

- ETL tested to UL and CSA standards
CAUTION!
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer’s recommended fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion
- Always keep system vacuum passage or drain valve open when heating up circulation jackets
- Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits

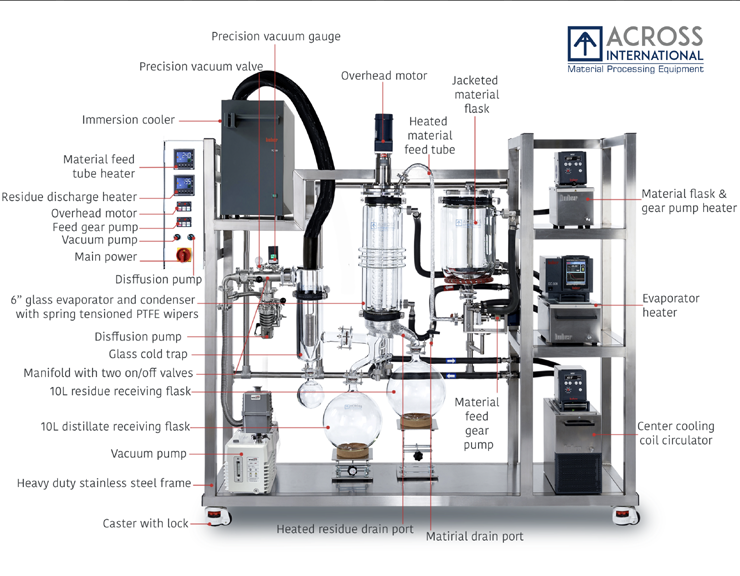

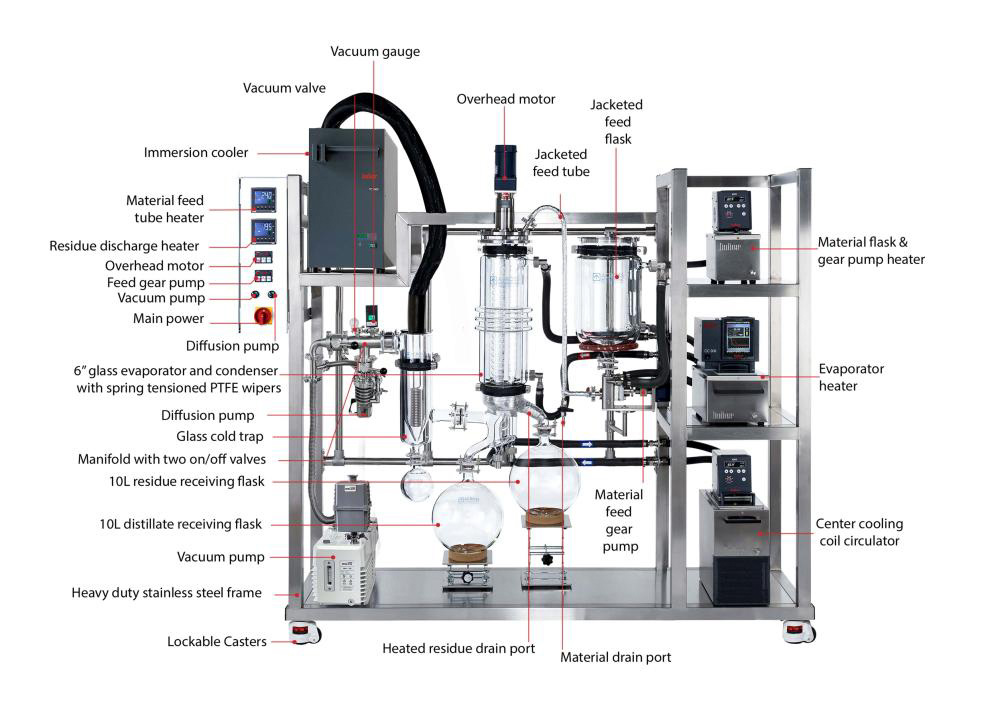

SPECIFICATIONS
| Model | TG-6 |
| Throughput | 2L to 5L per hour (base on processes and material fed) |
| Main Evaporator | Evaporating area: approximately 2,500 cm^2 Material: borosilicate glass Glass jacket volume: approx. 3L Heated circulator: 3kW heater, 300°C maximum operating temperature |

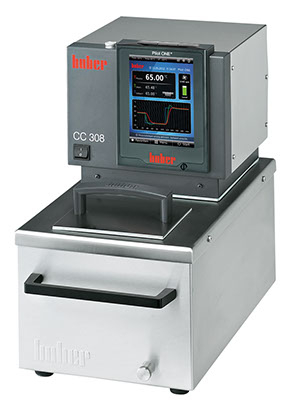

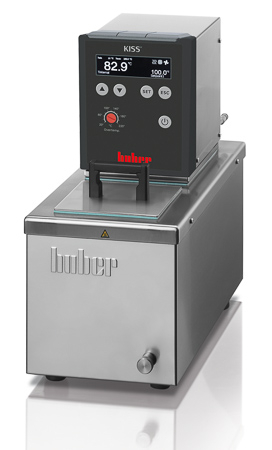

| Main Condenser | Condensing area: approximately 4,000 cm2 Material: borosilicate glass Style: coil Glass jacket volume: approx. 1.5L Cooling/heated circulator: 2kW heater, -25°C to 200°C operating temperature |
| Wiping System | Style: roller or blade Roller/blade material: PTFE Driving motor: speed-adjustable with magnetic coupling Motor controller: DELTA |

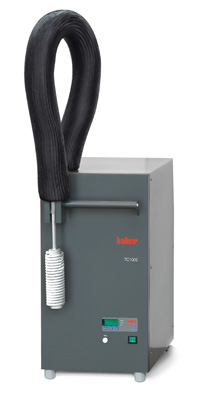

Cold Trap | Material: borosilicate glass with polyethylene lid Depth: 17" Quantity: one Receiving flask volume: 1L Immersion cooler: Huber -100°C TC100 |
Feeding System | Gear pump x 1 Speed: 20L/hour max. (2.4 mL/turn, 135 turn/minute), adjustable Material: stainless steel body with Viton gaskets Style: jacketed, heated Recommended circulating thermal fluid temperature: 80°C to 120°C Flask: glass, 10L, jacketed, refillable during operation, with lid Flask jacket volume: approx. 4L Heating controller: OMRON Heated circulator: 2kW heater, 200°C maximum operating temperature Construction: jacketed, heated, insulated stainless steel tubing |
Distillate Discharge | Receiving flask volume: 10L, glass Drain passage: non-heated Sealing gasket: Viton |
Residue Discharge | Receiving flask volume: 10L, glass Drain passage: heated and insulated Heating: heated tape with insulation Heating controller: Omron Sealing gasket: Viton Recommended circulating thermal fluid temperature: 80°C to 120°C |

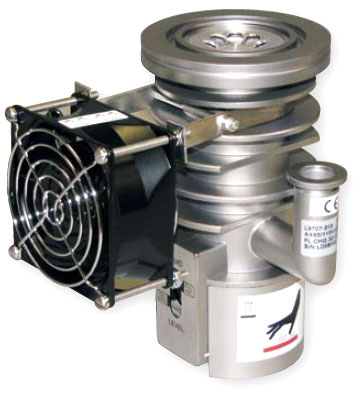

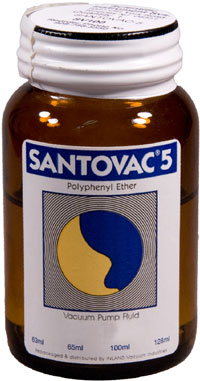

Vacuum System | Vacuum gauge: Agilent gauge with LCD display for high vacuum application Vacuum pump: Welch CVRpro 30 with oil mist filter Diffusion pump: Agilent AX-65 (do NOT fill more than 30mL diffusion pump oil at a time) |
Sealing gasket | All food-grade Viton |
Electrical Control Cabinet | Wiper motor controller x 1 Gear pump controller x 1 Feeding tubing heater controller x 1 Residue discharge heater controller x 1 Main power switch x 1 Vacuum pump switch x 1 Diffusion pump switch x 1 |
| Main Mounting Frame | Heavy-duty stainless steel, mounted on four swivel casters with leveling feet |
| Main Power | 230V +/-5V, 1~phase 60Hz (50Hz power for Europe and Asia available upon request) |
| Unit dimensions, weight | 86x25x78", 1150lbs |

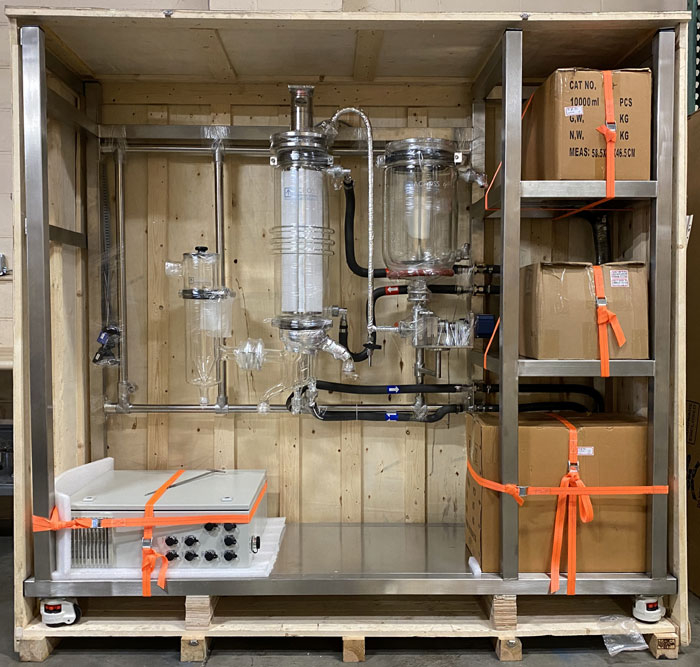

| Shipping dimensions, weight | 1 Crate: 97x31x81", 1197 lbs 1 Pallet: 40x48x42", 450 lbs |
| Compliance | ETL tested to UL and CSA standards |
